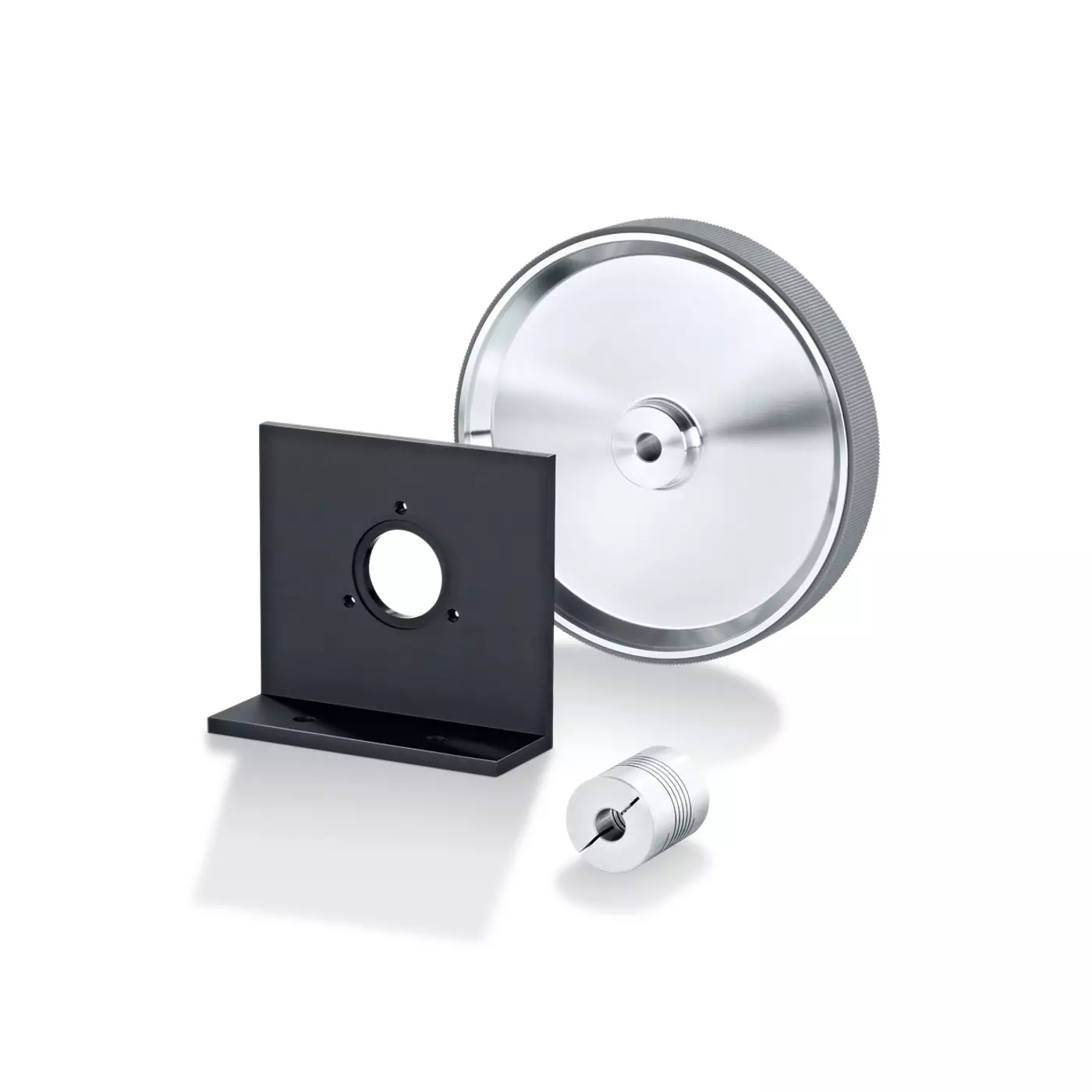

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Couplings and bearings
Couplings and bearings for encoders ensure backlash-free rotation transmission, are vibration-isolating and compensate alignment errors. Moreover, spring disc couplings have an electrically isolating effect.
Features & Benefits
- Clearance-free transmission of rotary movements
- Efficient vibration damping
- Excellent compensation of alignment errors
- Low rigidity of the torsion spring
- Small restoring forces
Additional Notes
| MPN | Product designation | Inside diameter A1 | Inside diameter A2 | Material |
|---|---|---|---|---|
| E60022 | Flexible coupling with adjusting screw connection | 10 mm | 10 mm | aluminum |
| E60027 | Flexible coupling with adjusting screw connection | 6 mm | 8 mm | aluminum |
| E60028 | Flexible coupling with adjusting screw connection | 6 mm | 10 mm | aluminum |
| E60062 | Flexible coupling with adjusting screw connection | 4 mm | 6 mm | aluminum |
| E60063 | Flexible coupling with adjusting screw connection | 6 mm | 6 mm | aluminum |
| E60064 | Flexible coupling with clamp connection | 6 mm | 6 mm | aluminum |
| E60065 | Flexible coupling with clamp connection | 6 mm | 6 mm | aluminum |
| E60066 | Flexible coupling with clamp connection | 6 mm | 10 mm | aluminum |
| E60067 | Flexible coupling with clamp connection | 10 mm | 10 mm | aluminum |
| E60105 | Flexible coupling with clamp connection | 8 mm | 10 mm | aluminum |
| E60116 | Spring disc coupling electrically isolating | 6 mm | 8 mm | diecast zinc; PA |
| E60117 | Spring disc coupling electrically isolating | 6 mm | 10 mm | diecast zinc; PA |
| E60118 | Spring disc coupling electrically isolating | 10 mm | 10 mm | aluminum; PA |
| E60120 | Flexible coupling with clamp connection | 6 mm | 8 mm | aluminum |
| E60121 | Spring disc coupling electrically isolating | 6 mm | 6 mm | aluminum; PA |
| E60193 | Plastic beam coupling with stainless steel hub | 10 mm | 10 mm | PA 6.6; stainless steel (1.4404 / 316L) |
| E60204 | Stator coupling | stainless steel (1.4310 / 301) | ||
| E60205 | Stator coupling | stainless steel (1.4310 / 301) | ||
| E60206 | Flexible coupling with clamp connection | 6 mm | 6,35 mm / 1/4" / 1/4 inch mm | aluminum |
| E60207 | Flexible coupling with clamp connection | 6 mm | 9,525 mm / 3/8" / 3/8 inch mm | aluminum |
| E60208 | Flexible coupling with clamp connection | 10 mm | 12,7 mm / 1/2" / 1/2 inch mm | aluminum |
| E60209 | Flexible coupling with clamp connection | 10 mm | 9,525 mm / 3/8" / 3/8 inch mm | aluminum |
| E61432 | Flexible coupling with adjusting screw connection | 6 mm | 6 mm | shaft adapter: stainless steel (1.4305 / 303); double-loop coupling: PU |
| E61433 | Flexible coupling with adjusting screw connection | 6 mm | 10 mm | shaft adapter: stainless steel (1.4305 / 303); double-loop coupling: PU |
| E61434 | Flexible coupling with adjusting screw connection | 10 mm | 10 mm | shaft adapter: stainless steel (1.4305 / 303); double-loop coupling: PU |
| E61435 | Flexible coupling with adjusting screw connection | 6 mm | 6 mm | shaft adapter: stainless steel (1.4305 / 303); double-loop coupling: PU |
| E61436 | Flexible coupling with adjusting screw connection | 6 mm | 10 mm | shaft adapter: stainless steel (1.4305 / 303); double-loop coupling: PU |
| E61437 | Flexible coupling with adjusting screw connection | 10 mm | 10 mm | shaft adapter: stainless steel (1.4305 / 303); double-loop coupling: PU |
