Mounting sets for valve actuators

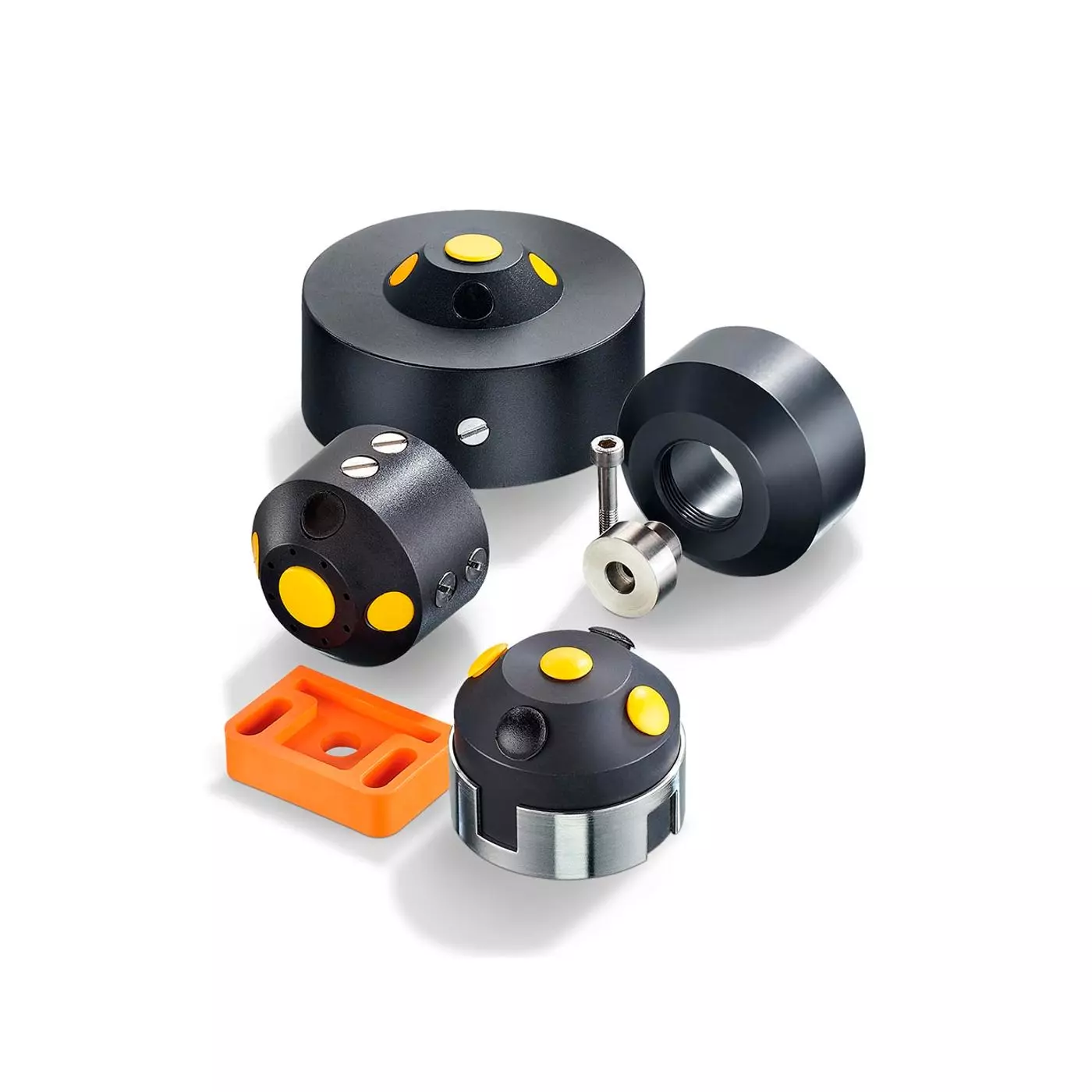

Spacers are used for height compensation between target pucks and dual sensors.
Features & Benefits
- Spacers for compensation between target pucks and dual sensor
- Complete mounting sets for drives from different manufacturers
Additional Notes
| MPN | Product designation | Shaft height for valve drive | Suitable for shaft diameters | Hole spacing for mounting bracket | Dimensions |
|---|---|---|---|---|---|
| E10101 | Cable gland | 1/2" NPT mm | |||
| E10579 | Spacer | 10 x 40 x 26 mm | |||
| E10585 | Spacer | 5 x 40 x 26 mm | |||
| E11270 | Cable gland | M20 x 1.5 mm | |||
| E11310 | reinforcement bracket | 1 x 39.5 x 17.5 mm | |||
| E11984 | protective housing | 42 x 71 x 67 mm | |||
| E12084 | Spacer for ifm puck 10 mm | 10 x 27 x 17 mm | |||
| E12208 | Cable gland | M20 x 1.5 mm | |||
| E12209 | Protective cap | M20 x 1.5 mm | |||
| E12212 | Plug for covering the oblong holes | 9 x 17 x 10 mm | |||
| E12526 | Spacer | ||||
| E12569 | Mounting plate | 30 mm | < 38 mm | 80 x 30 mm | 10 x 95 x 50 mm |
| E12573 | Mounting plate | 30 mm | < 38 mm | 130 x 30 mm | 10 x 145 x 50 mm |
| E12628 | Assembly angle | 30 / 40 / 50 mm | > 38 mm | 80 x 30 / 130 x 30 mm | |
| E12674 | Assembly angle | 20 / 30 / 40 mm | > 38 mm | 80 x 30 / 130 x 30 mm | |
| E12693 | Mounting plate | ||||
| E12752 | puck mounting screw | M6 x 1 / L = 35 mm | |||
| E21010 | Cable gland | M20 x 1.5 mm |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110090010 | ifm Accessories - for valve feedback systems - Target pucks | $0.01 | |
| IFM-110090015 | ifm Accessories - for valve feedback systems - Mounting brackets for manual valves and ball valves | $0.01 | |
| IFM-110090030 | ifm Accessories - for valve feedback systems - Mounting adapters for rising stem valves | $0.01 |
