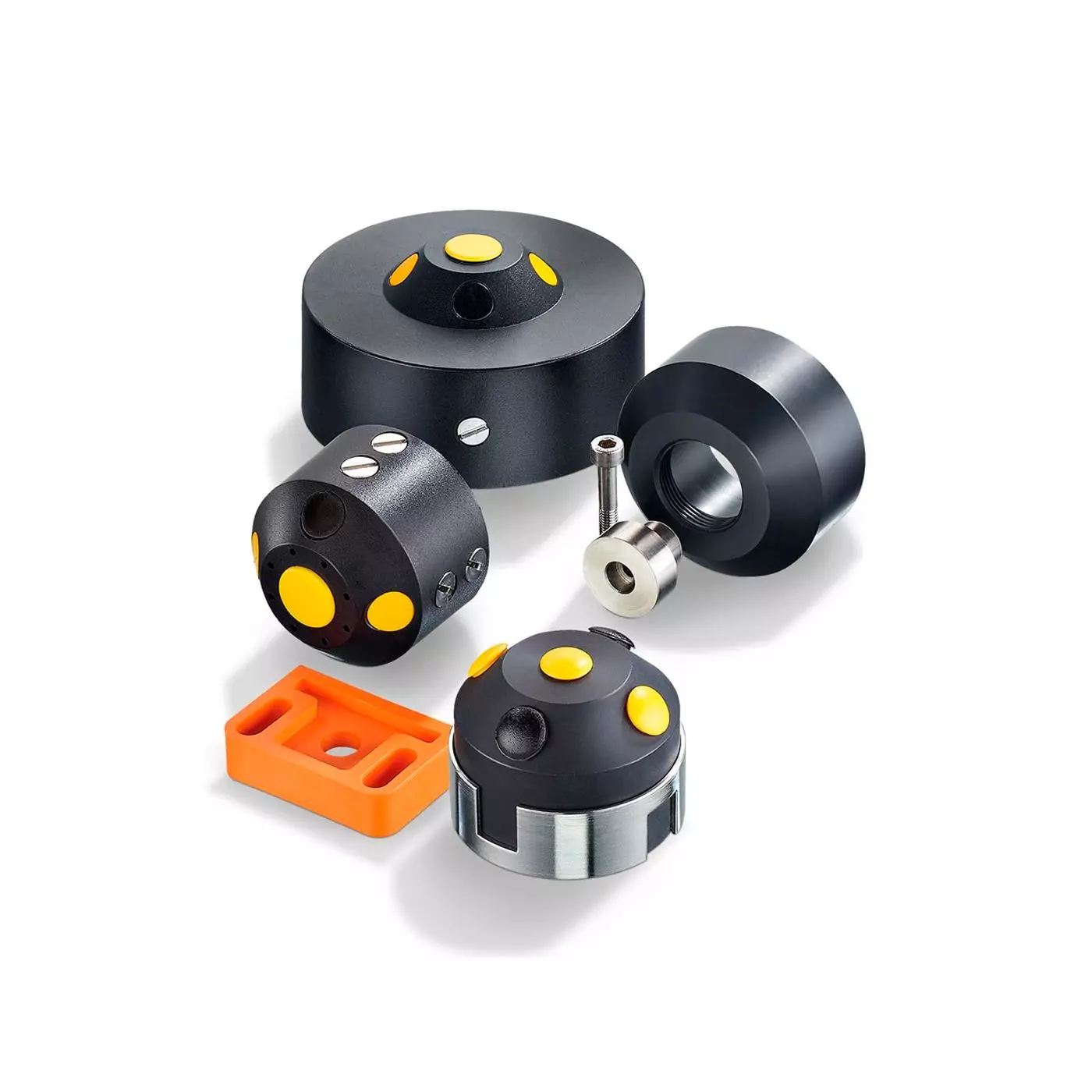

End position feedback for manual valves and ball valves
With this mounting kit manual valves and ball valves can be equipped with dual inductive sensors and target pucks. Any dual sensor with a target puck which is suitable for a 80 x 30 mm actuator interface to VDI/VDE 3845 can be used. This ensures reliable feedback of the end positions. The mounting kit can be used at ambient temperatures from -30 to +80 °C.
Versatile and flexible The plastic upper part allows operation in hazardous areas. The lower part fits on many ISO flange valves (DIN EN ISO 5211) and is connected to the valve shaft by a shaft extension. Stainless steel components guarantee increased service life.
Features & Benefits
- For the reliable limit position feedback of manual valves and ball valves
- Easy mounting and stable fixing
- Height-adjustable for flexibility
- Robust stainless steel design for use in harsh industrial environments
- For applications in hazardous areas
Additional Notes
MPN | Product designation | Top flange diameter | ISO top flange type | Shaft extension | Material |
---|---|---|---|---|---|
E12519 | Mounting set | 42 mm | F04 | M5 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12520 | Mounting set | 50 mm | F05 | M5 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12521 | Mounting set | 50 mm | F05 | M6 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12522 | Mounting set | 70 mm | F07 | M6 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12523 | Mounting set | 70 mm | F07 | M8 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12524 | Mounting set | 102 mm | F10 | M8 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12588 | Mounting set | 36 mm | F03 | M4 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12589 | Mounting set | 50 mm | F05 | M4 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12590 | Mounting set | 125 mm | F12 | M10 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12591 | Mounting set | 140 mm | F14 | M10 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
E12592 | Mounting set | 165 mm | F16 | M10 | Mounting plate: plastics; metal parts: stainless steel (1.4301 / 304) |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
IFM-110090010 | ifm Accessories - for valve feedback systems - Target pucks | $0.01 | |
IFM-110090020 | ifm Accessories - for valve feedback systems - Mounting accessories for valve actuators | $0.01 | |
IFM-110090030 | ifm Accessories - for valve feedback systems - Mounting adapters for rising stem valves | $0.01 |
