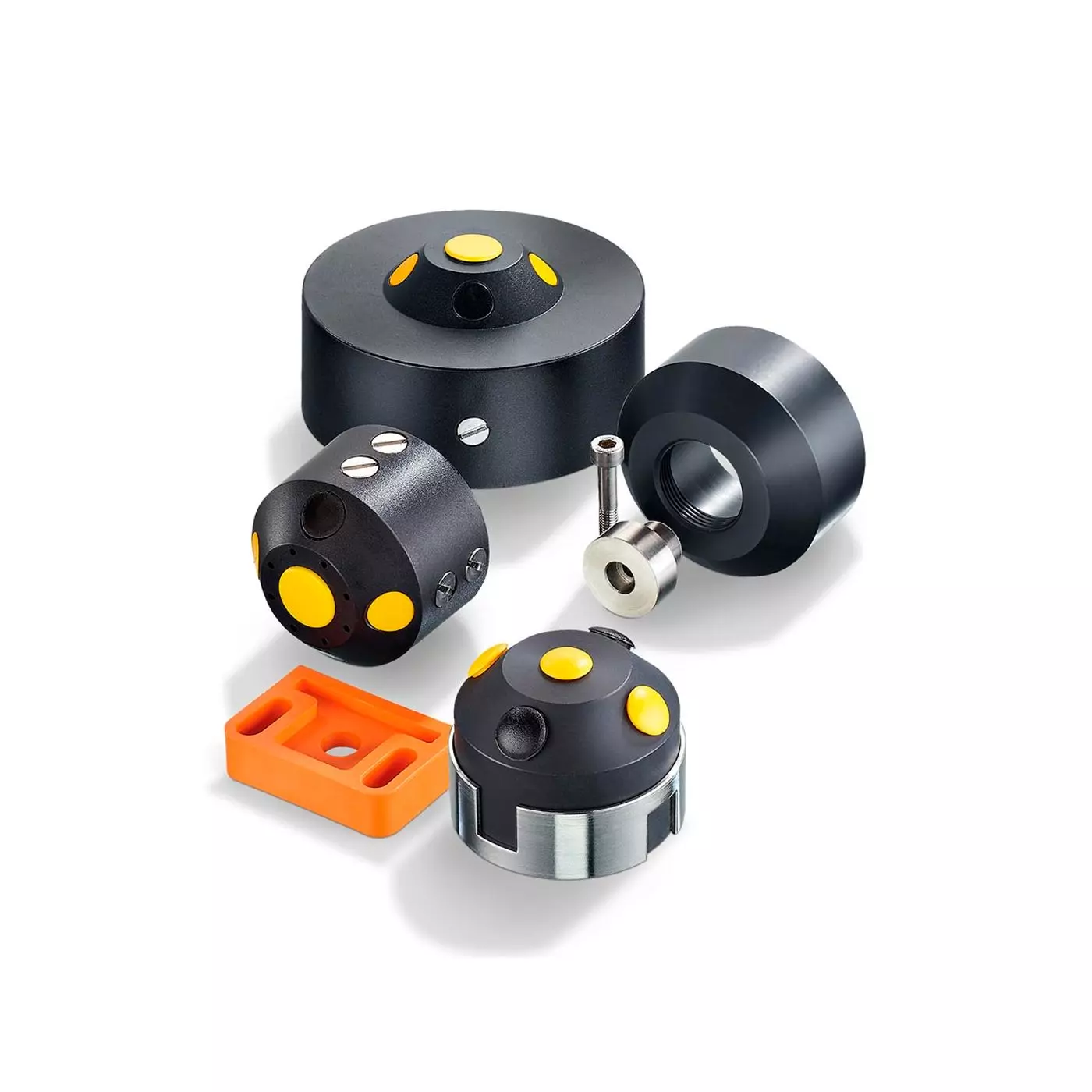

Target pucks
A round target (also known as a 'puck') is used for reliable position feedback of pneumatic quarter-turn actuators or valve plates. The puck is mounted directly on the actuator shaft. It is equipped with two metal screws that are mounted at different heights and offset by 90°. A dual inductive sensor with two integral sensors detects the upper or the lower metal screw and, thus, the "open" or "closed" position of the valve. The system operates without contact or wear and is self-cleaning. It is virtually resistant to external influence and insensitive to mechanical stress such as vibration and shock.
Features & Benefits
- Easy mounting directly on the shaft of the actuator
- Various diameters and heights for application flexibility
- Versions with inverted function
- Housing colors in red, black, and blue
- High shock and vibration resistance
Additional Notes
MPN | Product designation | Material |
---|---|---|
E10661 | Target puck | Target puck: PVC; screws: stainless steel |
E11243 | Mounting kit for limit position feedback | |
E12516 | Target puck | Target puck: PA 6 black; metal parts: stainless steel |
E12517 | Target puck | Target puck: PA 6 black; metal parts: stainless steel |
E12724 | Target puck | Target puck: PA 6 black; metal parts: stainless steel; Position indicator: PA 6 yellow |
E12725 | Target puck | Target puck: PA 6 black; metal parts: stainless steel; Position indicator: PA 6 yellow |
E12726 | Position indicator | PA 6 yellow |
E17002 | Target puck | Target puck: PVC; Pointer: PVC; screws: stainless steel (1.4404 / 316L); washers: stainless steel (1.4404 / 316L); set screw: stainless steel (1.4305 / 303); locking pin: stainless steel (1.4301 / 304) |
E17110 | Target puck | Target puck: PVC; screws: stainless steel |
E17118 | Target puck | Target puck: PBT; screws: stainless steel |
E17119 | Target puck | Target puck: PVC; screws: stainless steel (1.4571/316Ti ) |
E17148 | Target puck | Target puck: PVC; screws: stainless steel |
E17295 | direction indicator black | POM |
E17296 | direction indicator yellow | POM |
E17320 | Target puck | Target puck: PA 6 black; screws: stainless steel (1.4302) |
E17322 | Target puck | Target puck: PA 6 blue; screws: stainless steel (1.4302) |
E17323 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
E17324 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
E17326 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
E17327 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
E17328 | Target puck | Target puck: PA 6; screws: stainless steel (1.4302) |
UV0019 | Target puck | Target puck: PA 6 black; metal parts: stainless steel |
UV0020 | Target puck | Target puck: PA 6 black; metal parts: stainless steel; spacers: PA 6 black |
UV0021 | Target puck | Target puck: PA 6 black; metal parts: stainless steel |
UV0022 | Target puck | Target puck: PA 6 black; metal parts: stainless steel; spacers: PA 6 black |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
IFM-110090015 | ifm Accessories - for valve feedback systems - Mounting brackets for manual valves and ball valves | $0.01 | |
IFM-110090020 | ifm Accessories - for valve feedback systems - Mounting accessories for valve actuators | $0.01 | |
IFM-110090030 | ifm Accessories - for valve feedback systems - Mounting adapters for rising stem valves | $0.01 |
