Headline

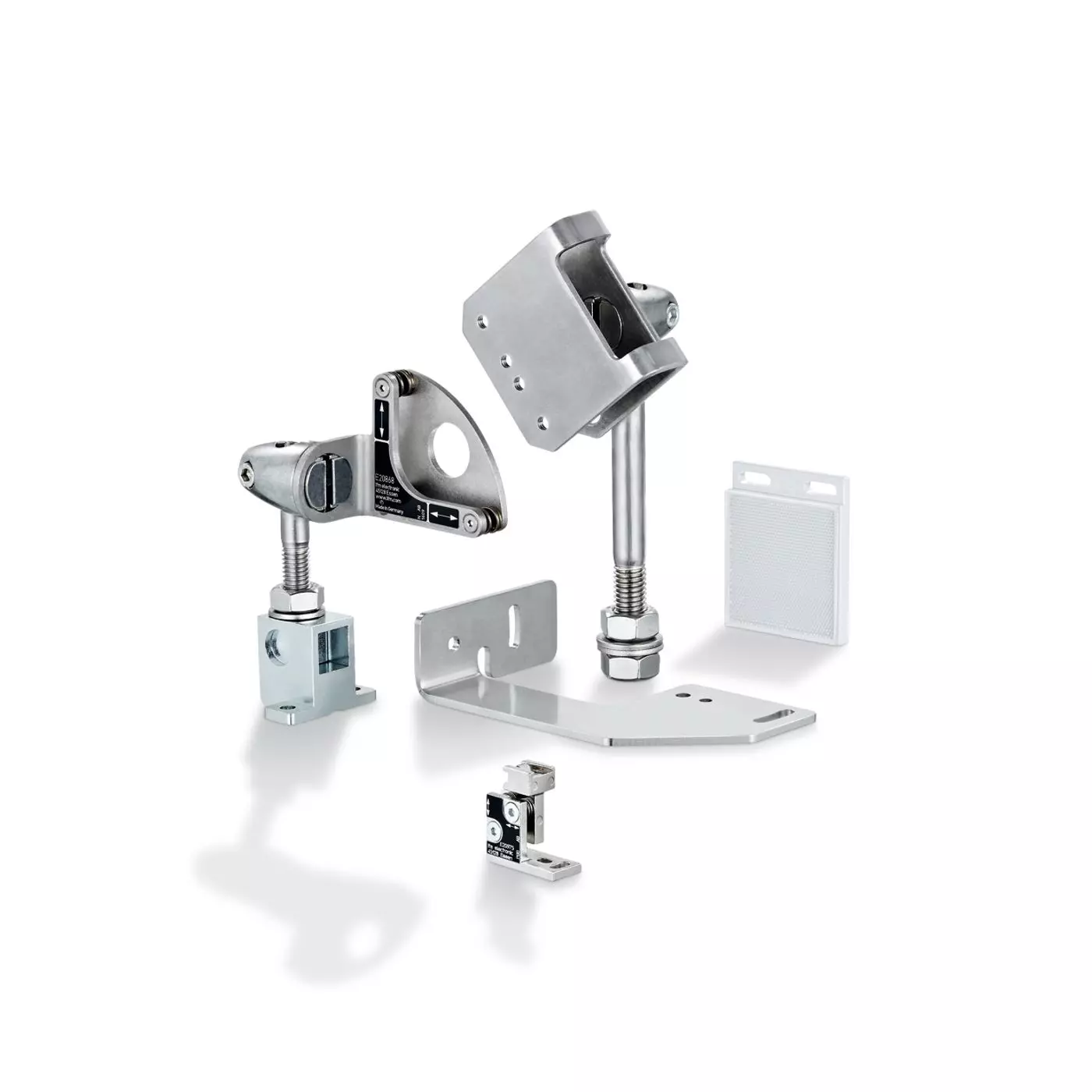

Assembly and fine adjustment units
The angle of radiation of laser units is small. The fixture for fine adjustment allows easy alignment of the laser beam to a laser receiver or triple reflector. In addition, this mounting system provides increased vibration resistance.
Features & Benefits
- User-friendly alignment of the laser beam to a laser receiver or prismatic reflector
- High vibration resistance
Additional Notes
| MPN | Product designation | Design | Material | Type of mounting |
|---|---|---|---|---|
| E1D100 | Mounting and fine adjustment bracket for laser units | Clamp mounting | fixture: aluminum transparent anodized; plastics: POM; screws: stainless steel | rod or free-standing depending on the clamp |
| E20737 | Mounting and fine adjustment bracket for laser units | Clamp mounting | stainless steel (1.4571/316Ti ) | rod or free-standing depending on the clamp |
| E20794 | Mounting and fine adjustment bracket for laser units | Clamp mounting | stainless steel (1.4571/316Ti ) | rod or free-standing depending on the clamp |
| E20975 | Mounting and fine adjustment bracket for laser units | for front lens | diecast zinc | |
| E20976 | Mounting and fine adjustment bracket for laser units | for side lens | diecast zinc | |
| E21226 | Mounting and fine adjustment bracket for laser units | for side lens | stainless steel (1.4301 / 304) |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110050010 | ifm Accessories - for laser sensors - Reflectors | $0.01 | |
| IFM-110050020 | ifm Accessories - for laser sensors - Mounting sets for type O1 | $0.01 | |
| IFM-110050030 | ifm Accessories - for laser sensors - Mounting sets for type O5 | $0.01 | |
| IFM-110050040 | ifm Accessories - for laser sensors - Mounting sets for type OJ | $0.01 | |
| IFM-110050050 | ifm Accessories - for laser sensors - Mounting sets for type M18 | $0.01 | |
| IFM-110050060 | ifm Accessories - for laser sensors - Mounting sets for type M30 | $0.01 | |
| IFM-110050070 | ifm Accessories - for laser sensors - Mounting sets for reflectors | $0.01 | |
| IFM-110050080 | ifm Accessories - for laser sensors - Clamps | $0.01 | |
| IFM-110050090 | ifm Accessories - for laser sensors - Accessories for laser sensors – Mounting rods | $0.01 | |
| IFM-110050100 | ifm Accessories - for laser sensors - Thread cubes for aluminum profile mounting | $0.01 | |
| IFM-110050110 | ifm Accessories - for laser sensors - Device protection | $0.01 | |
| IFM-110050120 | ifm Accessories - for laser sensors - Cooling boxes and protective housings for distance sensors | $0.01 |
