Headline

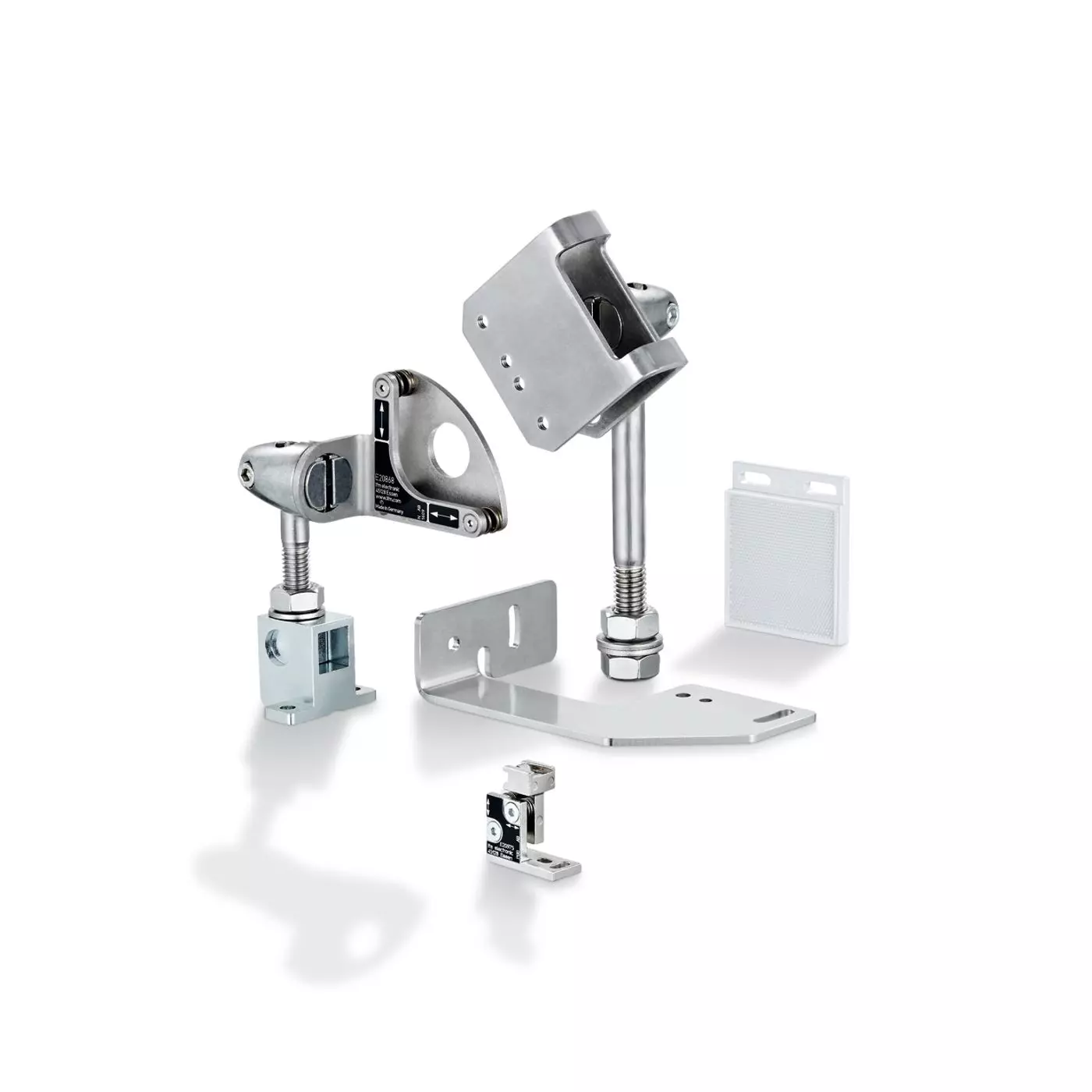

Accessories for laser sensors – clamps
The easy-to-use mounting sets consist of a clamp, a mounting element for the reflector and a screw with nut. The clamp that is fixed to the screw keeps the mounting element with the reflector safely in position and guarantees free movement in all directions.
The clamp can be mounted in three different ways: rod mounting, free-standing mounting and fitting onto aluminium extrusions which are common in industry.
Features & Benefits
- Low-cost systems for standard mounting
- Just clamp - systems for rod mounting
- Rotatable in all directions for free-standing mounting
- Ingeniously simple, the ifm CUBE for aluminium profile mounting
- Wide range of reflectors for retro-reflective sensors
Additional Notes
| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| E20717 | Clamp | 27 x 27 x 37 mm | Clamp: diecast zinc | ||
| E21076 | Connection piece | 20 mm | stainless steel (1.4404 / 316L) | ||
| E21109 | Clamp | M12 mm | Clamp: stainless steel (1.4408) | ||
| E21110 | Clamp | 27 x 27 x 37 mm | Clamp: stainless steel (1.4408) | ||
| E2D118 | Mounting set | fixture: stainless steel (1.4305 / 303); Clamp: stainless steel (1.4408); screws: stainless steel; Nut: stainless steel |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110050010 | ifm Accessories - for laser sensors - Reflectors | $0.01 | |
| IFM-110050020 | ifm Accessories - for laser sensors - Mounting sets for type O1 | $0.01 | |
| IFM-110050030 | ifm Accessories - for laser sensors - Mounting sets for type O5 | $0.01 | |
| IFM-110050040 | ifm Accessories - for laser sensors - Mounting sets for type OJ | $0.01 | |
| IFM-110050050 | ifm Accessories - for laser sensors - Mounting sets for type M18 | $0.01 | |
| IFM-110050060 | ifm Accessories - for laser sensors - Mounting sets for type M30 | $0.01 | |
| IFM-110050070 | ifm Accessories - for laser sensors - Mounting sets for reflectors | $0.01 | |
| IFM-110050090 | ifm Accessories - for laser sensors - Accessories for laser sensors – Mounting rods | $0.01 | |
| IFM-110050100 | ifm Accessories - for laser sensors - Thread cubes for aluminum profile mounting | $0.01 | |
| IFM-110050110 | ifm Accessories - for laser sensors - Device protection | $0.01 | |
| IFM-110050120 | ifm Accessories - for laser sensors - Cooling boxes and protective housings for distance sensors | $0.01 | |
| IFM-110050130 | ifm Accessories - for laser sensors - Devices for mounting and fine adjustment | $0.01 |
