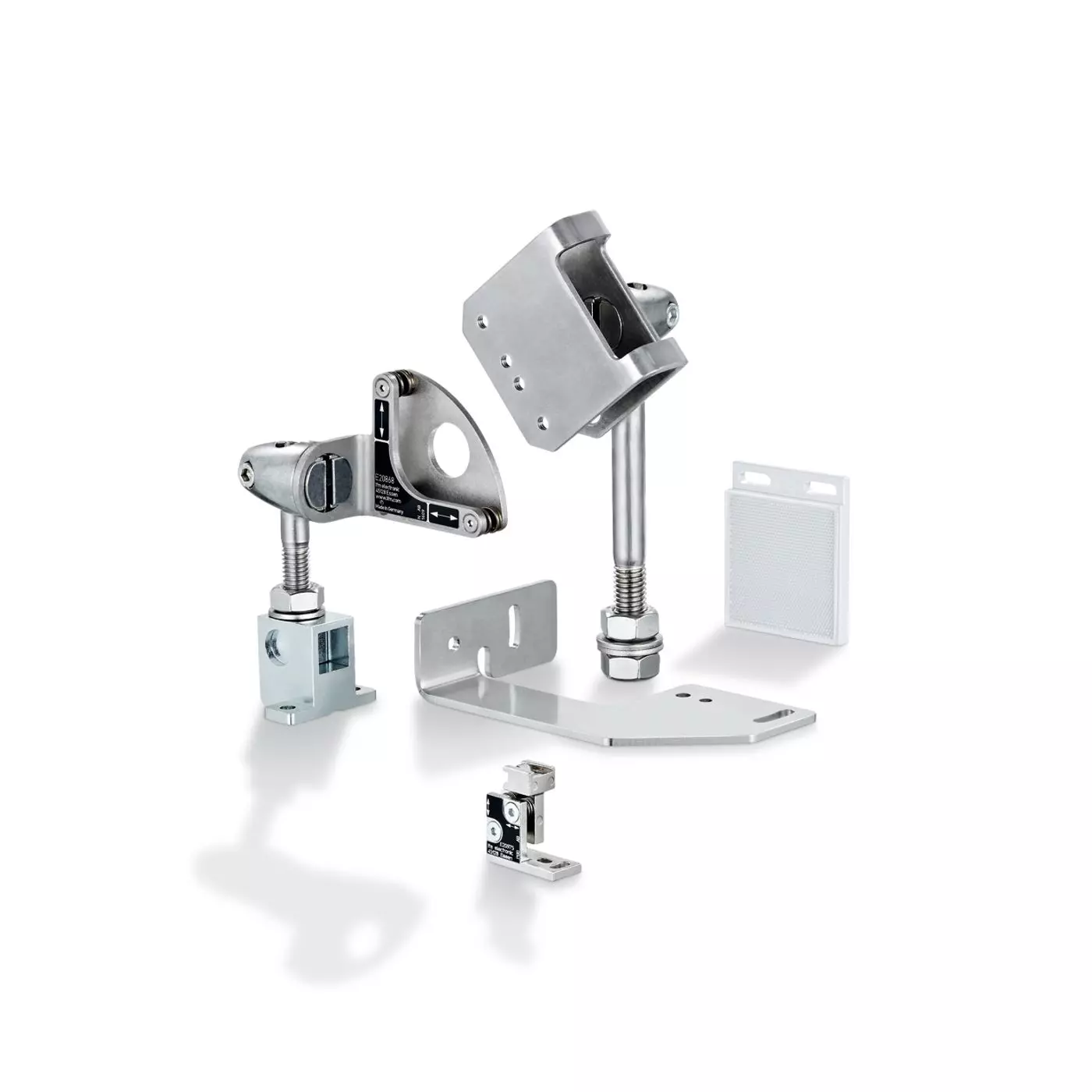

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Reflectors
A suitable reflector (prismatic reflector) is always required for the use of retro-reflective sensors. ifm offers different round and square designs as well as special reflectors for laser light.
Features & Benefits
- For use with retro-reflective sensors
- Prismatic reflectors in round or rectangular designs
- Special reflectors for laser light
Additional Notes
| MPN | Product designation | Dimensions | Reflector surface | Material | Ambient temperature |
|---|---|---|---|---|---|
| E20722 | Prismatic reflector | 61 x 51 x 7 mm | 47 x 47 mm | plastics | -10...60 °C |
| E20988 | Prismatic reflector | 10 x 62 x 3.5 mm | 45 x 8 mm | front panel: PMMA; base: ABS | -10...60 °C |
| E20989 | Prismatic reflector | 14 x 23 x 5 mm | 19 x 9.7 mm | front panel: PMMA; base: ABS | -10...60 °C |
| E20990 | Prismatic reflector | Ø 10 / L = 6 mm | Ø 8 mm | screw: stainless steel (1.4401 / 316); Spring washer: stainless steel (1.4401 / 316); Nut: stainless steel (1.4401 / 316); front panel: PMMA; base: ABS | -10...60 °C |
| E20991 | Prismatic reflector | 11 x 11 x 6 mm | 9 x 9 mm | screw: stainless steel (1.4401 / 316); Spring washer: stainless steel (1.4401 / 316); Nut: stainless steel (1.4401 / 316); front panel: PMMA; base: ABS | -10...60 °C |
| E20992 | Prismatic reflector | Ø 15 / L = 6 mm | Ø 13 mm | screw: stainless steel (1.4401 / 316); Spring washer: stainless steel (1.4401 / 316); Nut: stainless steel (1.4401 / 316); front panel: PMMA; base: ABS | -10...60 °C |
| E20993 | Prismatic reflector | Ø 19 / L = 5 mm | Ø 17 mm | screw: stainless steel (1.4401 / 316); Spring washer: stainless steel (1.4401 / 316); Nut: stainless steel (1.4401 / 316); front panel: PMMA; base: ABS | -10...60 °C |
| E20994 | Prismatic reflector | 20 x 43 x 3.5 mm | 27 x 17 mm | front panel: PMMA; base: ABS | -10...60 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110050020 | ifm Accessories - for laser sensors - Mounting sets for type O1 | $0.01 | |
| IFM-110050030 | ifm Accessories - for laser sensors - Mounting sets for type O5 | $0.01 | |
| IFM-110050040 | ifm Accessories - for laser sensors - Mounting sets for type OJ | $0.01 | |
| IFM-110050050 | ifm Accessories - for laser sensors - Mounting sets for type M18 | $0.01 | |
| IFM-110050060 | ifm Accessories - for laser sensors - Mounting sets for type M30 | $0.01 | |
| IFM-110050070 | ifm Accessories - for laser sensors - Mounting sets for reflectors | $0.01 | |
| IFM-110050080 | ifm Accessories - for laser sensors - Clamps | $0.01 | |
| IFM-110050090 | ifm Accessories - for laser sensors - Accessories for laser sensors – Mounting rods | $0.01 | |
| IFM-110050100 | ifm Accessories - for laser sensors - Thread cubes for aluminum profile mounting | $0.01 | |
| IFM-110050110 | ifm Accessories - for laser sensors - Device protection | $0.01 | |
| IFM-110050120 | ifm Accessories - for laser sensors - Cooling boxes and protective housings for distance sensors | $0.01 | |
| IFM-110050130 | ifm Accessories - for laser sensors - Devices for mounting and fine adjustment | $0.01 |
