Headline

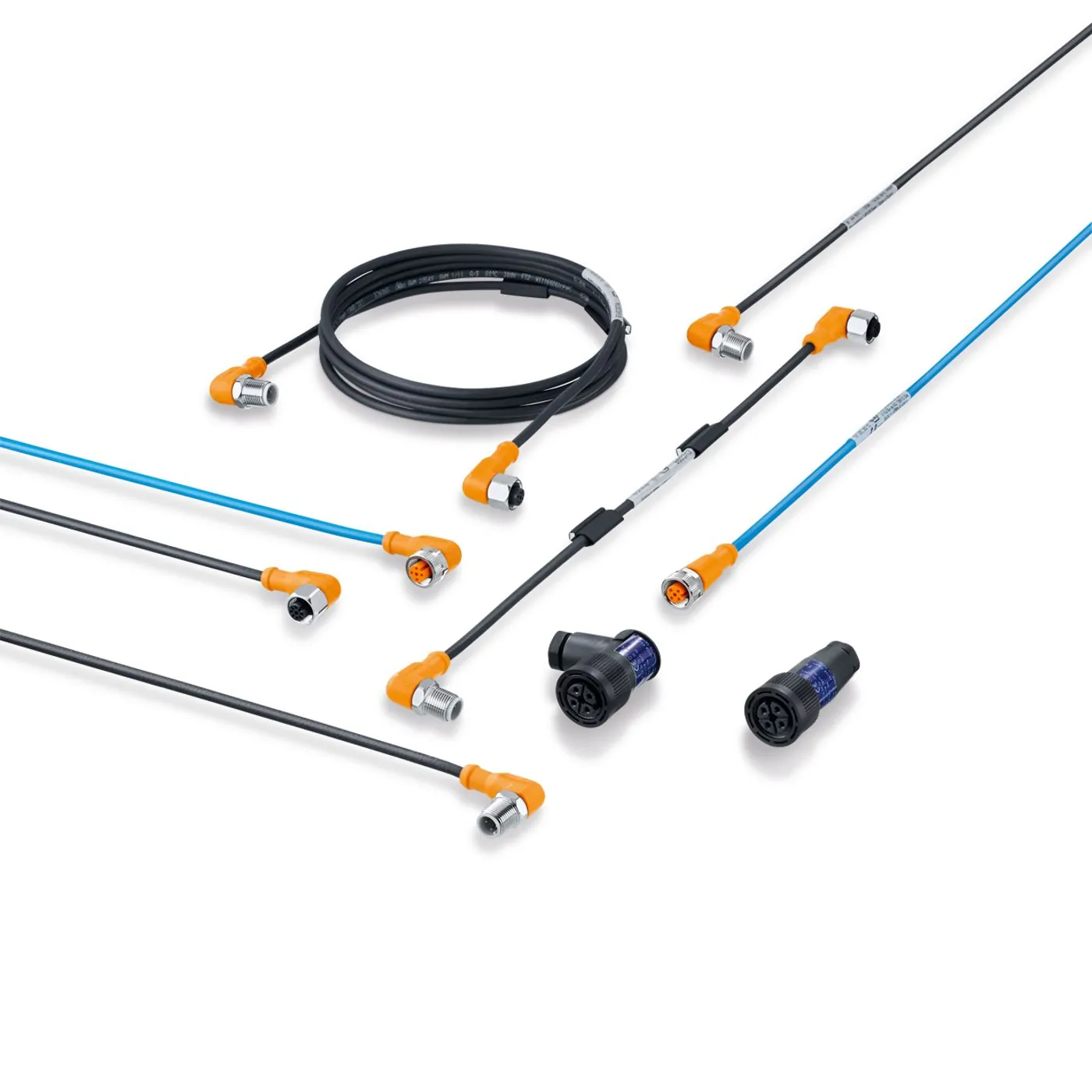

Jumper cables
Jumper cables feature a plug and a socket. They are used for the connection of sensors to splitter boxes and modules. They ensure reliable and permanent sealing of the sensor and splitter connections even when mounted without tools. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut. Even in harsh industrial environments, the connectors are protected against unintended loosening by a special vibration protection. Jumper cables of the ecolink series for hazardous areas comply with the strict international standard requirements and may be used in ATEX areas.
Features & Benefits
- For applications in hazardous areas
- Connection technology meets the M12 standard (EN 61076)
- With EC type examination certificate for components
- Mechanical end stop to protect the O-ring from destruction
- Sawtooth design protects against shock and vibration
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E10821 | Connection cable | 0.3 m PVC-Cable; M12 / valve type A DIN Connector | 2 x 0,5 mm² | 2 | |
| EVC11A | Connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC12A | Connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090060010 | Cables and Connections - Hazardous area - Female cordsets | $0.01 | |
| IFM-090060020 | Cables and Connections - Hazardous area - Male cordsets | $0.01 | |
| IFM-090060040 | Cables and Connections - Hazardous area - Female wirable connectors | $0.01 |
