Headline
Sockets

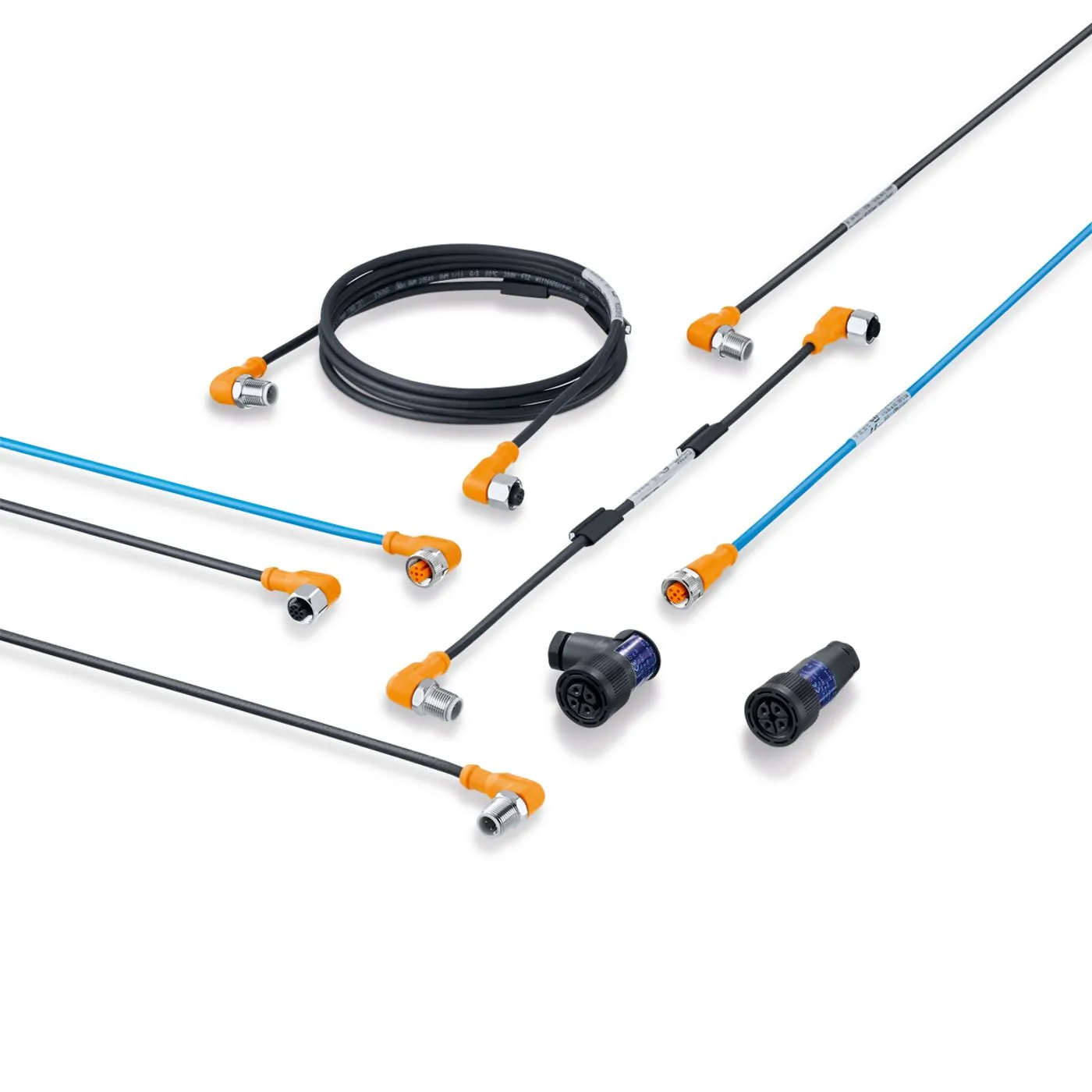

Sockets are generally used in automation technology to connect sensors and actuators with connectors to splitter boxes. Even when fastened by hand, a perfect lasting seal of sensor and actuator connections is guaranteed. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut. Even in harsh industrial environments, the connectors are protected against unintended loosening by a special vibration protection. Sockets of the ecolink series for hazardous areas comply with the strict international standard requirements and may be used in ATEX areas.
Features & Benefits
- For applications in hazardous areas
- Connection technology meets the M12 standard (EN 61076)
- With EC type examination certificate for components
- Mechanical end stop to protect the O-ring from destruction
- Sawtooth design protects against shock and vibration
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| ENC01A | Female cordset | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| ENC02A | Female cordset | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| ENC03A | Female cordset | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| ENC04A | Female cordset | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| ENC05A | Female cordset | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| ENC06A | Female cordset | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| ENC07A | Female cordset | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| ENC08A | Female cordset | 5 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| ENC09A | Female cordset | 10 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| ENC10A | Female cordset | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| ENC11A | Female cordset | 5 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| ENC12A | Female cordset | 10 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| ENC13A | Female cordset | 25 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| ENC14A | Female cordset | 50 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| ENC16A | Female cordset | 50 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVC04A | Female cordset | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC05A | Female cordset | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC06A | Female cordset | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC14A | Female cordset | 25 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC15A | Female cordset | 40 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC29A | Female cordset | 50 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVC30A | Female cordset | 80 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090060020 | Cables and Connections - Hazardous area - Male cordsets | $0.01 | |
| IFM-090060030 | Cables and Connections - Hazardous area - Patchcords | $0.01 | |
| IFM-090060040 | Cables and Connections - Hazardous area - Female wirable connectors | $0.01 |
