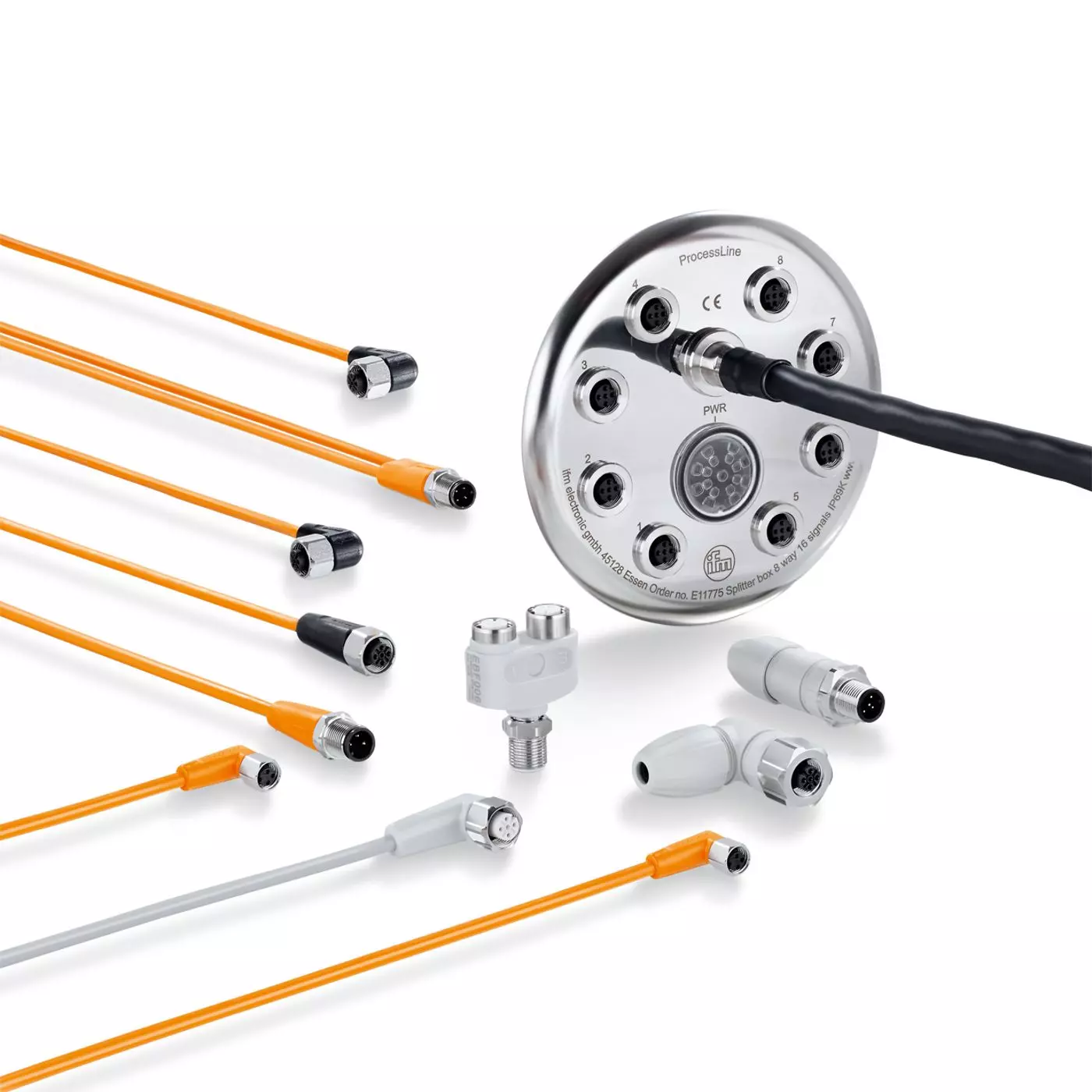

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Female wirable connectors
Female wirable connectors are used for the connection of sensors or actuators with connectors. They are used if a specific cable length or cable is required. The units have convenient screw terminals for connection. High-grade stainless steel nuts make the wirable sockets suitable for use in hygienic and wet areas.
Features & Benefits
- Straight or right angle design
- Gold-plated contacts for reliable electrical connections
- Versions with LED for switching status indication and operation
- Stainless steel lock nut
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| EVC817 | Wirable plug | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVF565 | Female wirable connectors | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVF566 | Female wirable connectors | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVF569 | Female wirable connectors | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVF570 | Female wirable connectors | M12 Connector; screw terminals: 0,25...1 mm²; Cable sheath: Ø 3,5...6 mm | |||
| EVT256 | Connection cable | 2 m PVC-Cable; M12 / M8 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT257 | Connection cable | 5 m PVC-Cable; M12 / M8 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT258 | Connection cable | 10 m PVC-Cable; M12 / M8 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090020010 | Cables and Connections - Washdown - Female cordsets for food and beverage applications | $0.01 | |
| IFM-090020020 | Cables and Connections - Washdown - Male cordsets for food and beverage applications | $0.01 | |
| IFM-090020030 | Cables and Connections - Washdown - Patchcords for food and beverage applications | $0.01 | |
| IFM-090020040 | Cables and Connections - Washdown - Y-splitters cable for food and beverage applications | $0.01 | |
| IFM-090020050 | Cables and Connections - Washdown - Wiring blocks for food and beverage applications | $0.01 | |
| IFM-090020055 | Cables and Connections - Washdown - Y-splitters for food and beverage applications | $0.01 | |
| IFM-090020070 | Cables and Connections - Washdown - Male wirable connectors for food and beverage applications | $0.01 |
