Headline

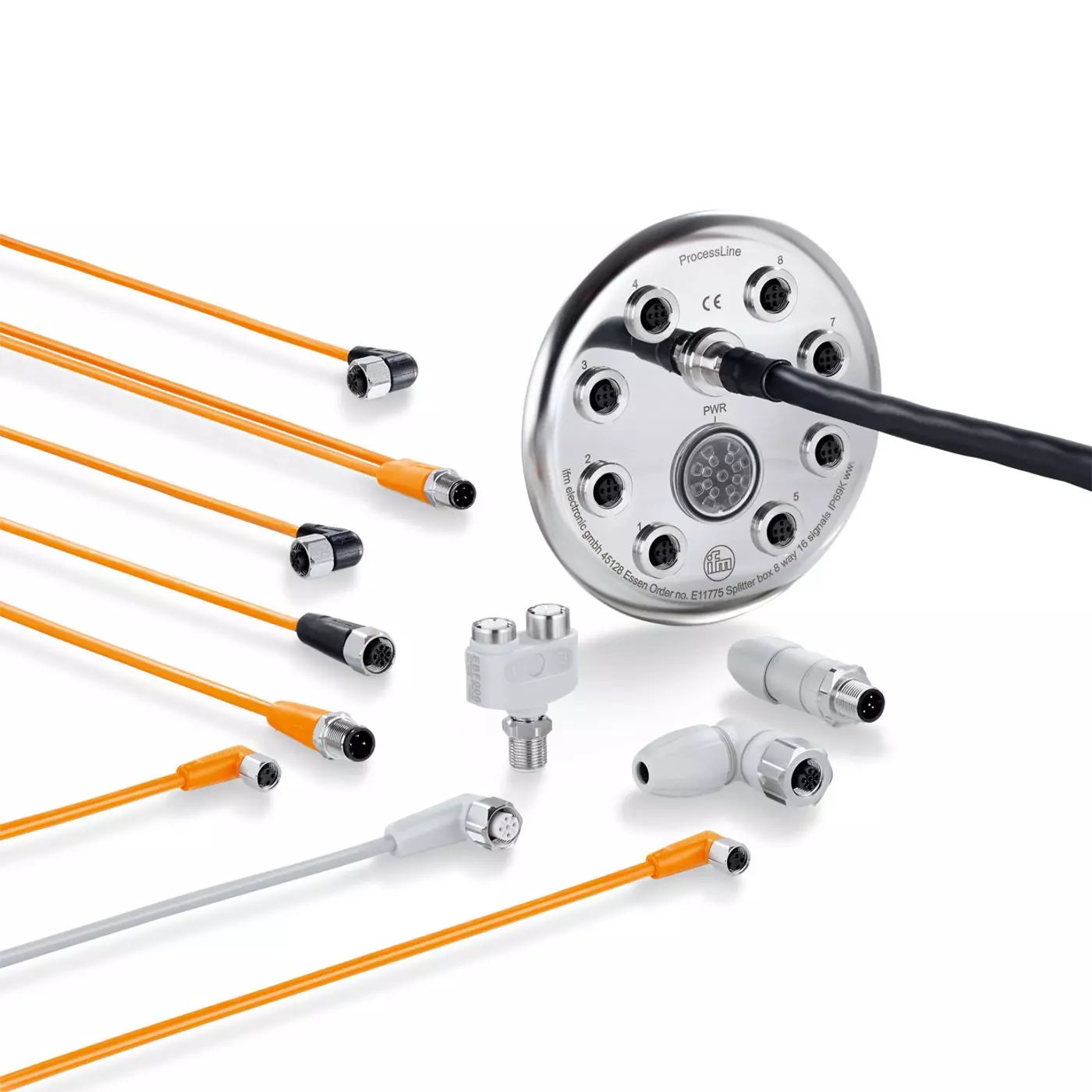

Male cordsets
Male cordsets are frequently used for connecting sensors and actuators with connection terminals to splitter boxes or modules in automation technology. Even when fastened by hand, a perfect lasting seal of splitter and module connections is guaranteed. They offer high protection against moisture ingress and high material resistance to aggressive liquids. The plugs of the EVT ecolink series are particularly suited for hygienic and wet areas. They are resistant to frequent high-pressure cleaning with aggressive cleaning agents. Thanks to their wide temperature range and their insensitivity to fast temperature changes the plugs are particularly suited for use in the food and beverage industry.
Features & Benefits
- High protection rating for the requirements of harsh industrial environments
- Reliable sealing even when mounted without tools
- High shock and vibration resistance
- LEDs clearly visible even under bright lighting
- Wide operating temperature range
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| EVF071 | Male cordsets | 2 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVF072 | Male cordsets | 5 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVF073 | Male cordsets | 10 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVF088 | Male cordsets | 2 m MPPE-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVF089 | Male cordsets | 2 m MPPE-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVT071 | Male cordsets | 2 m PVC-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT072 | Male cordsets | 5 m PVC-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT073 | Male cordsets | 10 m PVC-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT086 | Male cordsets | 2 m PVC-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVT088 | Male cordsets | 2 m PVC-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT089 | Male cordsets | 2 m PVC-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVT090 | Male cordsets | 5 m PVC-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT217 | Male cordsets | 2 m PVC-Cable; M8 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVT218 | Male cordsets | 2 m PVC-Cable; M8 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVT219 | Male cordsets | 2 m PVC-Cable; M8 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT220 | Male cordsets | 2 m PVC-Cable; M8 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT276 | Male cordsets | 5 m PVC-Cable; M8 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVT277 | Male cordsets | 10 m PVC-Cable; M8 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 | |
| EVT327 | Male cordsets | 10 m PVC-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT344 | Male cordsets | 5 m PVC-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVT350 | Male cordsets | 25 m PVC-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVT358 | Male cordsets | 10 m PVC-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVT647 | Male cordsets | 2.2 m PVC-Cable; M8 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | 3 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090020010 | Cables and Connections - Washdown - Female cordsets for food and beverage applications | $0.01 | |
| IFM-090020030 | Cables and Connections - Washdown - Patchcords for food and beverage applications | $0.01 | |
| IFM-090020040 | Cables and Connections - Washdown - Y-splitters cable for food and beverage applications | $0.01 | |
| IFM-090020050 | Cables and Connections - Washdown - Wiring blocks for food and beverage applications | $0.01 | |
| IFM-090020055 | Cables and Connections - Washdown - Y-splitters for food and beverage applications | $0.01 | |
| IFM-090020060 | Cables and Connections - Washdown - Female wirable connectors for food and beverage applications | $0.01 | |
| IFM-090020070 | Cables and Connections - Washdown - Male wirable connectors for food and beverage applications | $0.01 |
