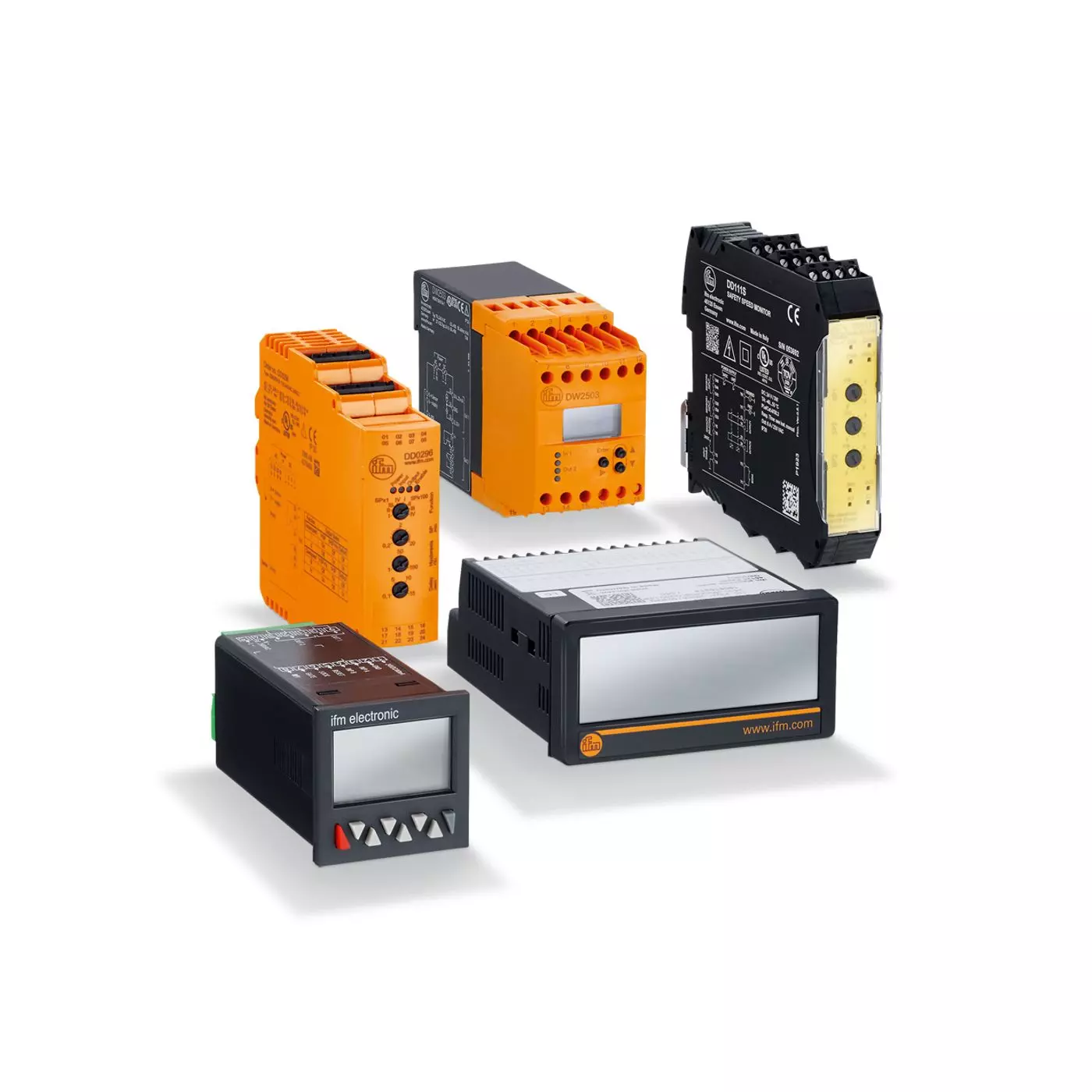

Direction monitors
The direction monitors detect the direction of a shaft rotation by means of staggered pulses. For example, they are used to ensure that a screw conveyor only runs in the specified direction. This prevents blockages, production downtime and damage to the system. On a crane, the units can detect any unintentional lowering of the load due to overload or brake failure. Typically, two inductive sensors serve as pulse pick-ups. Depending on which sensor is dampened first by the switching cams, the direction of rotation can be determined. The ifm range includes units with one switching output indicating the direction of rotation and another switching output for speed monitoring, and units with one switching output for clockwise and another one for counter-clockwise rotation while offering simultaneous standstill detection.
- Rotational direction monitoring by means of staggered pulse sequences
- High input frequency of up to 60,000 pulses / minute
- Various configurable monitoring functions
- Clearly readable, bright OLED display
- Wide operating temperature range
| MPN | Product designation | Application | Operating voltage DC | Electrical design | Protection |
|---|---|---|---|---|---|
| DR2503 | MONITOR | pulse evaluation system with microprocessor for direction monitoring and frequency, rotational speed and speed | IP 50 | ||
| DR2505 | MONITOR | pulse evaluation system with µprocessor for direction monitoring with separate direction indication for "right" and "left" | IP 50 |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-015070010 | Motion Control Sensors - Pulse evaluation systems - Single-channel speed monitoring | $0.01 | |
| IFM-015070020 | Motion Control Sensors - Pulse evaluation systems - Dual-channel speed monitoring | $0.01 | |
| IFM-015070025 | Motion Control Sensors - Pulse evaluation systems - Safe speed monitoring | $0.01 | |
| IFM-015070026 | Motion Control Sensors - Pulse evaluation systems - Safe standstill monitoring | $0.01 | |
| IFM-015070027 | Motion Control Sensors - Pulse evaluation systems - Safe monitoring of underspeed | $0.01 | |
| IFM-015070030 | Motion Control Sensors - Pulse evaluation systems - Slip monitoring | $0.01 | |
| IFM-015070040 | Motion Control Sensors - Pulse evaluation systems - Synchronous monitoring | $0.01 | |
| IFM-015070060 | Motion Control Sensors - Pulse evaluation systems - Industrial timers | $0.01 | |
| IFM-015070070 | Motion Control Sensors - Pulse evaluation systems - Timer relays | $0.01 | |
| IFM-015070080 | Motion Control Sensors - Pulse evaluation systems - Position and event counters | $0.01 | |
| IFM-015070090 | Motion Control Sensors - Pulse evaluation systems - Evaluation units for level control | $0.01 | |
| IFM-015070100 | Motion Control Sensors - Pulse evaluation systems - Evaluation units for flow monitoring | $0.01 |
