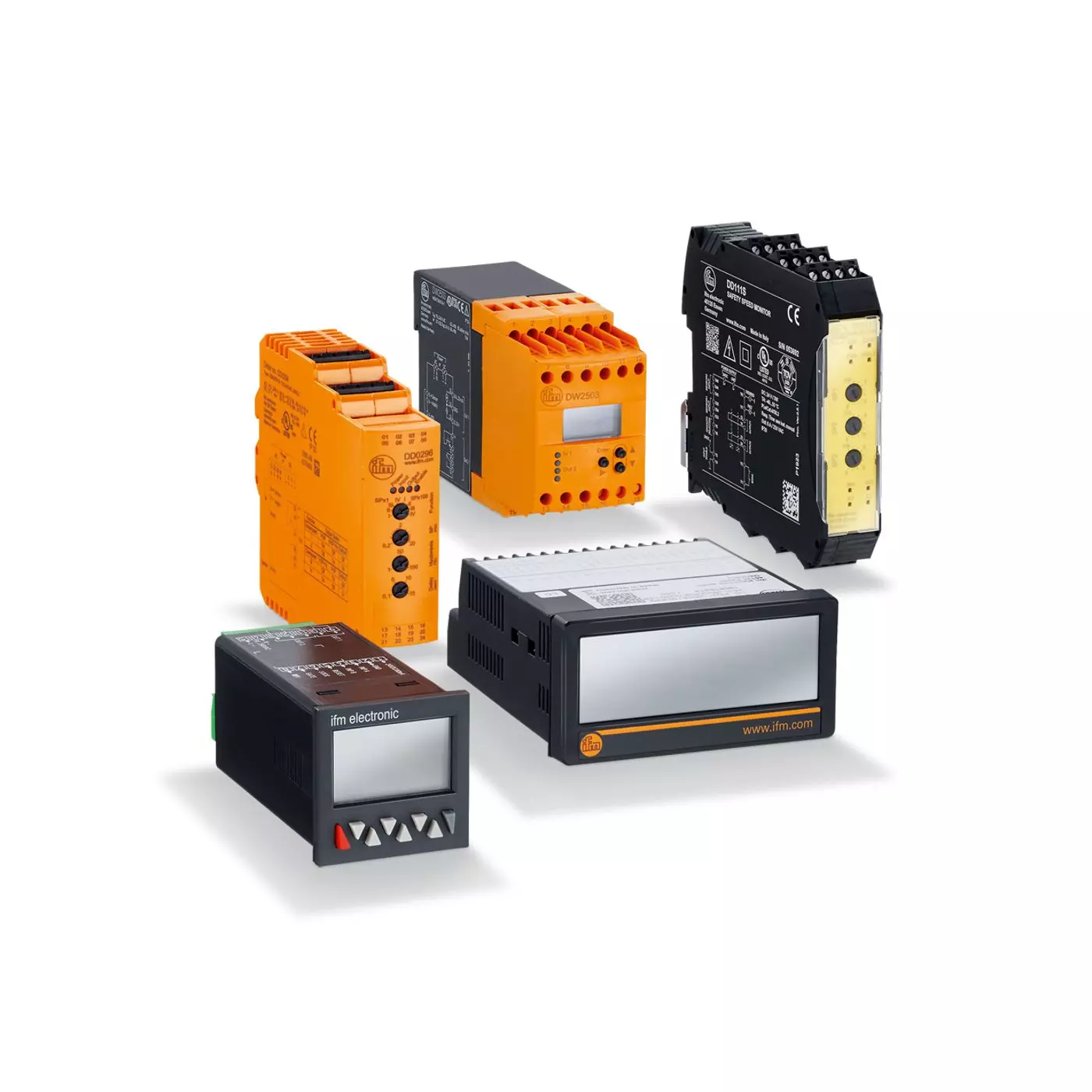

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Synchronous monitors
These units are preferably used for slip and synchronous monitoring of clutches, belt conveyors and any other applications where rotational speed differences must be evaluated. Synchronous monitors compare the pulse sequences generated by sensors. As soon as the rotational speeds of the two drives differ, the synchronous monitor switches. The reset time and acceptable pulse difference can be set by the user. A high-contrast display and an intuitive operation facilitate parameter setting and commissioning.
Features & Benefits
- Monitoring of two limit values with separate output relays
- High input frequency of up to 60,000 pulses / minute
- Various configurable monitoring functions
- Clearly readable, bright OLED display
- Wide operating temperature range
Additional Notes
| MPN | Product designation | Application | Operating voltage DC | Electrical design | Protection |
|---|---|---|---|---|---|
| DS2505 | MONITOR | pulse evaluation system with microprocessor for slip and synchronous monitoring, evaluation of pulse differences | IP 50 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-015070010 | Motion Control Sensors - Pulse evaluation systems - Single-channel speed monitoring | $0.01 | |
| IFM-015070020 | Motion Control Sensors - Pulse evaluation systems - Dual-channel speed monitoring | $0.01 | |
| IFM-015070025 | Motion Control Sensors - Pulse evaluation systems - Safe speed monitoring | $0.01 | |
| IFM-015070026 | Motion Control Sensors - Pulse evaluation systems - Safe standstill monitoring | $0.01 | |
| IFM-015070027 | Motion Control Sensors - Pulse evaluation systems - Safe monitoring of underspeed | $0.01 | |
| IFM-015070030 | Motion Control Sensors - Pulse evaluation systems - Slip monitoring | $0.01 | |
| IFM-015070050 | Motion Control Sensors - Pulse evaluation systems - Direction of rotation monitoring | $0.01 | |
| IFM-015070060 | Motion Control Sensors - Pulse evaluation systems - Industrial timers | $0.01 | |
| IFM-015070070 | Motion Control Sensors - Pulse evaluation systems - Timer relays | $0.01 | |
| IFM-015070080 | Motion Control Sensors - Pulse evaluation systems - Position and event counters | $0.01 | |
| IFM-015070090 | Motion Control Sensors - Pulse evaluation systems - Evaluation units for level control | $0.01 | |
| IFM-015070100 | Motion Control Sensors - Pulse evaluation systems - Evaluation units for flow monitoring | $0.01 |
