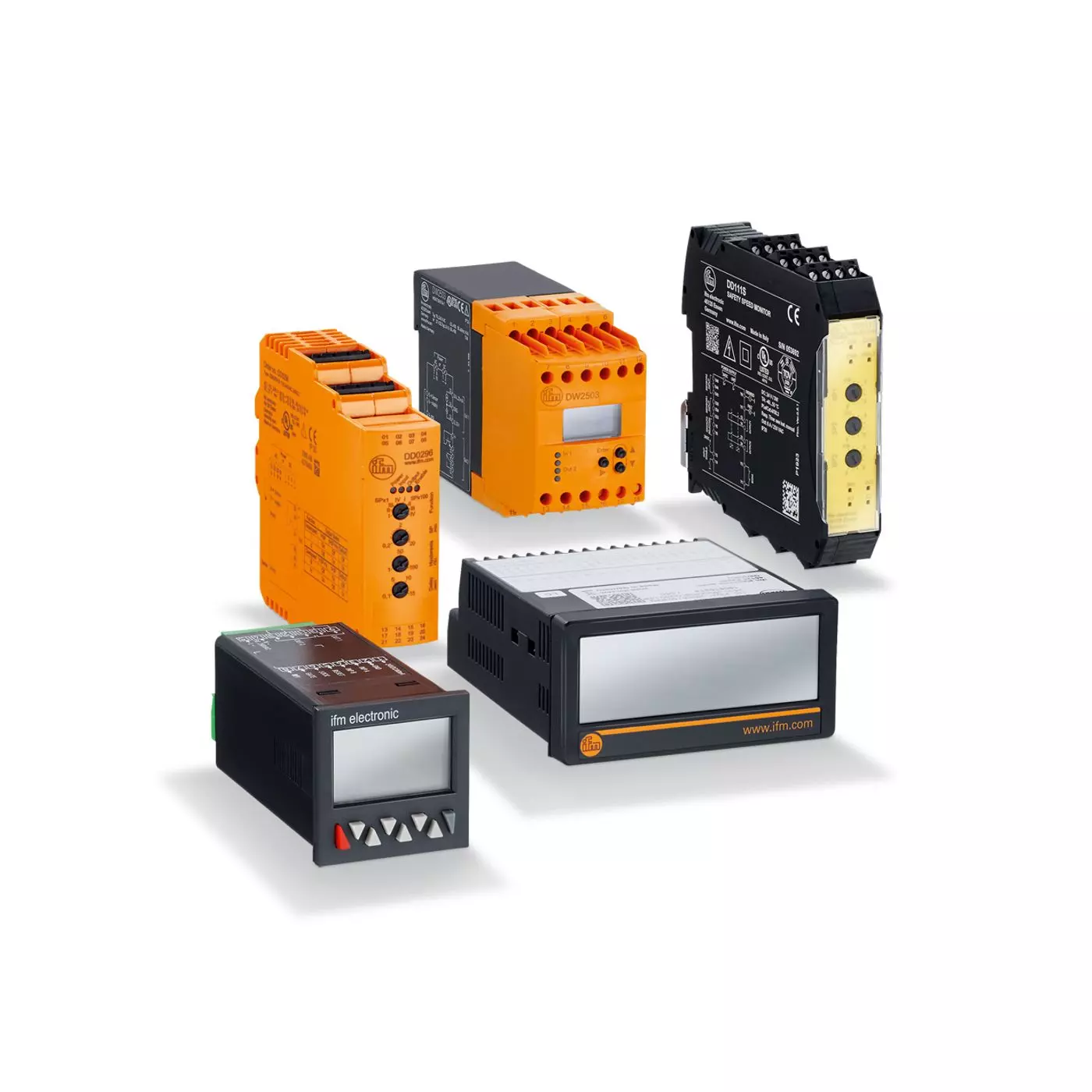

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Slip monitors
Slip is the rotational speed difference between the driven and the non-driven side of a power train. Rotational speed differences may occur as a result of a slipped coupling, V-belt or drive belt. The slip monitor calculates the rotational speed difference in per cent and switches as soon as the limit value is reached. The signal can be used to switch off the installation to avoid wear or damage caused by friction heat. Two separate limit values can be monitored for slip and rotational speed. The unit can be set to monitor underspeed or overspeed.
Features & Benefits
- One switching output for rotational speed and one for slip monitoring
- High input frequency of up to 60,000 pulses / minute
- Various configurable monitoring functions
- Clearly readable, bright OLED display
- Wide operating temperature range
Additional Notes
| MPN | Product designation | Application | Operating voltage DC | Electrical design | Protection |
|---|---|---|---|---|---|
| DS2503 | MONITOR | pulse evaluation system with microprocessor for slip and synchronous monitoring as well as frequency, rotational speed and speed | IP 50 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-015070010 | Motion Control Sensors - Pulse evaluation systems - Single-channel speed monitoring | $0.01 | |
| IFM-015070020 | Motion Control Sensors - Pulse evaluation systems - Dual-channel speed monitoring | $0.01 | |
| IFM-015070025 | Motion Control Sensors - Pulse evaluation systems - Safe speed monitoring | $0.01 | |
| IFM-015070026 | Motion Control Sensors - Pulse evaluation systems - Safe standstill monitoring | $0.01 | |
| IFM-015070027 | Motion Control Sensors - Pulse evaluation systems - Safe monitoring of underspeed | $0.01 | |
| IFM-015070040 | Motion Control Sensors - Pulse evaluation systems - Synchronous monitoring | $0.01 | |
| IFM-015070050 | Motion Control Sensors - Pulse evaluation systems - Direction of rotation monitoring | $0.01 | |
| IFM-015070060 | Motion Control Sensors - Pulse evaluation systems - Industrial timers | $0.01 | |
| IFM-015070070 | Motion Control Sensors - Pulse evaluation systems - Timer relays | $0.01 | |
| IFM-015070080 | Motion Control Sensors - Pulse evaluation systems - Position and event counters | $0.01 | |
| IFM-015070090 | Motion Control Sensors - Pulse evaluation systems - Evaluation units for level control | $0.01 | |
| IFM-015070100 | Motion Control Sensors - Pulse evaluation systems - Evaluation units for flow monitoring | $0.01 |
