Photoelectric fork sensors / angle sensors
Photoelectric fork and angle sensors are used for the detection of very small objects and for counting tasks in feeding, assembly and handling applications. Further application examples are belt edge and guide monitoring. The sensors are distinguished by a high switching frequency and a particularly fine and precise light beam. This allows for the reliable detection of very fast processes.
Made from distortion-resistant diecast zinc, the housing ensures long-term stability of the optical axis. No time-consuming adjustment is required because transmitter and receiver are already aligned towards each other.
The sensitivity can be set intuitively via potentiometer. Light-on / dark-on mode is selected via rotary switch.
- The accurate laser guarantees reliable detection of tiny objects from Ø 30 µm
- Quick set-up: no need to align transmitter and receiver
- Amount of light is continuously monitored so soiling is deteced
- Sensor modes (power, speed, high resolution) can be set for the specific application
| MPN | Dimensions | Fork depth D | Fork width W | Output function | Output |
|---|---|---|---|---|---|
| OPU700 | 50 x 10 x 60 mm | 35 mm | 30 mm | light-on/dark-on mode; (selectable) | DC PNP/NPN |
| OPU701 | 70 x 10 x 80 mm | 55 mm | 50 mm | light-on/dark-on mode; (selectable) | DC PNP/NPN |
| OPU702 | 100 x 10 x 80 mm | 55 mm | 80 mm | light-on/dark-on mode; (selectable) | DC PNP/NPN |

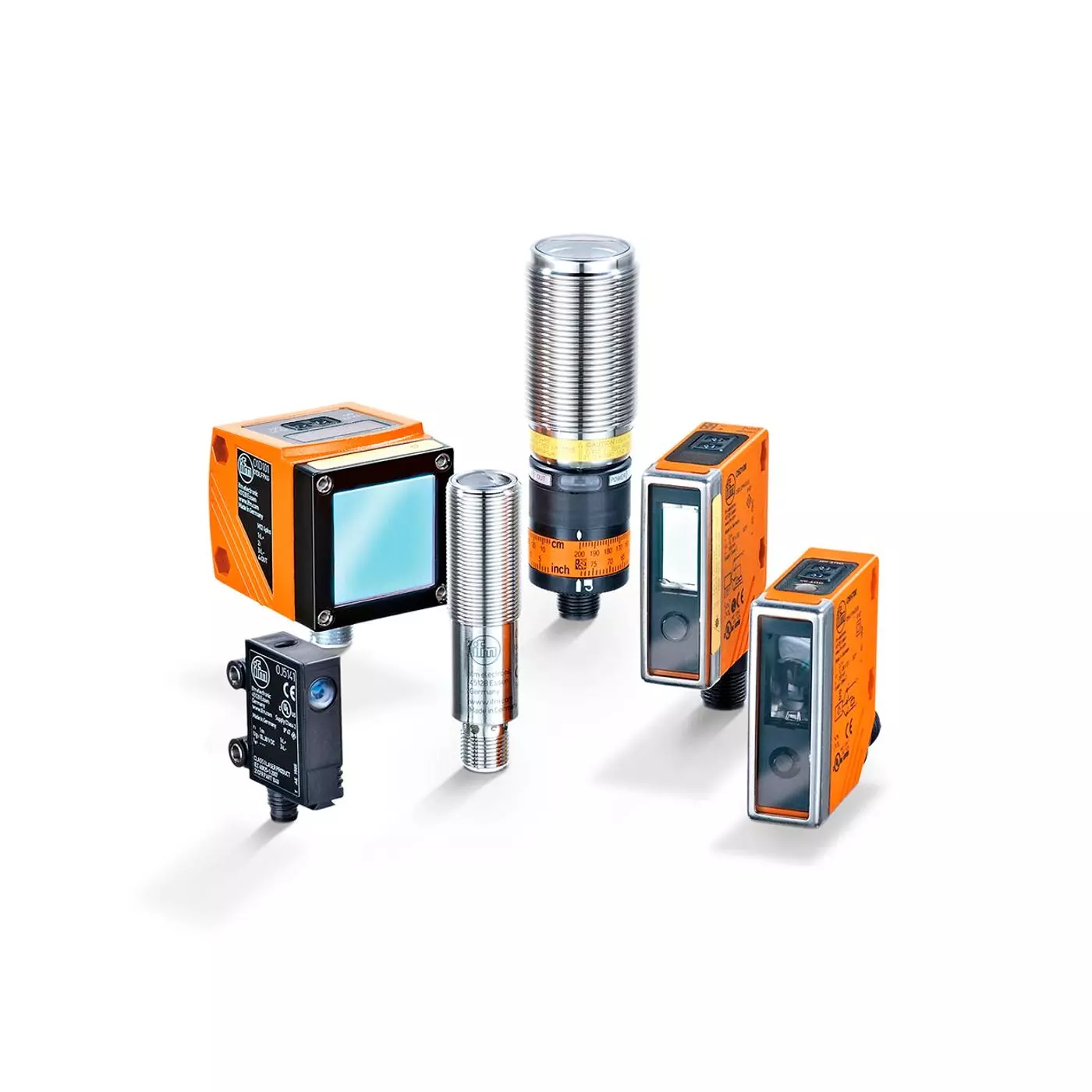

| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010070010 | Position Sensors - Laser - OJ laser for industrial automation | $0.01 | |
| IFM-010070020 | Position Sensors - Laser - O5 laser for industrial automation | $0.01 | |
| IFM-010070030 | Position Sensors - Laser - OG laser M18 for industrial automation | $0.01 | |
| IFM-010070040 | Position Sensors - Laser - O1D laser distance sensors for industrial automation | $0.01 | |
| IFM-010070050 | Position Sensors - Laser - O1D retroreflective laser distance sensors for long range applications | $0.01 | |
| IFM-010070060 | Position Sensors - Laser - OID laser distance sensors with adjustment dial | $0.01 | |
| IFM-010070070 | Position Sensors - Laser - OID laser distance sensors for harsh environments | $0.01 | |
| IFM-010070080 | Position Sensors - Laser - O5D laser distance sensors with display | $0.01 | |
| IFM-010070090 | Position Sensors - Laser - Cooling boxes and protective housings for O1D distance sensors | $0.01 | |
| IFM-010070100 | Position Sensors - Laser - OGD precision distance sensor for error proofing applications | $0.01 | |
| IFM-010070110 | Position Sensors - Laser - O6 for industrial automation | $0.01 | |
| IFM-010070120 | Position Sensors - Laser - PMD Profiler for object profile checking | $0.01 |
