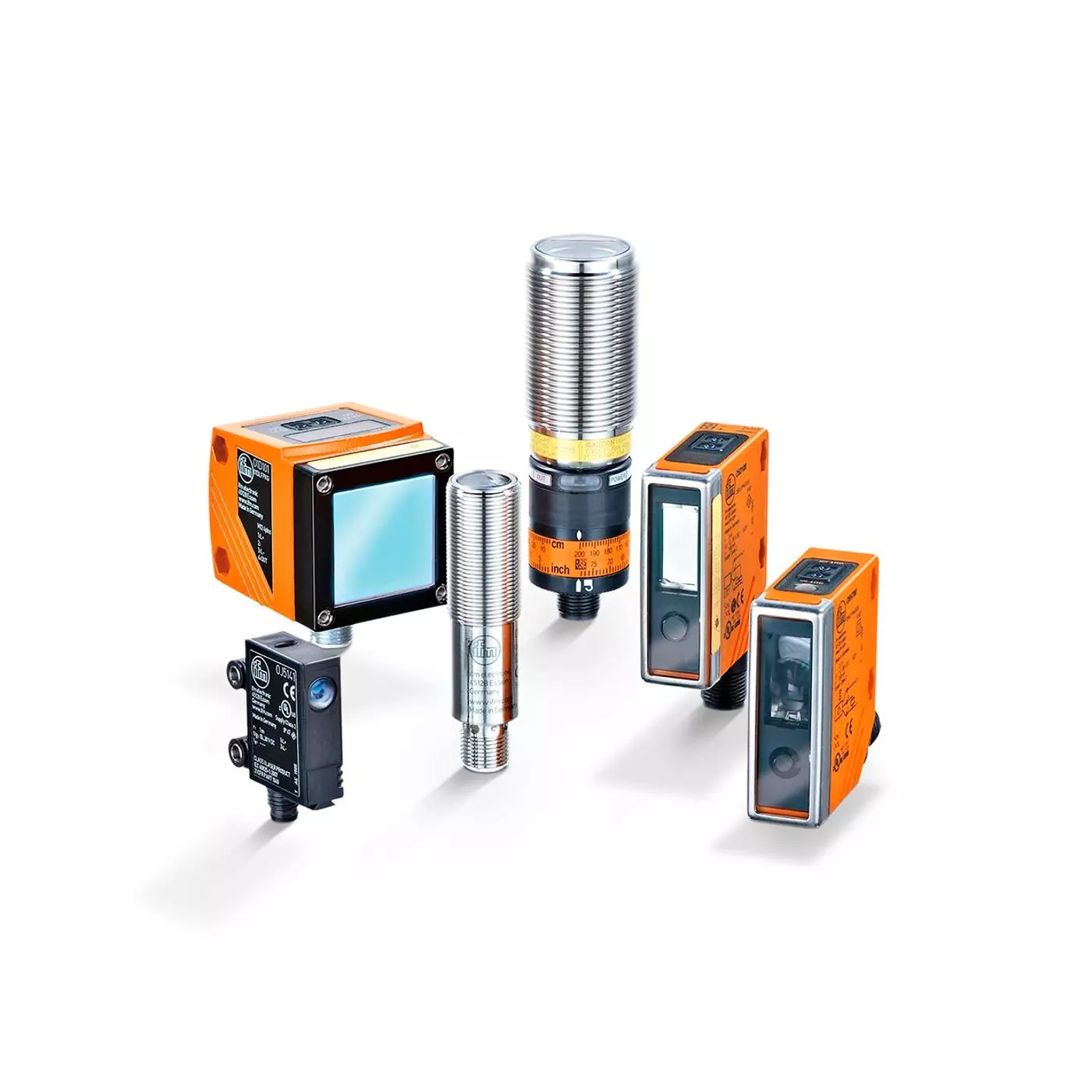

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Laser sensors - Type M18 Cube in metal housing
Thanks to the innovative on-chip time-of-flight principle with PMD technology (photonic mixer device), this sensor offers all the capability of a very precise measurement system. The OGD Precision with an extremely small light spot and a 300 mm range is perfectly suited for the detection of very small parts. The OGD Long Range reliably measures distances up to 1.5 m. Both detect objects independent of the colour and with laser protection class 1, which is not harmful to the eye. The excellent reflection resistance and background suppression, together with a high excess gain, enable reliable operation
Features & Benefits
- Small compact design with standard M18 thread and PMD time-of-flight technology
- Sensors with laser protection class 1
- Visualization and setting of the distance value via IO-Link and 2-color display on the unit
- Easy setting with 3 buttons or IO-Link
Additional Notes
| MPN | Product designation | Measuring range | Dimensions | Output function | Laser protection class |
|---|---|---|---|---|---|
| OGD580 | Photoelectric distance sensor | 0.025...1.5 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open, 2 x normally closed; (configurable) | 1 |
| OGD581 | Photoelectric distance sensor | 0.025...1.5 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
| OGD582 | Photoelectric distance sensor | 0.085...1.5 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
| OGD583 | Photoelectric distance sensor | 0.08...1.5 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
| OGD585 | Photoelectric distance sensor | 0.025...1.5 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
| OGD586 | Photoelectric distance sensor | 0.025...1.5 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
| OGD592 | Photoelectric distance sensor | 0.025...0.3 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
| OGD593 | Photoelectric distance sensor | 0.025...0.3 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
| OGD596 | Photoelectric distance sensor | 0.025...0.3 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
| OGD597 | Photoelectric distance sensor | 0.025...0.3 m | 61.7 x 22.5 x 45.2 mm | 2 x normally open / normally closed; (configurable) | 1 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010070010 | Position Sensors - Laser - OJ laser for industrial automation | $0.01 | |
| IFM-010070020 | Position Sensors - Laser - O5 laser for industrial automation | $0.01 | |
| IFM-010070030 | Position Sensors - Laser - OG laser M18 for industrial automation | $0.01 | |
| IFM-010070040 | Position Sensors - Laser - O1D laser distance sensors for industrial automation | $0.01 | |
| IFM-010070050 | Position Sensors - Laser - O1D retroreflective laser distance sensors for long range applications | $0.01 | |
| IFM-010070060 | Position Sensors - Laser - OID laser distance sensors with adjustment dial | $0.01 | |
| IFM-010070070 | Position Sensors - Laser - OID laser distance sensors for harsh environments | $0.01 | |
| IFM-010070080 | Position Sensors - Laser - O5D laser distance sensors with display | $0.01 | |
| IFM-010070090 | Position Sensors - Laser - Cooling boxes and protective housings for O1D distance sensors | $0.01 | |
| IFM-010070110 | Position Sensors - Laser - O6 for industrial automation | $0.01 | |
| IFM-010070120 | Position Sensors - Laser - PMD Profiler for object profile checking | $0.01 | |
| IFM-010070130 | Position Sensors - Laser - Photoelectric fork sensors | $0.01 |
