Headline

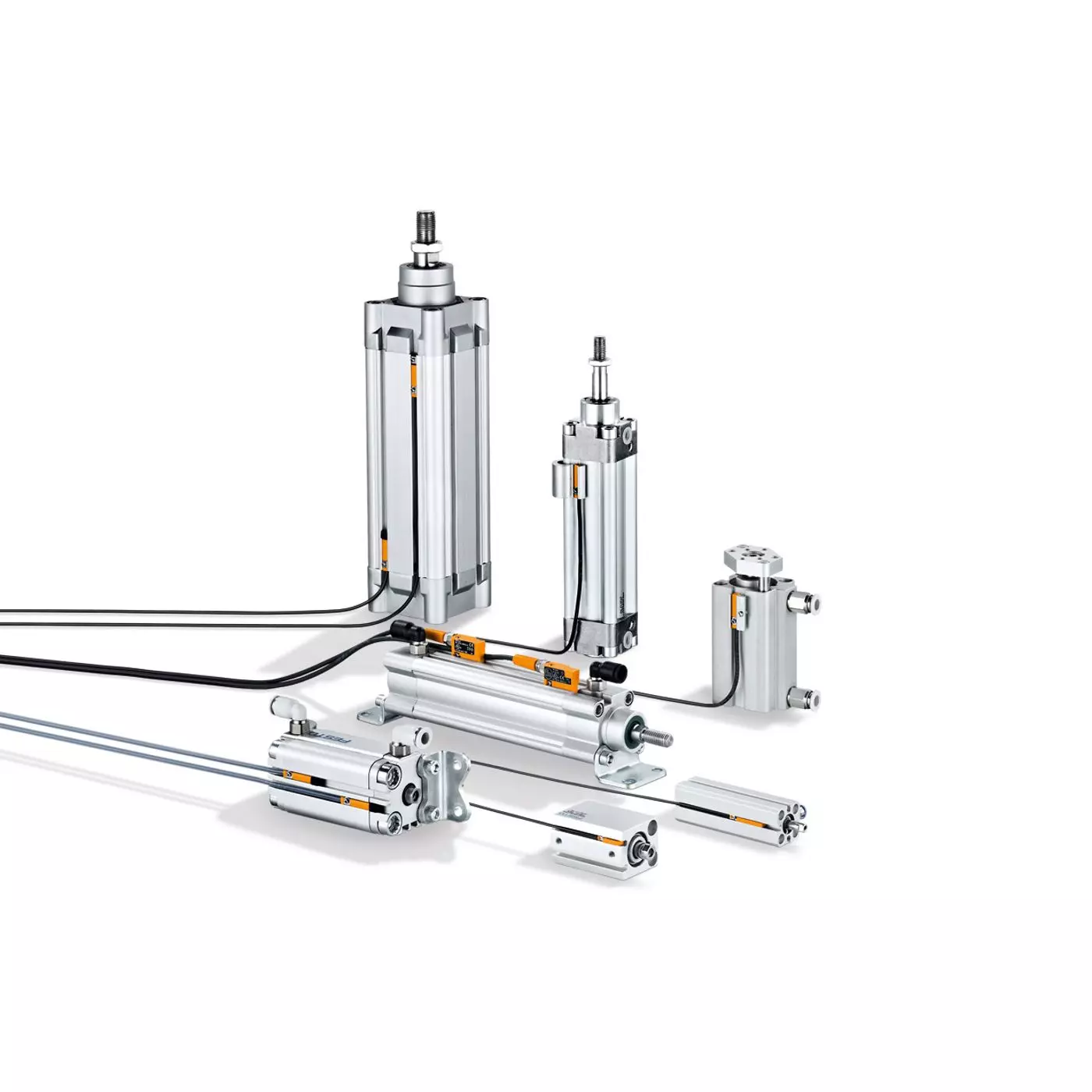

High load current for use on T-slot cylinders
T-slot cylinder sensors for applications with high load currents of up to 500 mA can be reliably adapted to all common cylinder types. The self-locking mechanism as well as the easy positioning in the T-slot allow comfortable one-hand installation. The sensor is fixed by a combined head screw. This also provides excellent strain relief. Thanks to the wide selection of adapter accessories the T-slot sensors can be fixed to almost every T-slot, clean line, tie rod, integrated profile or trapezoidal slot cylinder. Storage and mounting time can thus be reduced.
Features & Benefits
- Three-wire versions for the connection of a variety of controllers
- Wide operating temperature range
- Quick disconnect and prewired versions
- Self-locking fixture for quick mounting and easy adjustment
- Easy fit 'drop from the top' into a slot
Additional Notes
| MPN | Mounting | Output function | Output | Dimensions | Connection |
|---|---|---|---|---|---|
| MR0100 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 2 m PUR-Cable |
| MR0101 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
| MR0102 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
| MR0107 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
| MR0113 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
| MR0117 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 6 m PUR-Cable |
| MR0119 | flush mountable | normally open | AC/DC PNP | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
| MR0121 | flush mountable | normally open | AC/DC PNP | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
| MR0122 | flush mountable | normally open | AC/DC PNP | 30.5 x 5 x 6.5 mm | 2 m PUR-Cable |
| MR0123 | flush mountable | normally open | AC/DC PNP | 30.5 x 5 x 6.5 mm | 6 m PUR-Cable |
| MR0901 | non-flush mountable | normally open | AC/DC PNP/NPN | 27.5 x 18 x 15.5 mm | M8 Connector |
| MR0902 | non-flush mountable | normally open | AC/DC PNP | 27.5 x 18 x 15.5 mm | M8 Connector |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-010040010 | Position Sensors - Cylinder - T-slot sensors for industrial and high pressure cleaning | $0.01 | |
| IFM-010040020 | Position Sensors - Cylinder - C-slot sensors for industrial applications | $0.01 | |
| IFM-010040030 | Position Sensors - Cylinder - T-slot sensors with adapters for other types | $0.01 | |
| IFM-010040040 | Position Sensors - Cylinder - Hydraulic cylinder applications | $0.01 | |
| IFM-010040050 | Position Sensors - Cylinder - T-slot and C-slot sensors for welding applications | $0.01 |
