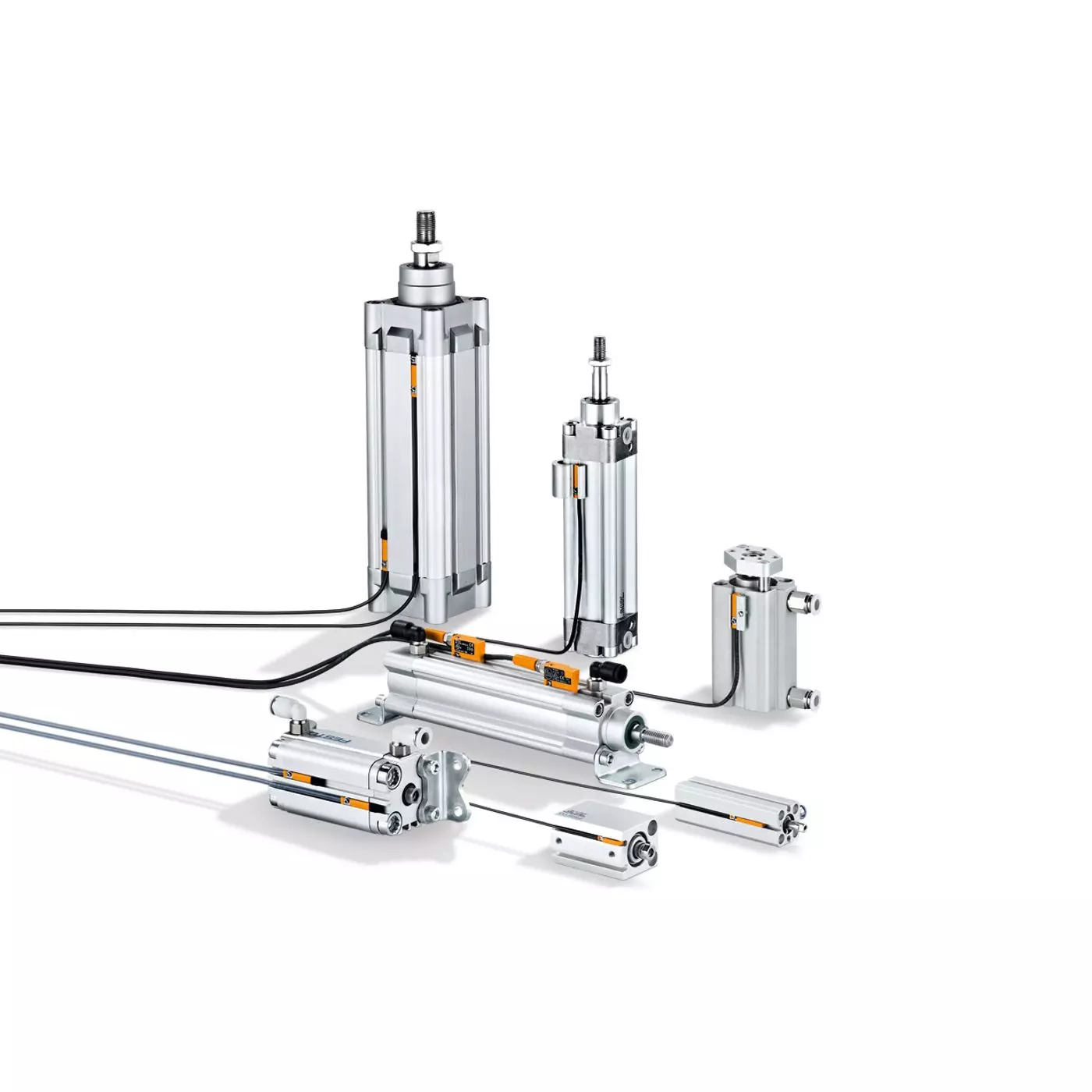

Position Sensors - Cylinder - T-slot sensors for industrial and high pressure cleaning

Product info
IFM | ifm
010 | Position Sensors
Position Sensors - Cylinder
IFM-010040010
ifm Logo
Description
IFM's 010.040.010 group of Position Sensors - Cylinder sensors -T-slot sensors for industrial and high pressure cleaning
Configuration
Base Model
Collection
010 | Position Sensors
Group
040 | Cylinder sensors
Options
Options
010
Additional Options
_ | N/A
Availability Call to confirm
Available to Order
Ships from PA
Typically ships within [ 2 ] days
24/7 Sales & Support 484-544-0506
Price
Save Compare
− +
Get a Quote
Product details Spot an error? Let us know!
Headline

Use on T-slot cylinders

The cylinder sensor can be easily inserted from above into the T-slot where it clicks home. For switch point positioning the sensor can simply be moved in the slot. It is fixed definitely using the slotted / hexagonal socket screw. Non-contact sensors virtually work without wear and often achieve a longer life than Reed switches. This saves expensive repair and downtimes.

Features & Benefits
  • Safe fastening in the slot to prevent mechanical stress
  • Easy fit 'drop from the top' into a slot
  • Quick disconnect and prewired versions
  • Molded cable provides very good strain relief
  • High protection rating for the requirements of harsh industrial environments
Additional Notes
MPN Mounting Output function Output Dimensions Connection
MK500A flush mountable normally open DC PNP 25 x 5 x 6.5 mm 2 m PUR-Cable
MK501A flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK502A flush mountable normally open DC NAMUR 25 x 5 x 6.5 mm 6 m PVC-Cable
MK503A flush mountable normally open DC PNP 25 x 5 x 6.5 mm 6 m PUR-Cable
MK5100 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 2 m PUR-Cable
MK5101 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5102 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5103 flush mountable normally open DC PNP/NPN 25 x 5 x 6.5 mm 2 m PUR-Cable
MK5104 flush mountable normally open DC PNP/NPN 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5105 flush mountable normally open DC PNP/NPN 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5106 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5107 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK5108 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK5109 flush mountable normally open DC PNP/NPN 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK5110 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 2 m PVC-Cable
MK5111 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PVC-Cable; M12 Connector
MK5112 flush mountable normally open DC NPN 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5113 flush mountable normally open DC NPN 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK5114 flush mountable normally open DC NPN 25 x 5 x 6.5 mm 2 m PUR-Cable
MK5115 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 2 m PUR-Cable
MK5116 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 1 m PUR-Cable; M12 Connector
MK5117 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 6 m PUR-Cable
MK5118 flush mountable normally closed DC PNP 25 x 5 x 6.5 mm 2 m PUR-Cable
MK5121 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.5 m PUR-Cable; M8 Connector
MK5122 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 1 m PUR-Cable; M8 Connector
MK5123 flush mountable normally open DC PNP/NPN 25 x 5 x 6.5 mm 6 m PUR-Cable
MK5124 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 10 m PUR-Cable
MK5127 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5128 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 6 m PVC-Cable
MK5130 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.5 m PUR-Cable; M12 Connector
MK5131 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 1 m PUR-Cable; M12 Connector
MK5137 flush mountable normally open DC NPN 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5138 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5139 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK5140 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 2 m PUR-Cable
MK5141 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 1 m PUR-Cable; M12 Connector
MK5142 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 2 m PUR-Cable; M12 Connector
MK5152 flush mountable normally open DC NPN 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5155 flush mountable normally closed DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5156 flush mountable normally closed DC PNP 25 x 5 x 6.5 mm 2 m PUR-Cable
MK5157 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PVC-Cable; M12 Connector
MK5158 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 2 m PVC-Cable
MK5159 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5161 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 10 m PUR-Cable
MK5171 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.5 m PUR-Cable; M8 Connector
MK5177 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 1.2 m PVC-Cable; M12 Connector
MK5186 flush mountable normally open DC NPN 25 x 5 x 6.5 mm 0.3 m PVC-Cable; M12 Connector
MK5192 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5196 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK5208 flush mountable 2 x normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5209 flush mountable 2 x normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK5214 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MK5215 flush mountable normally open DC PNP 25 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MK5900 non-flush mountable normally open DC PNP 27.5 x 18 x 15.5 mm M8 Connector
MR0100 flush mountable normally open AC/DC PNP/NPN 30.5 x 5 x 6.5 mm 2 m PUR-Cable
MR0101 flush mountable normally open AC/DC PNP/NPN 30.5 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MR0102 flush mountable normally open AC/DC PNP/NPN 30.5 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MR0107 flush mountable normally open AC/DC PNP/NPN 30.5 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MR0113 flush mountable normally open AC/DC PNP/NPN 30.5 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MR0117 flush mountable normally open AC/DC PNP/NPN 30.5 x 5 x 6.5 mm 6 m PUR-Cable
MR0119 flush mountable normally open AC/DC PNP 30.5 x 5 x 6.5 mm 0.3 m PUR-Cable; M8 Connector
MR0121 flush mountable normally open AC/DC PNP 30.5 x 5 x 6.5 mm 0.3 m PUR-Cable; M12 Connector
MR0122 flush mountable normally open AC/DC PNP 30.5 x 5 x 6.5 mm 2 m PUR-Cable
MR0123 flush mountable normally open AC/DC PNP 30.5 x 5 x 6.5 mm 6 m PUR-Cable
MR0901 non-flush mountable normally open AC/DC PNP/NPN 27.5 x 18 x 15.5 mm M8 Connector
MR0902 non-flush mountable normally open AC/DC PNP 27.5 x 18 x 15.5 mm M8 Connector
