Headline
Use on other cylinder types

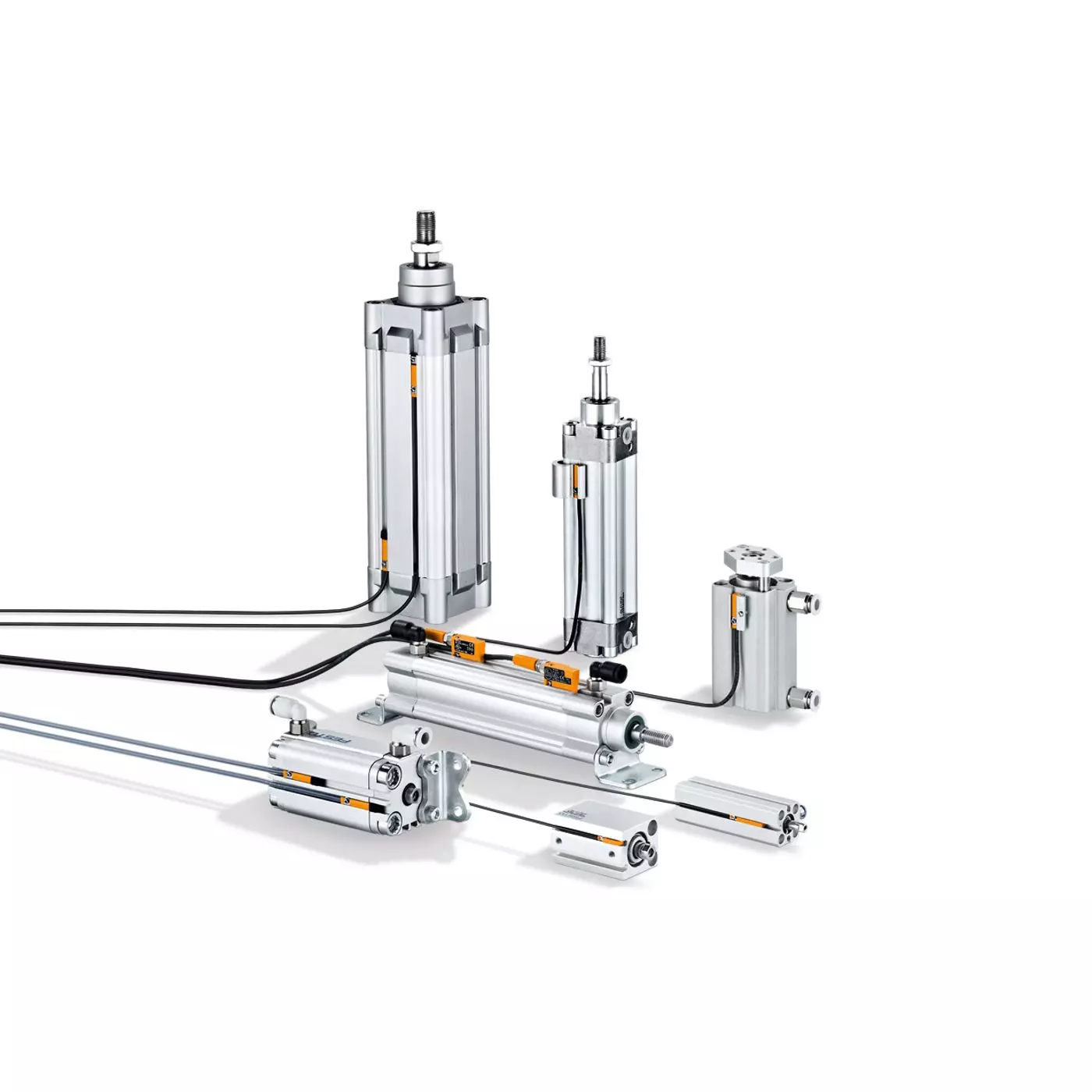

Thanks to the wide selection of adapter accessories the T-slot sensor can be fixed to almost every clean-line, tie rod, integrated profile or trapezoidal slot cylinder. The sensor is immediately locked in the slot by its self-locking mechanism. The moulded cable and fixing point additionally provide incomparable strain relief.
Features & Benefits
- Wide range of adapters
- Easy fit 'drop from the top' into a slot
- Very short length for different cylinder profiles
- Precise position detection
- Small hysteresis for exact switch point detection
Additional Notes
MPN | Mounting | Output function | Output | Dimensions | Connection |
---|---|---|---|---|---|
MK500A | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 2 m PUR-Cable |
MK501A | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK502A | flush mountable | normally open | DC NAMUR | 25 x 5 x 6.5 mm | 6 m PVC-Cable |
MK503A | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 6 m PUR-Cable |
MK5100 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 2 m PUR-Cable |
MK5101 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5102 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5103 | flush mountable | normally open | DC PNP/NPN | 25 x 5 x 6.5 mm | 2 m PUR-Cable |
MK5104 | flush mountable | normally open | DC PNP/NPN | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5105 | flush mountable | normally open | DC PNP/NPN | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5106 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5107 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK5108 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK5109 | flush mountable | normally open | DC PNP/NPN | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK5110 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 2 m PVC-Cable |
MK5111 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PVC-Cable; M12 Connector |
MK5112 | flush mountable | normally open | DC NPN | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5113 | flush mountable | normally open | DC NPN | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK5114 | flush mountable | normally open | DC NPN | 25 x 5 x 6.5 mm | 2 m PUR-Cable |
MK5115 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 2 m PUR-Cable |
MK5116 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 1 m PUR-Cable; M12 Connector |
MK5117 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 6 m PUR-Cable |
MK5118 | flush mountable | normally closed | DC PNP | 25 x 5 x 6.5 mm | 2 m PUR-Cable |
MK5121 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.5 m PUR-Cable; M8 Connector |
MK5122 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 1 m PUR-Cable; M8 Connector |
MK5123 | flush mountable | normally open | DC PNP/NPN | 25 x 5 x 6.5 mm | 6 m PUR-Cable |
MK5124 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 10 m PUR-Cable |
MK5127 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5128 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 6 m PVC-Cable |
MK5130 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.5 m PUR-Cable; M12 Connector |
MK5131 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 1 m PUR-Cable; M12 Connector |
MK5137 | flush mountable | normally open | DC NPN | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5138 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5139 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK5140 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 2 m PUR-Cable |
MK5141 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 1 m PUR-Cable; M12 Connector |
MK5142 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 2 m PUR-Cable; M12 Connector |
MK5152 | flush mountable | normally open | DC NPN | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5155 | flush mountable | normally closed | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5156 | flush mountable | normally closed | DC PNP | 25 x 5 x 6.5 mm | 2 m PUR-Cable |
MK5157 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PVC-Cable; M12 Connector |
MK5158 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 2 m PVC-Cable |
MK5159 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5161 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 10 m PUR-Cable |
MK5171 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.5 m PUR-Cable; M8 Connector |
MK5177 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 1.2 m PVC-Cable; M12 Connector |
MK5186 | flush mountable | normally open | DC NPN | 25 x 5 x 6.5 mm | 0.3 m PVC-Cable; M12 Connector |
MK5192 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5196 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK5208 | flush mountable | 2 x normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5209 | flush mountable | 2 x normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK5214 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MK5215 | flush mountable | normally open | DC PNP | 25 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MK5900 | non-flush mountable | normally open | DC PNP | 27.5 x 18 x 15.5 mm | M8 Connector |
MR0100 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 2 m PUR-Cable |
MR0101 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MR0102 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MR0107 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MR0113 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MR0117 | flush mountable | normally open | AC/DC PNP/NPN | 30.5 x 5 x 6.5 mm | 6 m PUR-Cable |
MR0119 | flush mountable | normally open | AC/DC PNP | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M8 Connector |
MR0121 | flush mountable | normally open | AC/DC PNP | 30.5 x 5 x 6.5 mm | 0.3 m PUR-Cable; M12 Connector |
MR0122 | flush mountable | normally open | AC/DC PNP | 30.5 x 5 x 6.5 mm | 2 m PUR-Cable |
MR0123 | flush mountable | normally open | AC/DC PNP | 30.5 x 5 x 6.5 mm | 6 m PUR-Cable |
MR0901 | non-flush mountable | normally open | AC/DC PNP/NPN | 27.5 x 18 x 15.5 mm | M8 Connector |
MR0902 | non-flush mountable | normally open | AC/DC PNP | 27.5 x 18 x 15.5 mm | M8 Connector |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
IFM-010040010 | Position Sensors - Cylinder - T-slot sensors for industrial and high pressure cleaning | $0.01 | |
IFM-010040020 | Position Sensors - Cylinder - C-slot sensors for industrial applications | $0.01 | |
IFM-010040040 | Position Sensors - Cylinder - Hydraulic cylinder applications | $0.01 | |
IFM-010040050 | Position Sensors - Cylinder - T-slot and C-slot sensors for welding applications | $0.01 | |
IFM-010040060 | Position Sensors - Cylinder - T-slot reed switches with adapters for other types | $0.01 |
