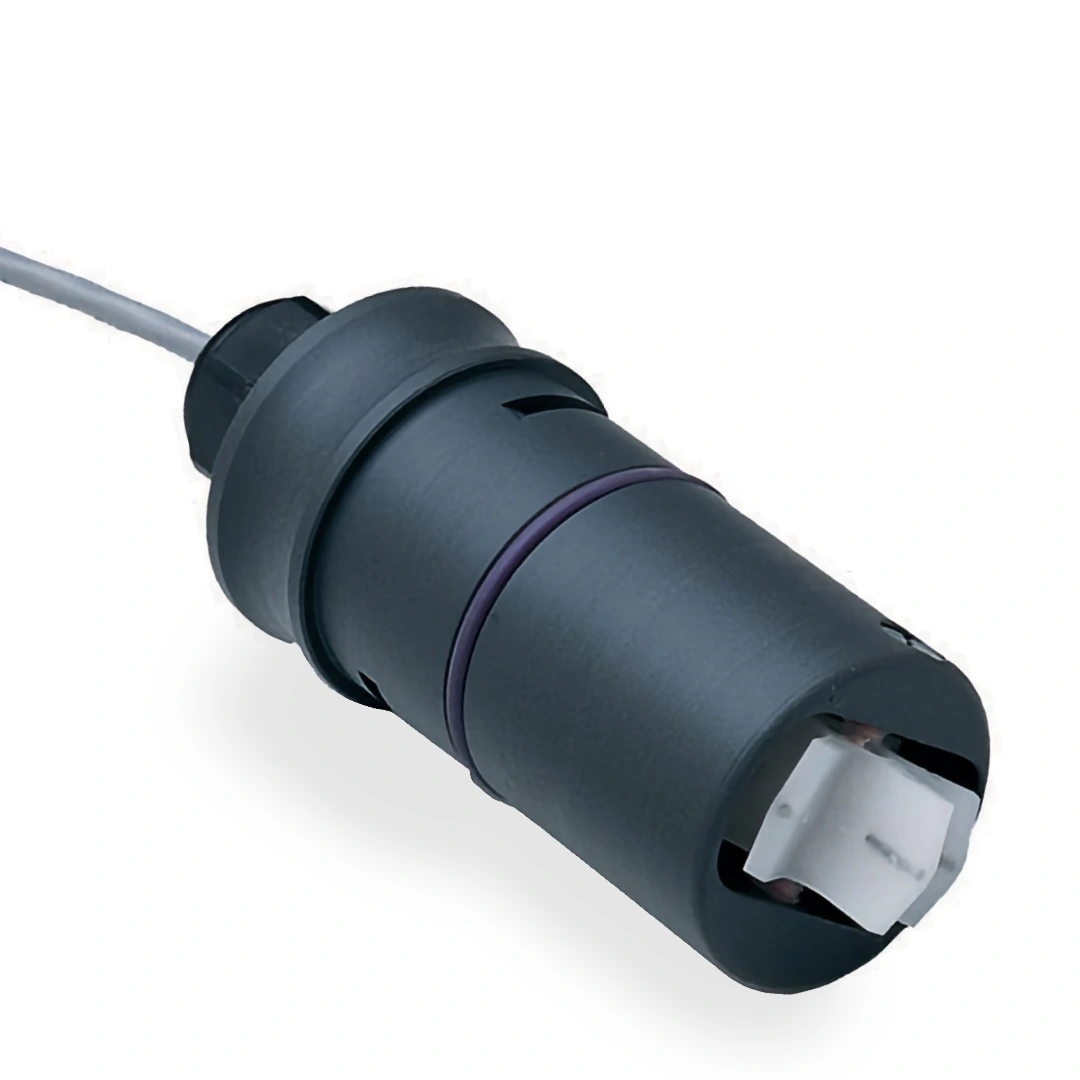

IP800
Fixed Depth Insertion Paddlewheel

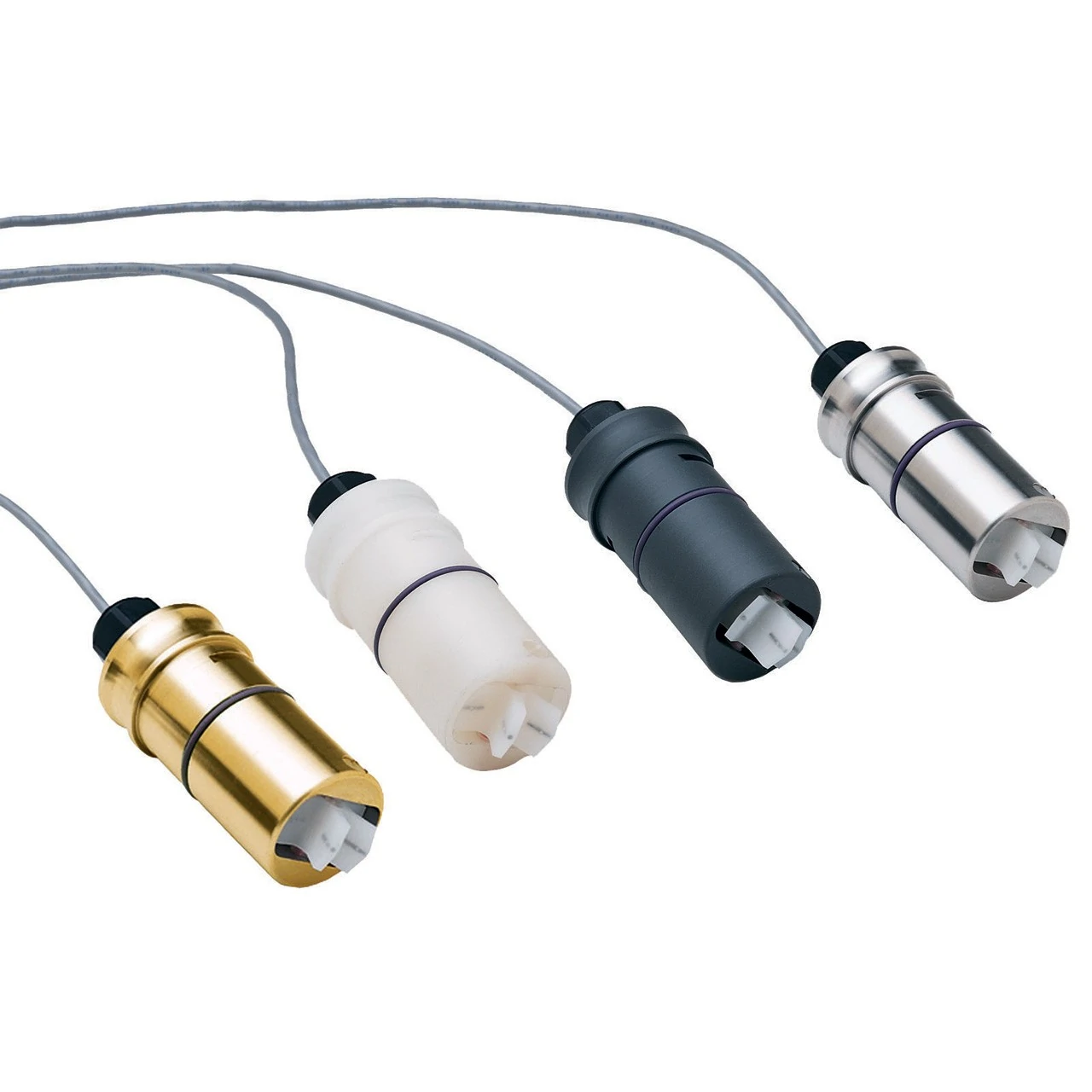

The IP800-Series are impeller (or "paddlewheel") insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2" to 8". Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured.
Features & Benefits
Key Features
Performance & Durability
- High-quality ruby bearings for excellent low-flow performance and long life
- One easily-replaced moving part
- Pickup exerts no magnetic drag on the rotor
Connectivity & Control
- Square-wave frequency output can connect directly to PLCs or counter controls
- Indicator or transmitter can be mounted on the flowmeter or remote
Installation Flexibility
- Fittings are available in a wide variety of materials and sizes
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| SEA-IP817B | IP817B | Fixed Depth Insertion Paddlewheel Meter - Brass - 1/2"-3" - FT450 | $1,547.00 | |
| SEA-IP817S | IP817S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 1/2"-3" - FT450 | $1,560.00 | |
| SEA-IP817SHP | IP817S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres,1/2"-3" - FT450 | $1,920.00 | |
| SEA-IP817Y | IP817Y | Fixed Depth Insertion Paddlewheel Meter - Polypro,1-1/2'-3" - FT450 | $1,392.00 | |
| SEA-IP827B | IP827B | Fixed Depth Insertion Paddlewheel Meter - Brass - 4"-8" - FT450 | $1,625.00 | |
| SEA-IP827P | IP827P | Fixed Depth Insertion Paddlewheel Meter - PVC - 4"-8" - FT450 | $1,365.00 | |
| SEA-IP827S | IP827S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 4"-8" - FT450 | $1,637.00 | |
| SEA-IP827SHP | IP827S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres - 4"-8" - FT450 | $1,901.00 | |
| SEA-IP827Y | IP827Y | Fixed Depth Insertion Paddlewheel Meter - Polypro - 4"-8" - FT450 | $1,428.00 |
