Headline
IP800
Fixed Depth Insertion Paddlewheel

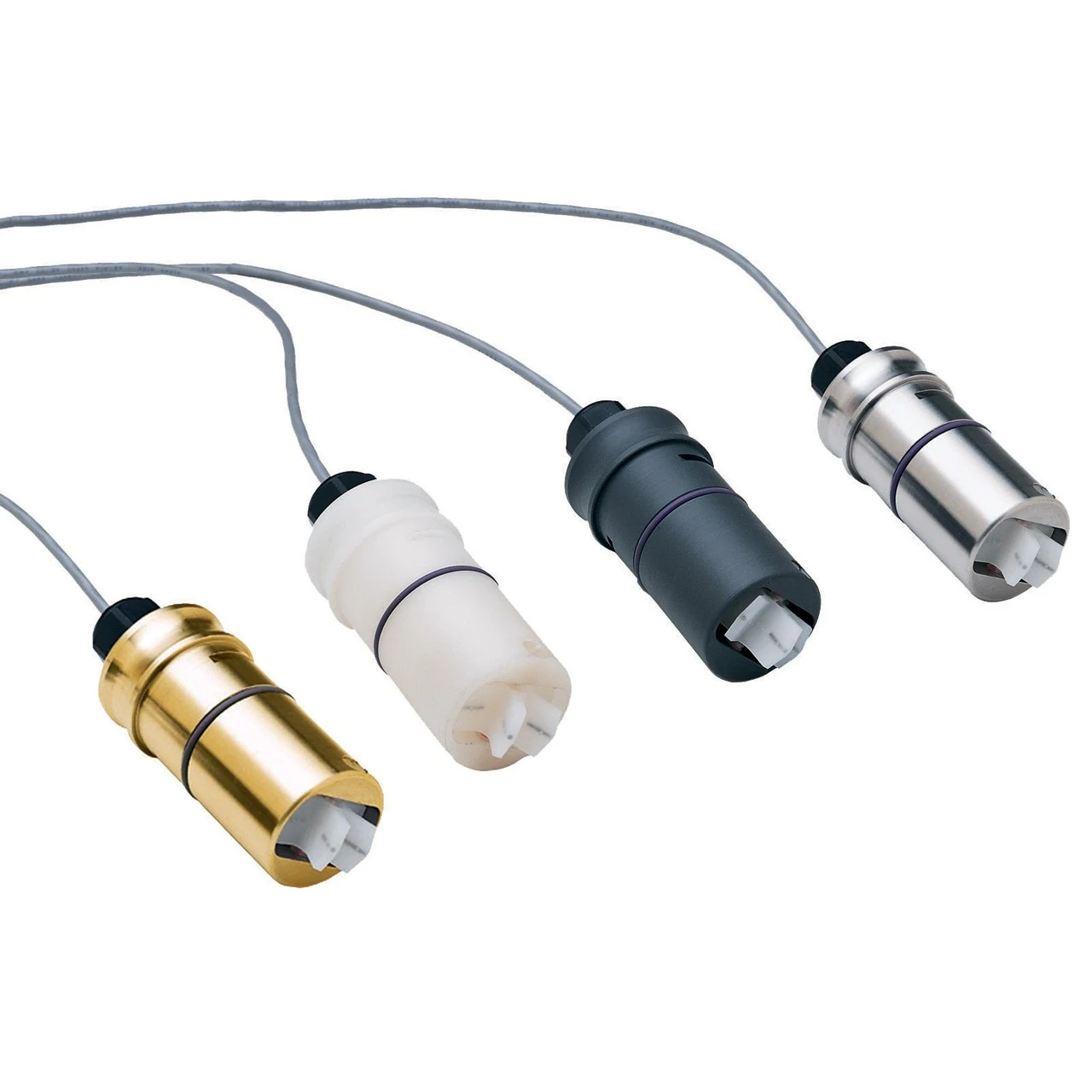

The IP800-Series are impeller (or “paddlewheel”) insertion meters designed for use with a wide variety of liquids in pipe sizes 1/2” to 8”. Sensors are available in brass, 316 stainless steel, PVC, and polypropylene. Bodies are machined from a solid rod for maximum precision. High quality jewel bearings and nickel-bound tungsten carbide shafts are used for extreme low friction and long life. Low-flow performance is good, although other Seametrics flow meters are recommended where extremely low flows are being measured.
Features & Benefits
Features:
- High-quality ruby bearings for excellent low-flow performance and long life
- One easily-replaced moving part
- Pickup exerts no magnetic drag on the rotor
- Square-wave frequency output can connect directly to PLC's or counter controls

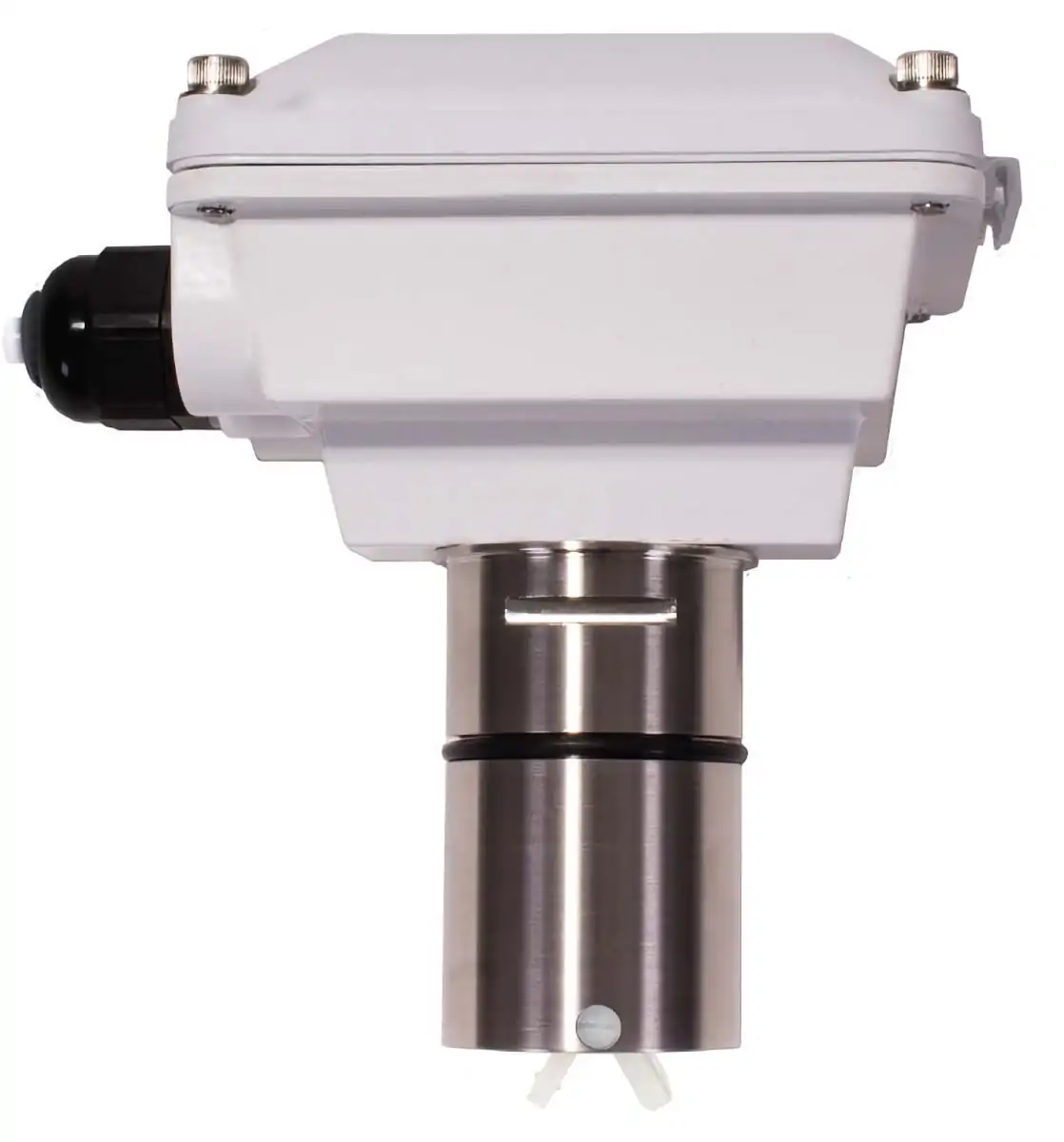

- Indicator or transmitter can be mounted on the flowmeter or remote
- Fittings are available in a wide variety of materials and sizes
Additional Notes
Specs | Value | ||||||
---|---|---|---|---|---|---|---|
Pipe Size | 1/2” to 8” | ||||||
Power | Low Power: 6-36 Vdc/< 2 mA Micropowered (-04 Option): 3.1-16 Vdc/60 μA @ 3.6 Vdc | ||||||
Sensor | Low Power: Digital Magnetoresistive Micropowered (-04 Option): Giant Magnetoresistance (GMR) | ||||||
Optional Housing Materials | Powder-coated cast aluminum | ||||||

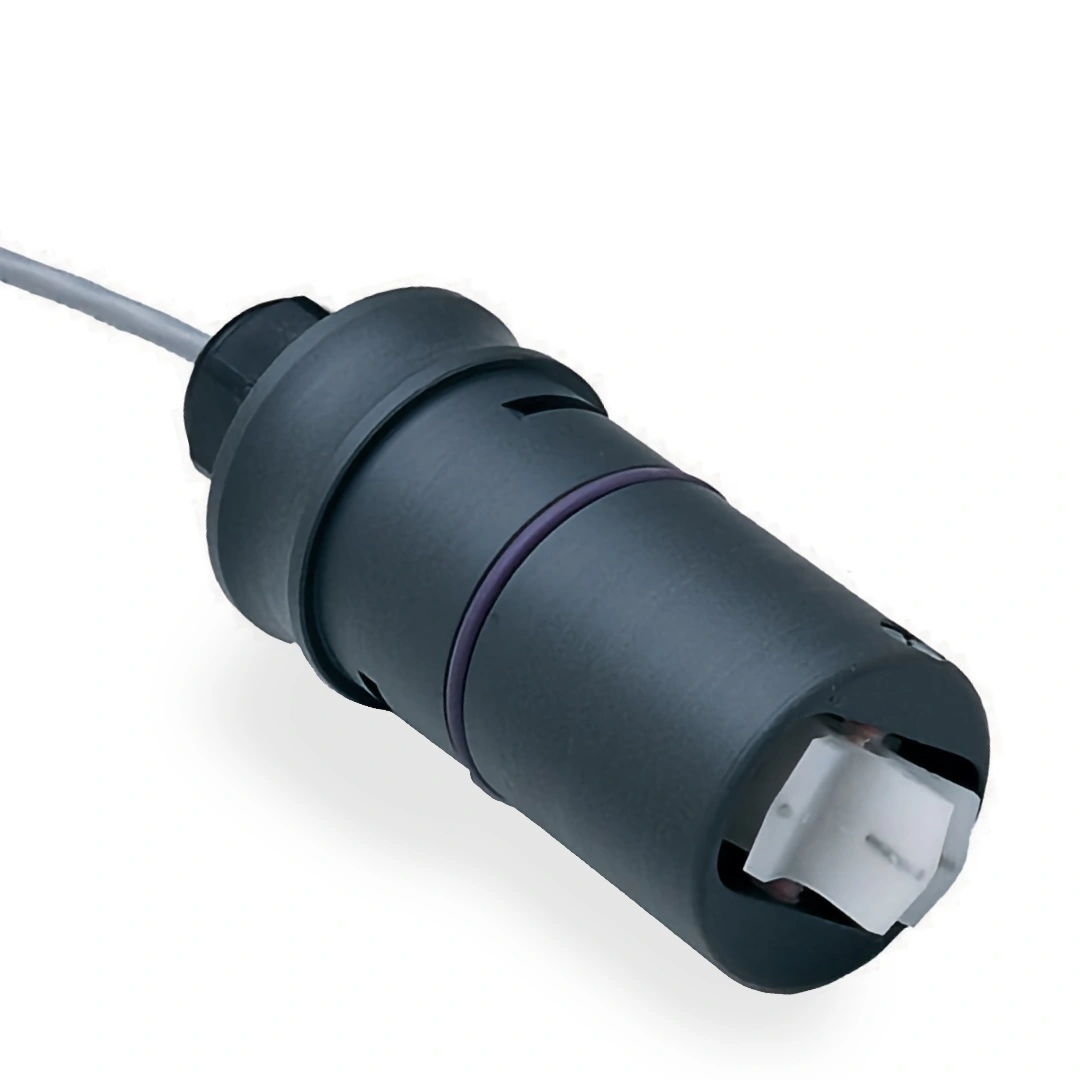

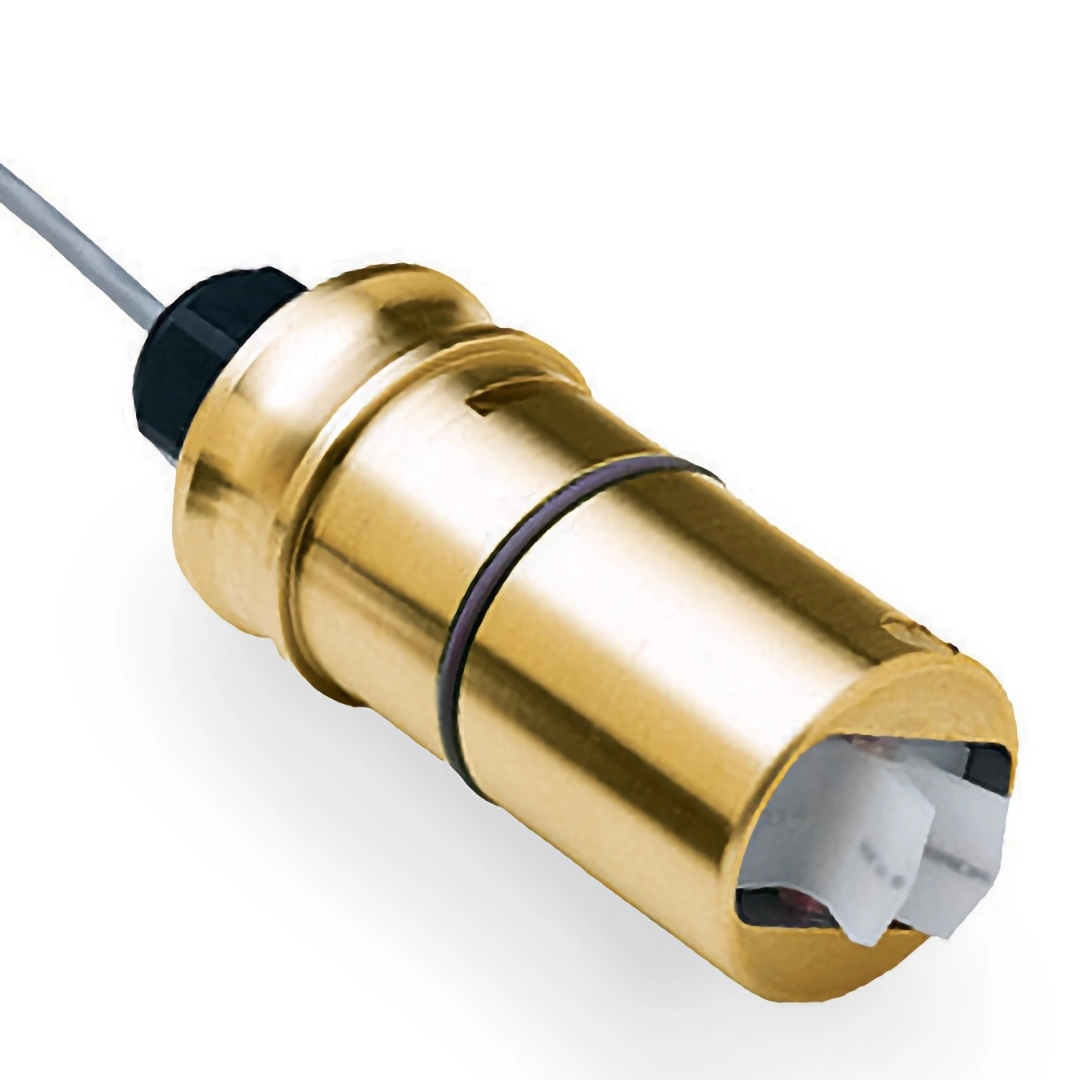

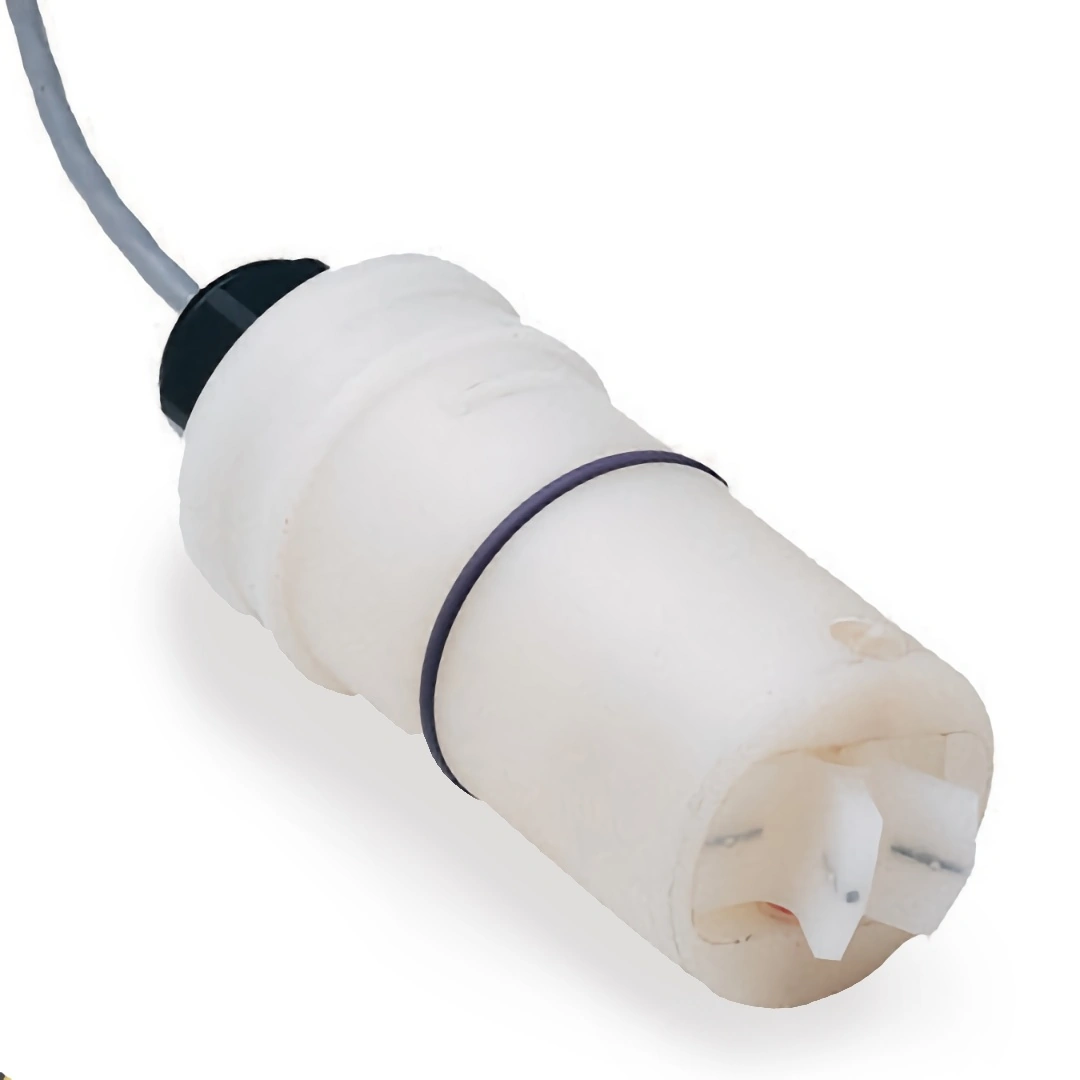

Sensor Body Materials | Brass, 316 Stainless Steel, PVC, or Polypropylene | ||||||
O-ring Materials | EPDM (Viton optional) | ||||||
Rotor Materials | PVDF (Kynar) | ||||||
Shaft Materials | Kynar /Tungsten Carbide (Kynar /Ceramic or Kynar/Silicon Carbide optional) | ||||||
Bearings Materials | Ruby jewel | ||||||
Flow Velocity | 0.3 to 30 ft/sec (0.09 to 9.14 m/sec) | ||||||
Accuracy | ± 1.5% of full scale | ||||||
Output Transistor Maximum Current Sinking | 150mA (low power version only) | ||||||
Cable | #22 AWG 3-con, 18’ (6m); 2,000’ (610m) maximum cable run Note: 50’ (15m) maximum for battery powered or micropowered versions. | ||||||
Environmental | See meter mounted electronics specification for rating | ||||||
Regulatory | Mark |
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
SEA-IP817B | IP817B | Fixed Depth Insertion Paddlewheel Meter - Brass - 1/2"-3" - FT450 | $1,363.00 | |
SEA-IP817P | IP817P | Fixed Depth Insertion Paddlewheel Meter - PVC - 1/2"-3" - FT450 | $1,177.00 | |
SEA-IP817S | IP817S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 1/2"-3" - FT450 | $1,374.00 | |
SEA-IP817SHP | IP817S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres,1/2"-3" - FT450 | $1,691.00 | |
SEA-IP817Y | IP817Y | Fixed Depth Insertion Paddlewheel Meter - Polypro,1-1/2'-3" - FT450 | $1,226.00 | |
SEA-IP827B | IP827B | Fixed Depth Insertion Paddlewheel Meter - Brass - 4"-8" - FT450 | $1,431.00 | |
SEA-IP827P | IP827P | Fixed Depth Insertion Paddlewheel Meter - PVC - 4"-8" - FT450 | $1,202.00 | |
SEA-IP827S | IP827S | Fixed Depth Insertion Paddlewheel Meter - 316 SS - 4"-8" - FT450 | $1,442.00 | |
SEA-IP827SHP | IP827S-HP | Fixed Depth Insertion Paddlewheel Meter - 316 SS - Hi Pres - 4"-8" - FT450 | $1,674.00 | |
SEA-IP827Y | IP827Y | Fixed Depth Insertion Paddlewheel Meter - Polypro - 4"-8" - FT450 | $1,258.00 |
