Headline
NexSys control system

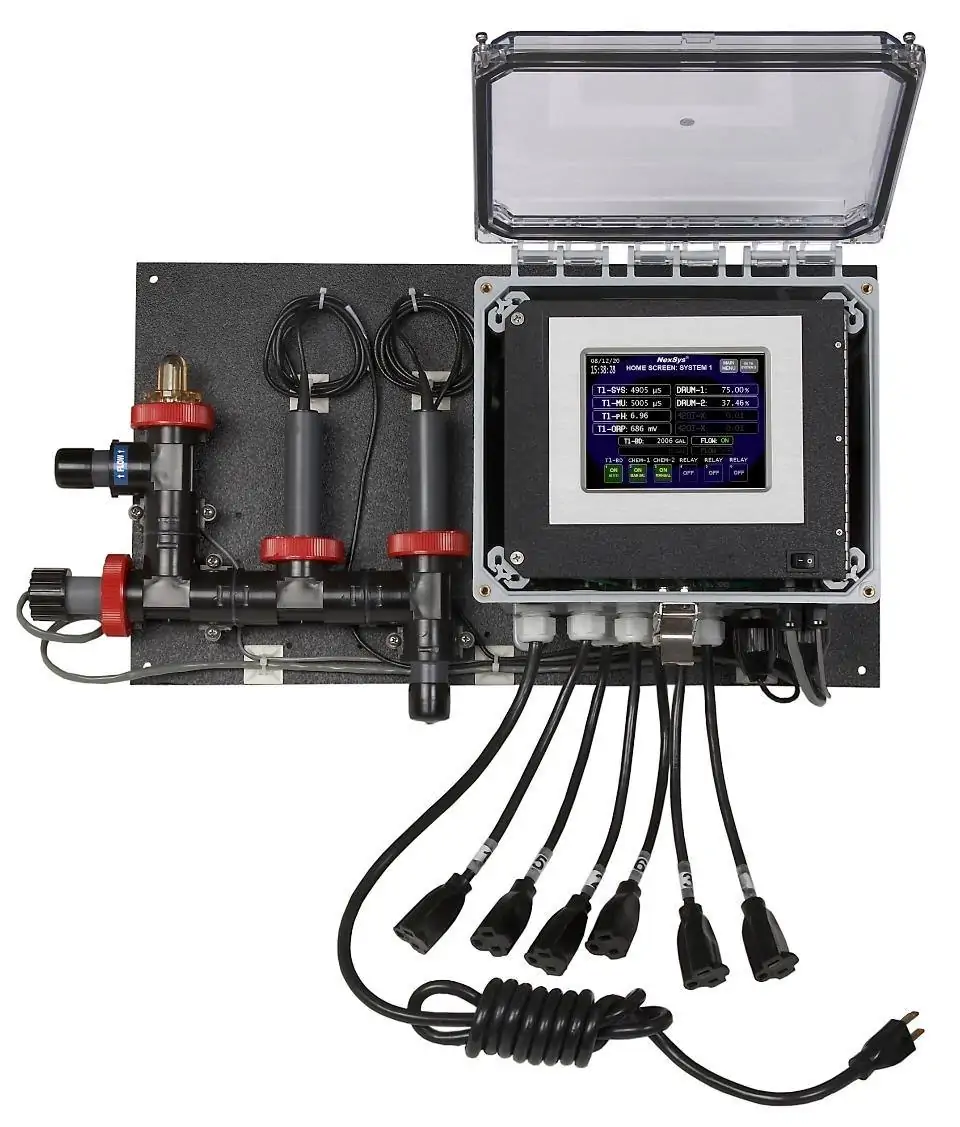

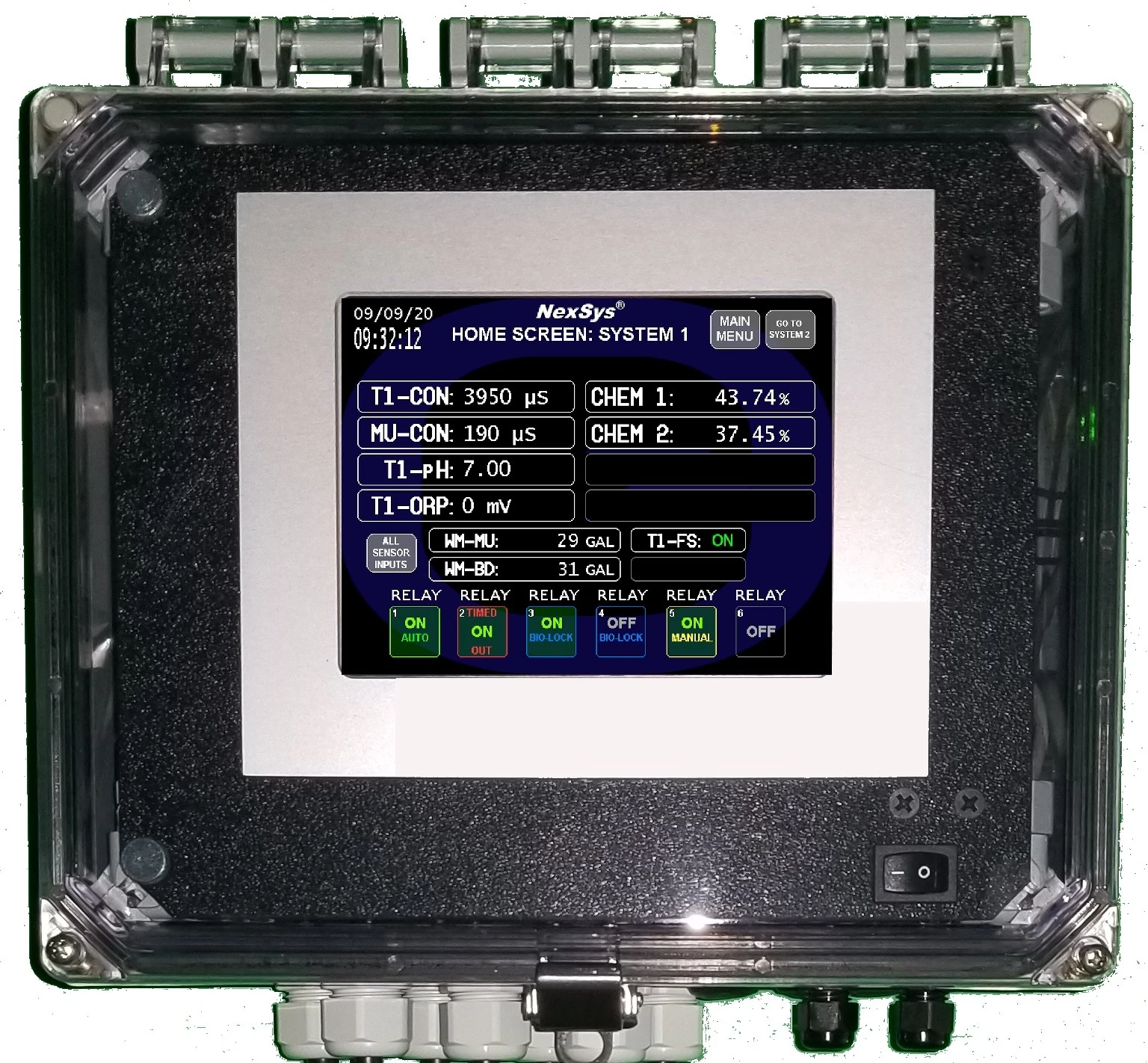

The NexSys control system is the latest in a long line of reliable, easy to use controllers from Lakewood Instruments. The NexSys control system uses the latest in microprocessor technology with a 5.7” Color Touch Screen interface for a high level of application flexibility.
Additional Notes
Specifications
- Touch Screen Interface: 5.7” diagonal viewing area
- Relay ratings: 120VAC 3A per relay 15A total
- Display size: 115X86 mm
- Enclosure: NEMA 4X, ETL
- Pixel: 320X240
- Color: TFT 65536
- Backlight: LED or CCFL
- Power: 120/240 VAC 50/60 Hz
NXC Wiring:
Dimensional drawings
Alternate configurations
SKU | Description | List price | - |
---|---|---|---|
LWI-1269424 | 1269424 | NexSys Controller - Multi-Cooling Tower & Process - Controller Only | $3,769.00 | |
LWI-1269472 | 1269472 | NexSys Controller - Cooling Tower - 1 Conductivity & 1 ORP Sensor - Flow Switch Plumbing | $5,528.00 | |
LWI-1269493 | 1269493 | NexSys Controller - Cooling Tower - 1 Conductivity & 1 pH Sensor - Flow Switch Plumbing - Mounted | $5,721.00 | |
LWI-1269496 | 1269496 | NexSys Controller - Cooling Tower - 1 Conductivity & 1 pH Sensor - Flow Switch Plumbing | $5,528.00 | |
LWI-1269502 | 1269502 | NexSys Controller - Cooling Tower - 1 Conductivity Sensor - Flow Switch Plumbing | $4,640.00 | |
LWI-1269505 | 1269505 | NexSys Controller - Cooling Tower - 1 Conductivity & 1 ORP Sensor - 4 Analog inputs - Flow Switch Plumbing | $6,116.00 | |
LWI-1269507 | 1269507 | NexSys Controller - Cooling Tower - 1 Conductivity, 1 pH, & 1 ORP Sensor - Flow Switch Plumbing - Mounted | $6,608.00 | |
LWI-1269593 | 1269593 | NexSys Controller - Cooling Tower - 1+1 Conductivity Sensors - 2 Flow Switches w/ Tees | $5,708.00 | |
LWI-1269597 | 1269597 | NexSys Controller - Cooling Tower - 1 Conductivity Sensor - 4 Analog inputs - Flow Switch Plumbing - Mounted | $5,421.00 | |
LWI-1269650 | 1269650 | NexSys Controller - Cooling Tower - 1 Conductivity & 1 ORP Sensor - 4 Analog inputs - Flow Switch - Mounted | $6,309.00 | |
LWI-1269794 | 1269794 | NexSys Controller - Cooling Tower - 1 Conductivity & 1 ORP Sensor - Flow Switch Plumbing - Mounted | $5,721.00 | |
LWI-1269839 | 1269839 | NexSys Controller - Two Cooling Towers - 2+2 Conductivity Sensors - 2 Flow Switch Plumbing - Dual Mounted | $8,159.00 | |
LWI-1269908 | 1269908 | NexSys Controller - Cooling Tower - 2 Conductivity, 1 pH, & 1 ORP Sensor - Flow Switch Plumbing | $7,286.00 |
