Headline
NexSys control system
The NexSys control system is the latest in a long line of reliable, easy to use controllers from Lakewood Instruments. The NexSys control system uses the latest in microprocessor technology with a 5.7” Color Touch Screen interface for a high level of application flexibility.

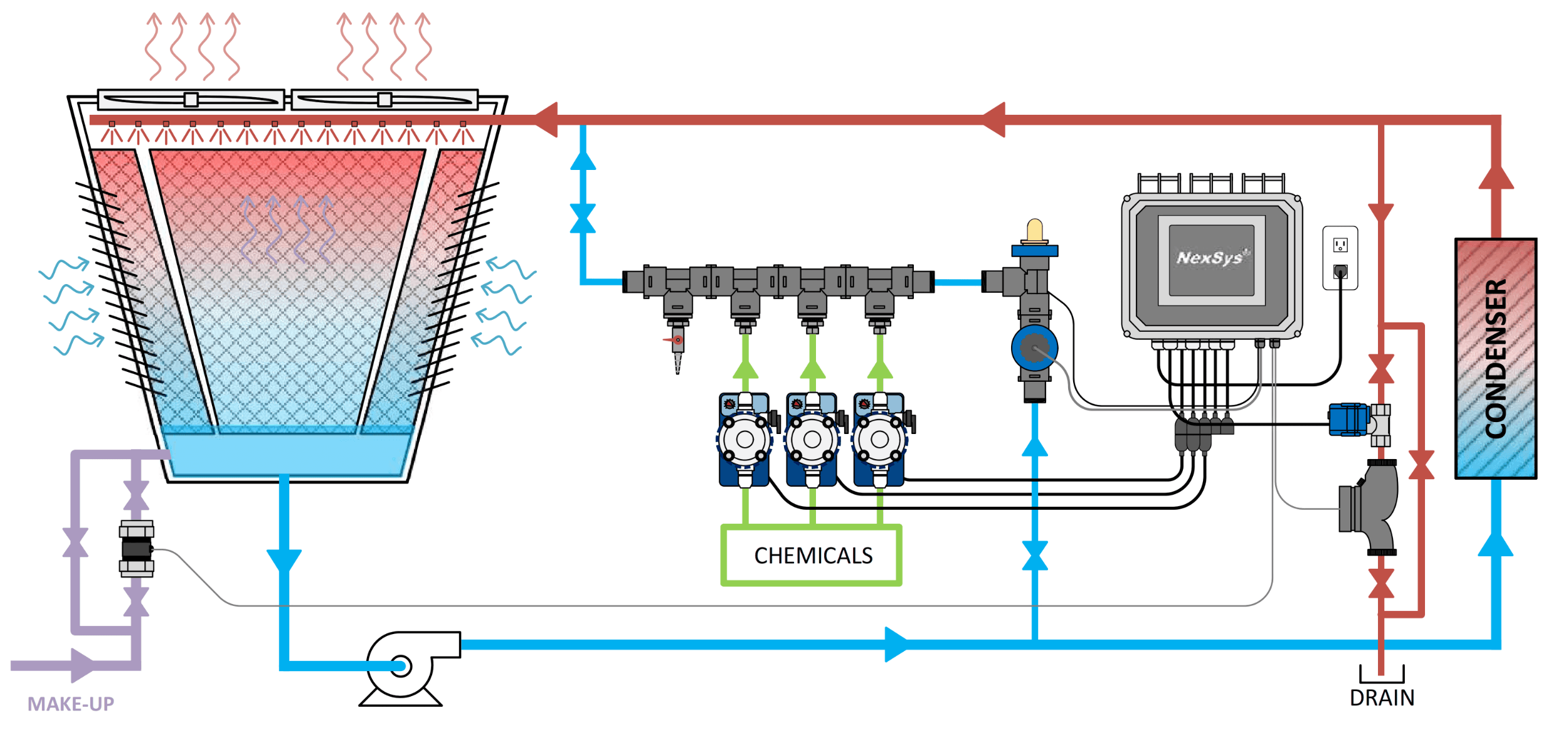

NXC - Cooling Tower
NXB - Boiler
Features & Benefits
Features:
- The NexSys control system has an astounding array of built-in features such as:
- LonWorks, MODbus, and BACnet communications interface
- Ethernet capability through an HTML interface
- The capability to send E-service reports to a subscribed service
- The ability to display operating values with time and date stamps on color coded graphs with zoom and scroll features
- Up to eight active sensor inputs: 2 tower cond, 2 M/U cond, pH and ORP
- Trace chemistry capable with user definable correction factors as part of the programming
- Two water meter inputs with field expansion capability to four
- Enclosure is NEMA 4X rated
- Two flow switch inputs configurable to any relay output
- Ability to add up to eight 4-20mA input readings
- Ability to add four digital inputs
- Ability to mount every sensor/input up to 400 meters away from the controller via 4-wire twisted pair
- Ability to control the chemistry in two towers at the same time
- Six relay outputs expandable to ten relay outputs for user configurable operations such as:
- Feed by Percent of Blowdown Time
- Feed by Setpoint with Percent of Time Feature as Part of Spaced Feed
- Trace Chemistry Control
- By Makeup Totalized Gallons
- By Blowdown Totalized Gallons
- By Percent On-Time
- By Scheduled Feed by Day and Time
- As an Alarm Relay by User Selectable Alarms
- On-board Help Screens with wiring, programming, and maintenance instructions
- Left or Right Exit plumbing assemblies available
Additional Notes
Specifications
- Touch Screen Interface: 5.7” diagonal viewing area
- Relay ratings: 120VAC 3A per relay 15A total
- Display size: 115X86 mm
- Enclosure: NEMA 4X, ETL
- Pixel: 320X240
- Color: TFT 65536
- Backlight: LED or CCFL
- Power: 120/240 VAC 50/60 Hz
Wiring:
NXC - Cooling Tower
NXB - Boiler
Dimensional drawings
