UD001 | Metering Pump - Drive Only

Product info Show all specs
LMU | Uni-Dose
UD | Uni-Dose UD
UD | UniDose Chlorine Injection Pumps
LMU-UD001
UniDose logo
Description
Uni-Dose's UD Chemical Feed Pump is rated to an Output Range of 1-24 GPD (4-90 LPD), Max Pressure of 80 PSI, and a manually controlled Stroke Rate up to 160 SPM. Universal power supply with US 115V or US 230V cords available.
Key Specs
Feed Max
1 GPH
Feed Min
0.01 GPH
Pressure Max
80 psi
Stroke Rate
160 SPM
Configuration
Base Model
Series
UD | Uni-Dose
Control Option
0 | Manual: Speed Control
Output Capacity
0 | 24 GPD (3.8 LPH); 80 psi (5.5 bar)
Power Option
Power Cord
1 | 115V US Plug
Availability Call to confirm
Available to Order
Ships from FL - OH - TX
Typically ships within [ 1 ] days
24/7 Sales & Support 484-544-0506
Price
Save Compare
$381.50
 $349.00 Your price 9 %
− +
Product details Spot an error? Let us know!
Headline

The UniDose [ UD ] replaces all prior [ U ] models

The only selection required is the power plug.

Standard Voltage - US 115V Plug - UD001

  1. UD001-238NU

High Voltage - US 230V Plug - UD002

  1. UD002-238NU

Note: If connecting directly to a junction box (not using plug), either cord option will work (115 - 230V power supply)

Features & Benefits

Design Improvements

UniDose UD Upgrade

Additional Notes

What's included with the UD Pump:

UniDose UD - What's included in the Box

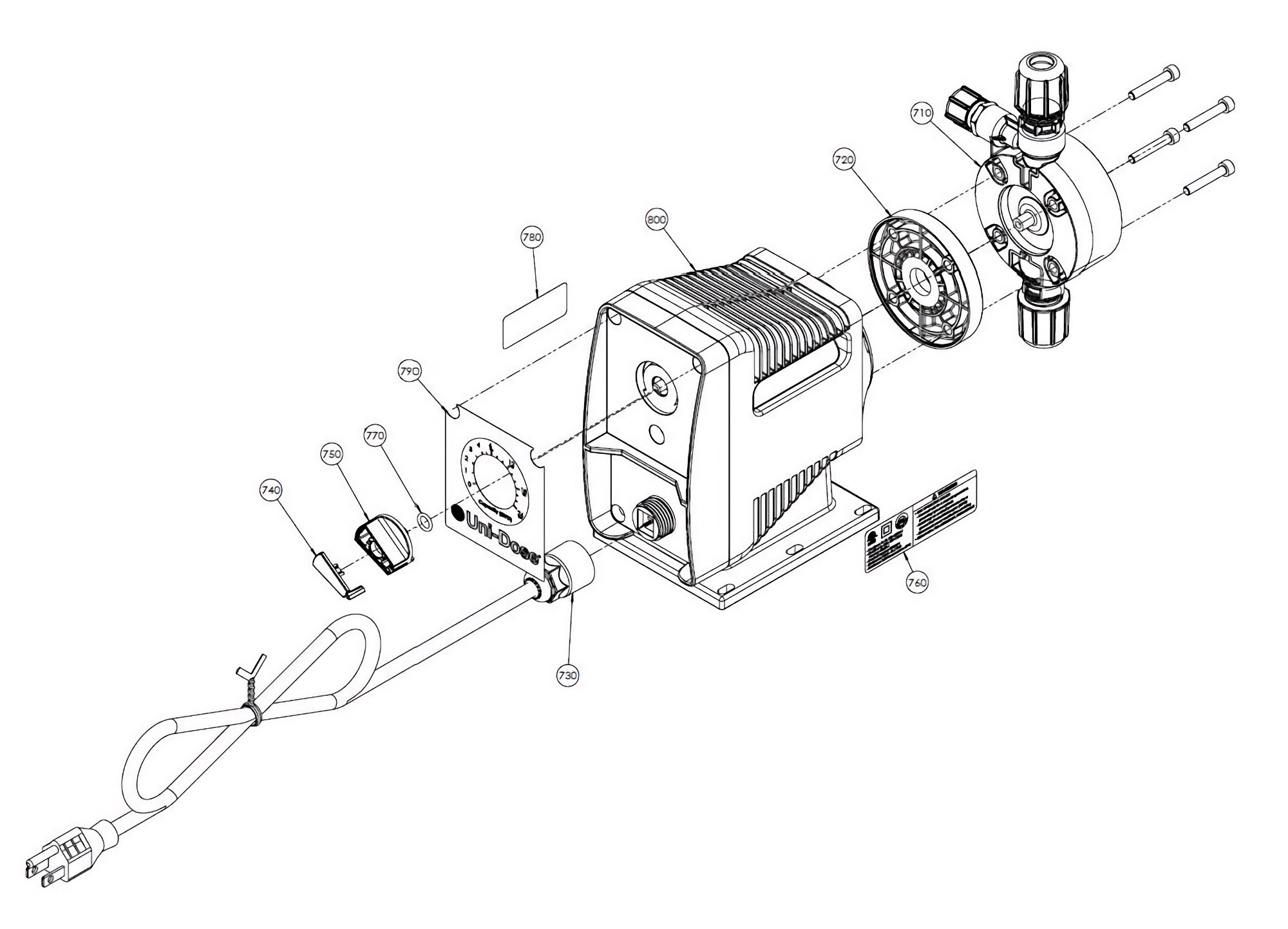

Exploded view
