Uni-DoseFeed Max
1 GPH
Feed Min
0.01 GPH
Pressure Max
80 psi
Stroke Rate
160 SPM

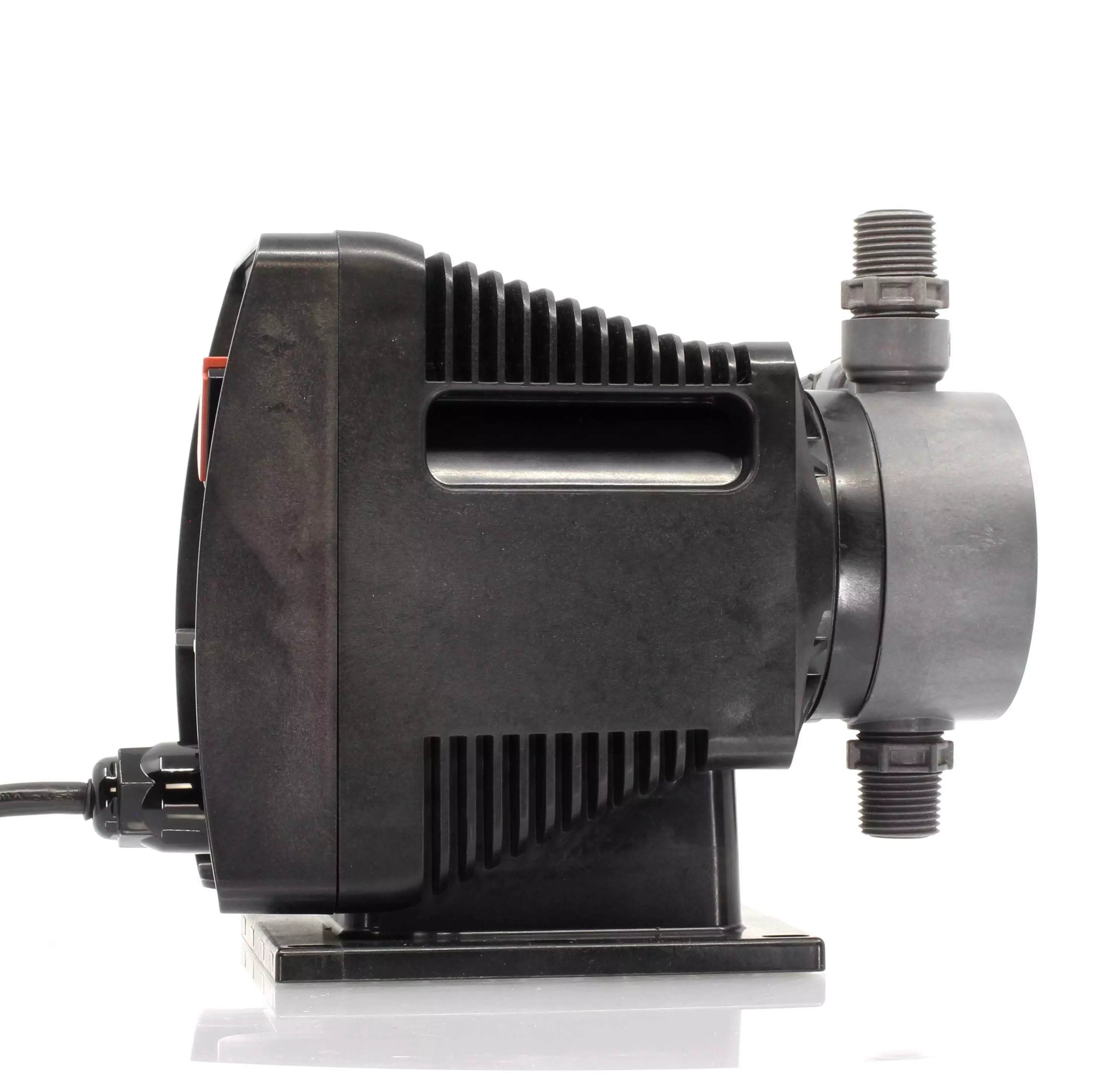

UniDose's UD Series Chemical Feed Pump is designed to pump Chlorine (Bleach), Rust Removers (Iron Inhibitors), and other chemicals into Well Water and Irrigation systems. . It includes everything for new installation - foot valve, weight, pump, injection valve, tubing, and tubing connections. The pump can be adjusted from 1 to 24 Gallons per Day (GPD) up to a Max Pressure of 80 PSI . Universal power supply with US 115V or US 230V power cords available. Manufactured by LMI. \ Replaces all legacy UniDose U Pump Models (e.g. U041-281TT, U141-281TT, etc.)
24/7 Sales support
Free shipping over $500
Lifetime tech support
$572.50
$419.00
Availability
In stock
Lead time
1 day
Ships from
FL - OH - TX
FL - OH - TX
Questions? Urgent request?
Call or text 24/7: +1 (484) 544-0506
Contact us
Feed Max
1 GPH
Feed Min
0.01 GPH
Pressure Max
80 psi
Stroke Rate
160 SPM
Base Model
UD
SeriesUni-Dose
0
Control OptionManual: Speed Control
0
Output Capacity24 GPD (3.8 LPH); 80 psi (5.5 bar)
Power Option
1
Power Cord115V US Plug
Liquid End Option
238NU
Liquid End TypeUD - FastPrime Molded - PVC Head - Ceramic Balls - Aflas O-rings - UV Resistant Tubing
Product details
Performance
Accuracy
3 %
Feed Max
1 GPH
Feed Min
0.01 GPH
Pressure Max
80 psi
Stroke Rate
160 SPM
Suction Lift
5 ft
Turndown Ratio
100 N:1
Design
Control Methods
Manual | Stroke Frequency (Speed) Control
Power Connections
US 115V - NEMA 5/15 - Type B
Power Input
36 W
Power Supply
Universal or Dual 115/230V
Stroke Volume
0.39 ml
Features
Auto Degas
No | Not Included
Flow Measurement
No | Not Included
Flow Verification
No | Not Included
High Viscosity
No | Not Included
Leak Detection
No | Not Included
Temp Sensor
No | Not Included
