LMI Peristaltic Metering Pumps

Name: LMI Peristaltic Metering Pumps
Brand: LMI
SKU: LMI-K
Price: 3720 USD
Availability: InStock

LMI | LMI

K | KBL Series Peristaltic Metering Pumps - 158 GPH

Description

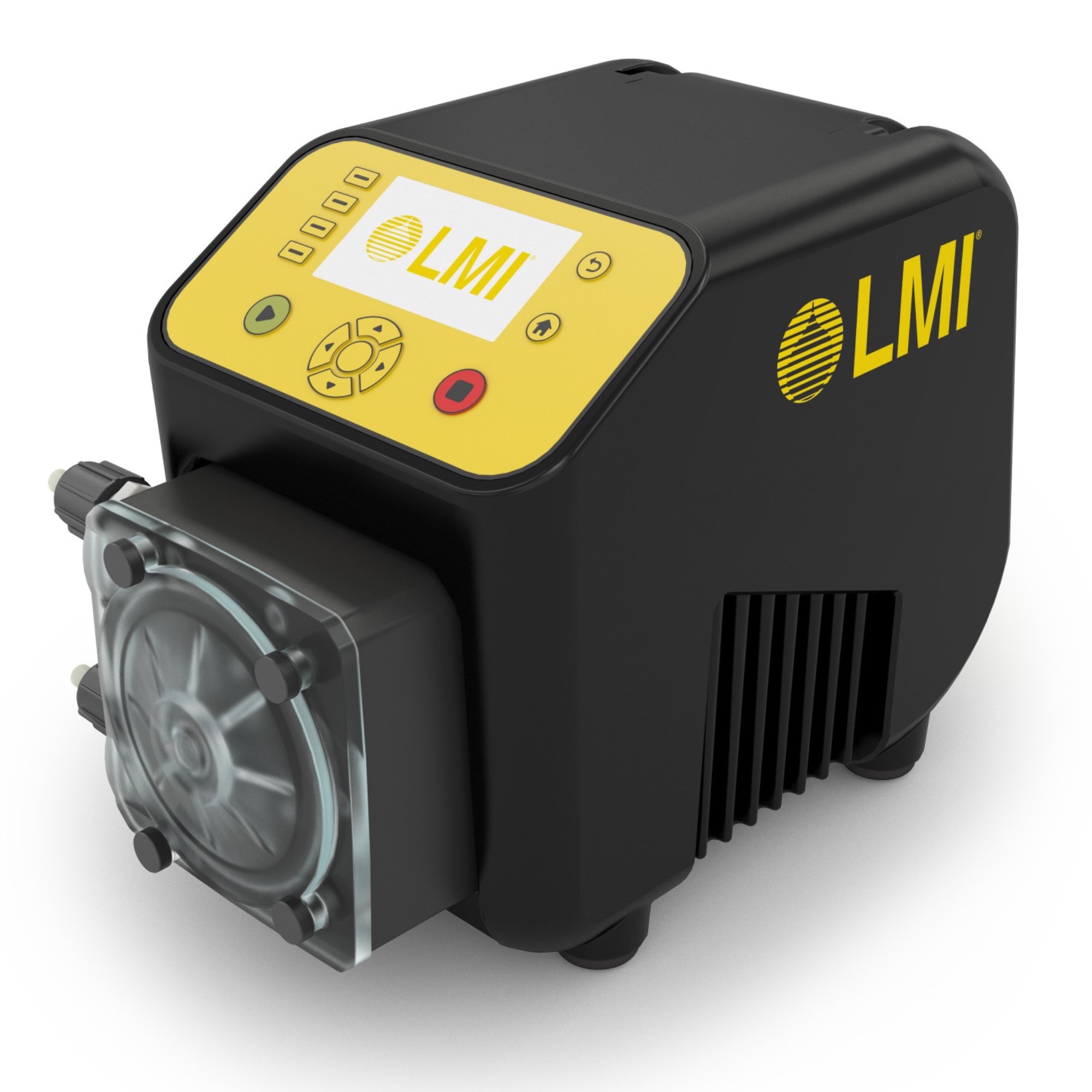

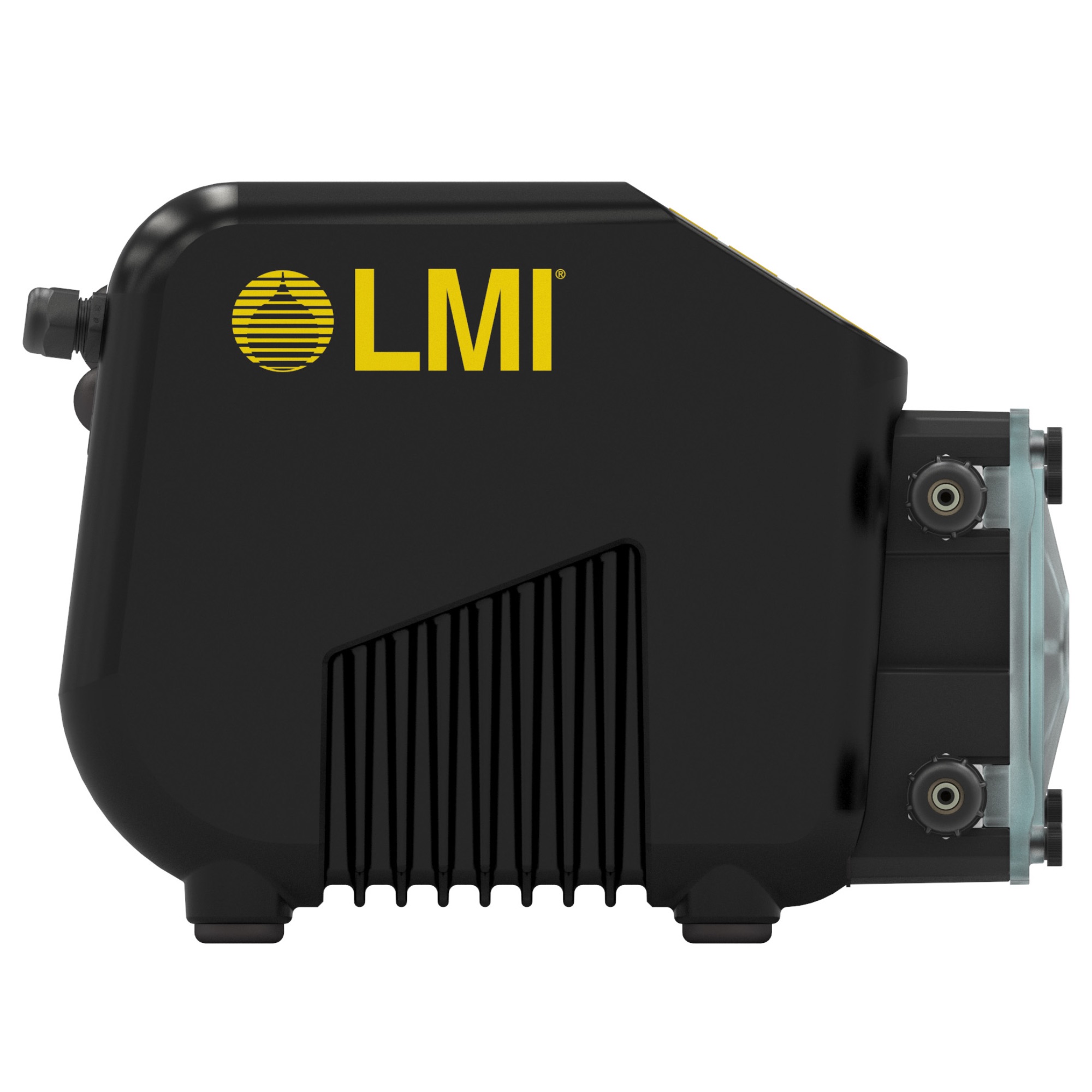

LMI's KBL Series Peristaltic Metering Pumps provides chemical feed flow rates to 160 GPH or pressures up to 110 psi (at lower flows). The pump drive and tubing can be configured for optimal performance based on application flow, pressure, and chemical. All three (3) drive options KBL2, KBL3, and KBL4 use an internal brushless DC motor and can be configured with SCADA or Modbus control for remote communication and multiple I/O options. Three (3) tube materials are coded (A) Extended Life (XL) which is resistant to most acids, alkalis, and oxidizing agents (B) Chemical Resistant (CR) which is resistant to strong acids, bases, commercial sanitizers & cleaners, and (C) Petro-Tough (PT) which is ideal for fats and oils, lubricants, and some solvents

Key Specs

Feed Max

158.5 GPH

Select model or search within this product range

Models are: In Stock

Ships from PA - NC - GA - FL - OH - MI - TX - OR

Typically ships within [ 0 to 2 ] days

24/7 Sales & Support 484-544-0506

$3,720.00 Starting at

Get a Quote Select Series

Overview
Tech Specs
Materials
Support Docs
Dimensions

Headline

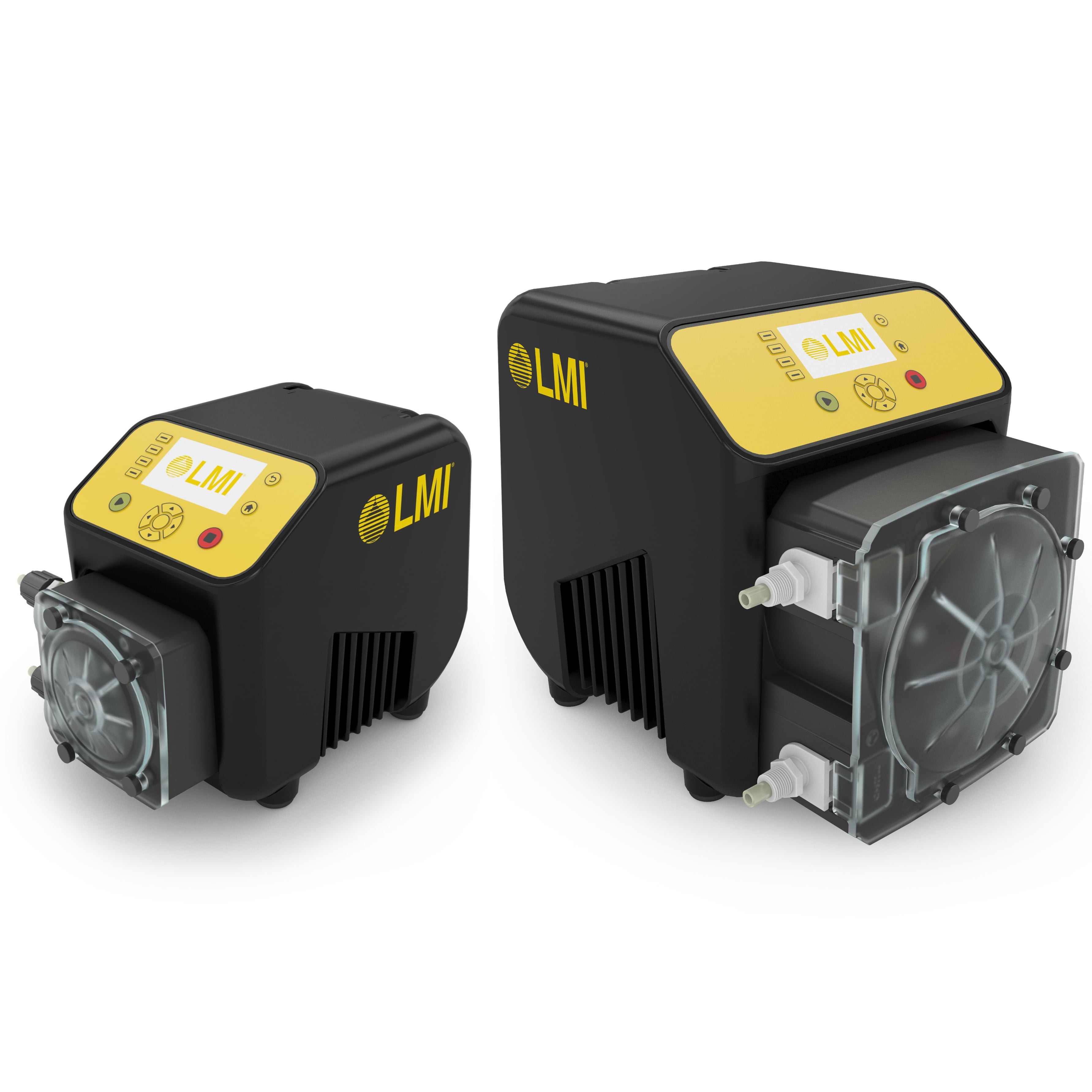

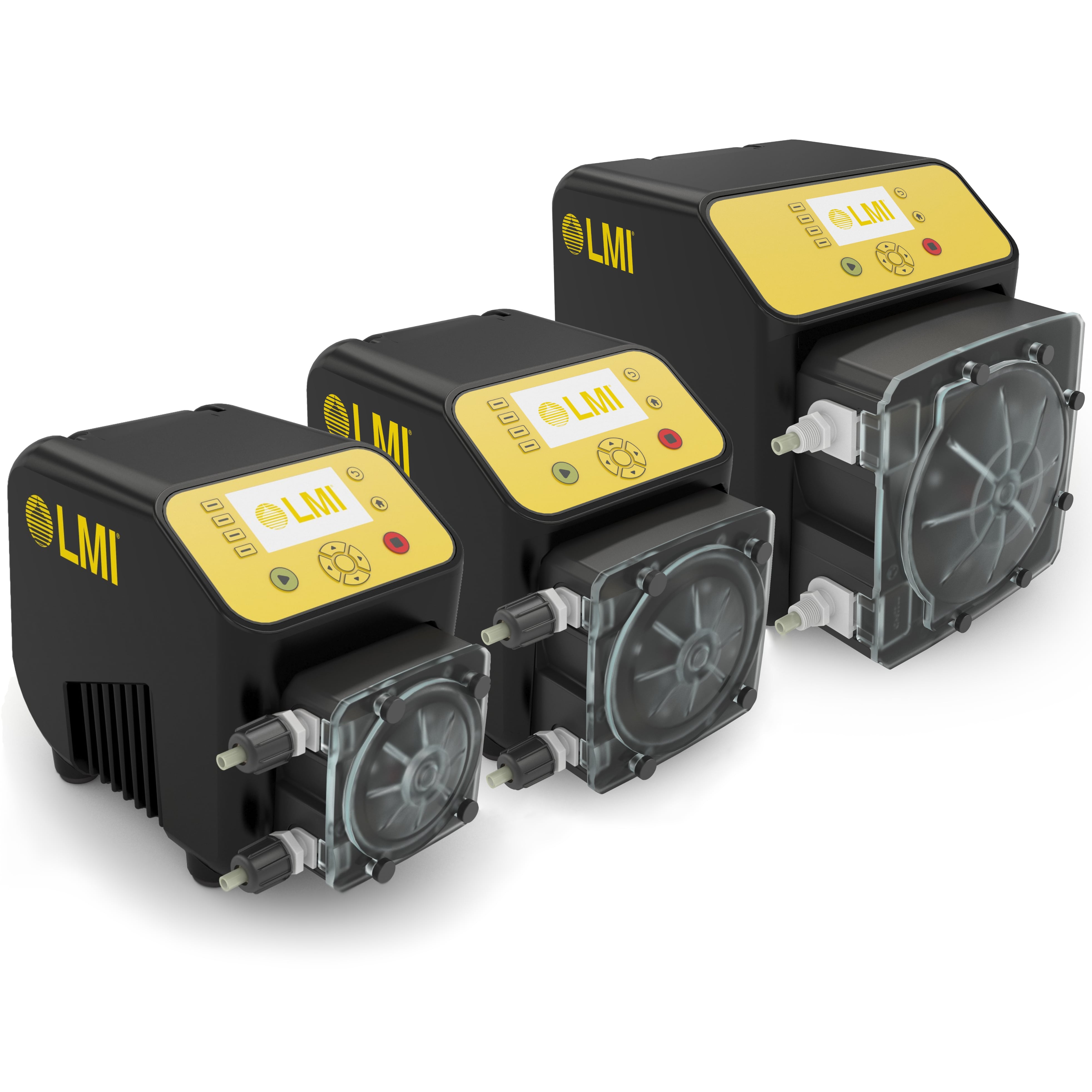

KBL Series Series Peristaltic Metering Pumps

The LMI KBL (and KML) Series cased-drive peristaltic metering pumps. Cost-effective and adaptable for precise dosing in water treatment, wastewater treatment, and various industrial settings.

Features & Benefits

Features

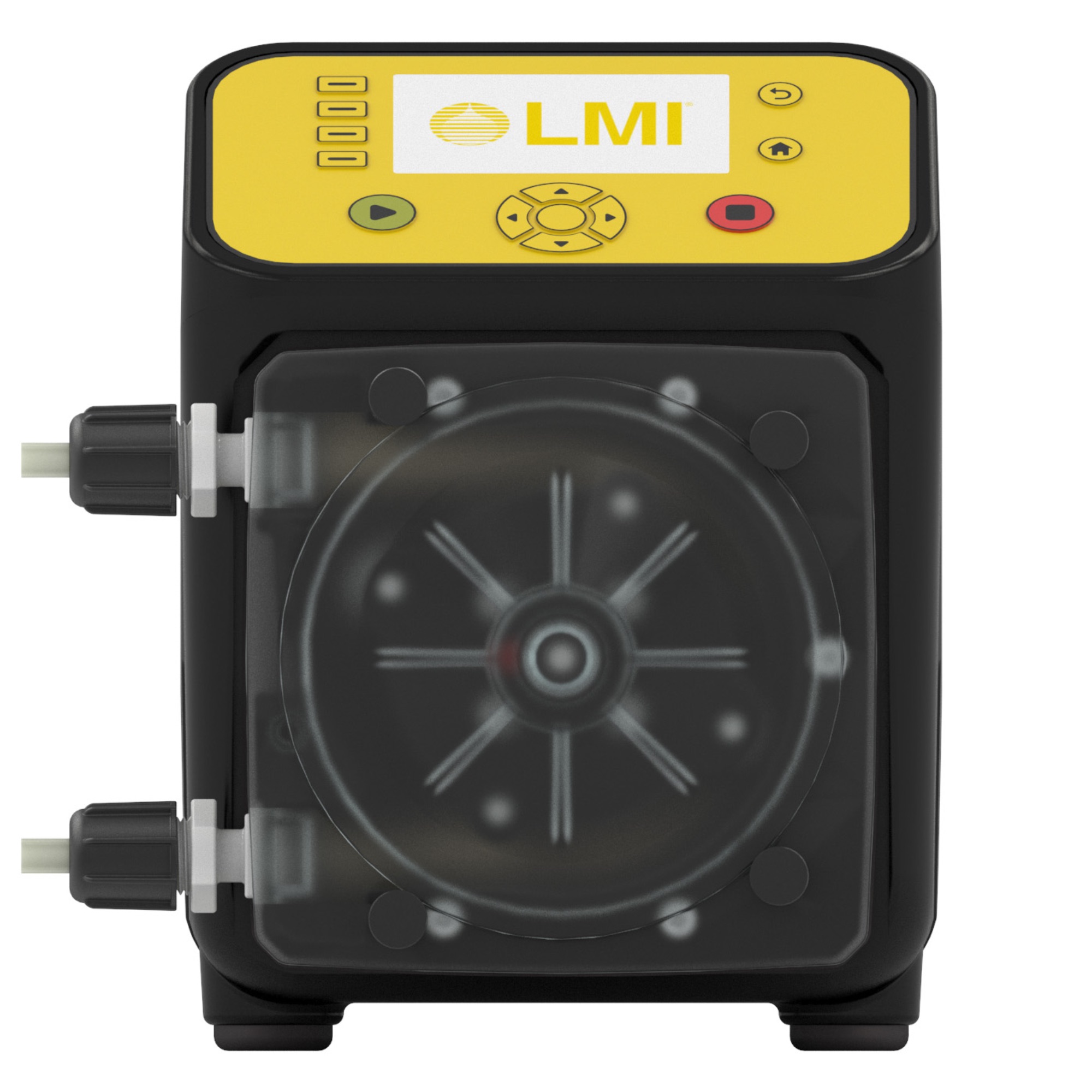

4.33” color LCD display
Optical tube leak detection standard

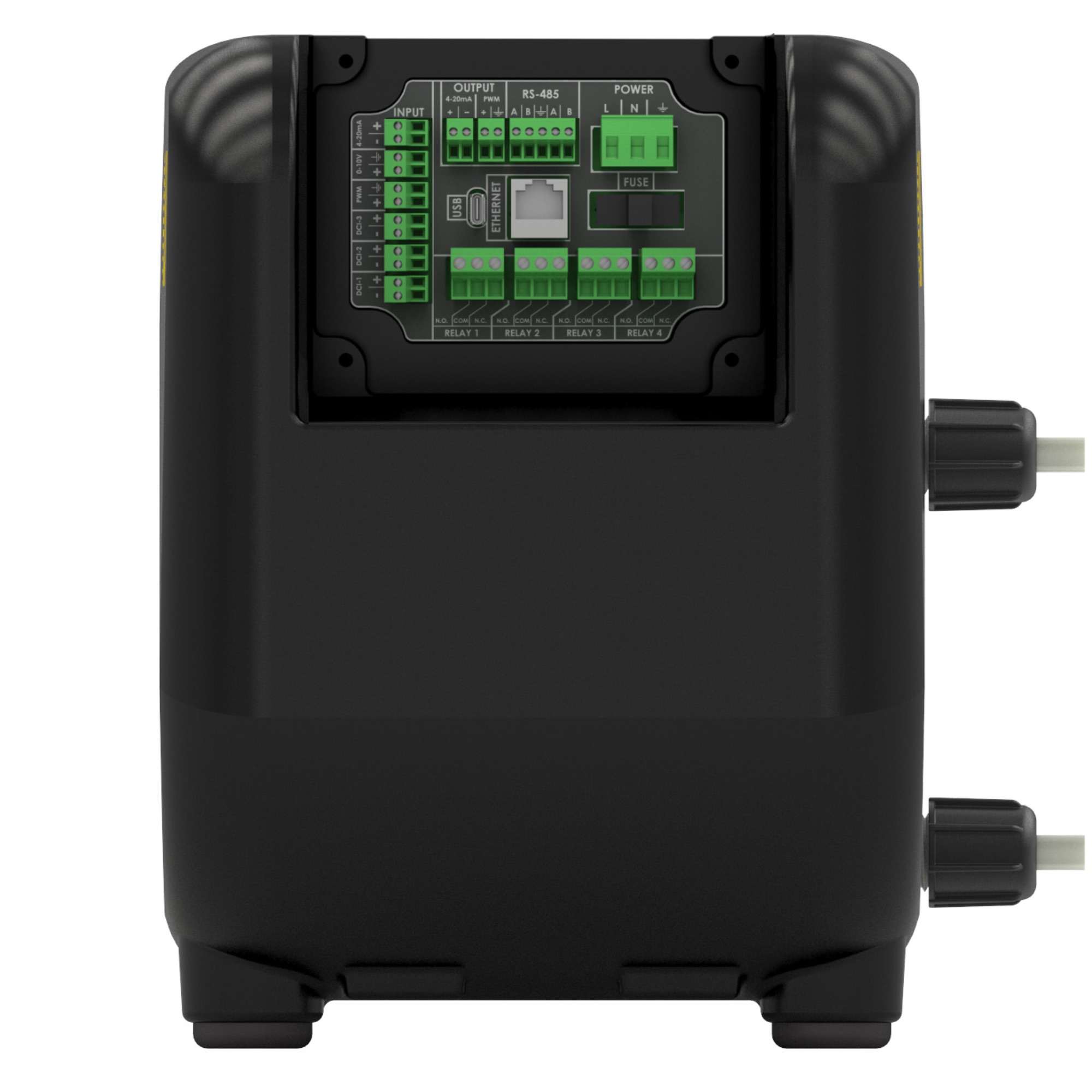

Remote inputs available: 4-20mA, SCADA, Modbus, EtherNet/IP, Profinet
4 configurable digital form-C relays
Onboard run timer for programmable predictive maintenance
Equipped with USB port for firmware upgrades and downloading of pump logs

Benefits

Each rotation gives the same displacement, which provides excellent chemical metering ability
Suction lift up to 30 feet (9 meters)
No backflow or slip allowed
Self-priming peristaltic metering pump maximizes versatility in installation with fast and convenient commissioning, removing the need for manual priming and check valves
No moving parts in contact with fluid – tubing is the only wetted item
No damage from running dry
Pump will not vapor lock or air bind

Additional Notes

KB Series Specifications

Parameter	Specification
Operating Temperature	-10°C - 50°C (14°F - 122°F)
Humidity	80% at 31°C, 50% at 40°C
Altitude	Max. 2000m (6560 ft)
Power Rating	KBL2 [1.6A], KBL3 [1.6A], KBL4 [2.3A]
Power Required	110-230 VAC, 50 / 60 Hz
Sound Level	<70 dB (A) at 1m
Maximum Flow Rate	KBL2 - 17 gph / 65 lph
	KBL3 - 34 gph / 130 lph
	KBL4 - 160 gph / 608 lph
Maximum Pressure	Up to 7.6 bar (110 psi)
Speed Control	KBL: 200:1
Motor Speed Range	0-100%
Weight	KBL2/KBL3 - 35.6 lbs (16.1kgs)
	KBL4 - 72 lbs (32.6kgs)
IP Rating	IP66 Indoor / Outdoor Rated
Pollution Degree	3

Tube Material Information

XL - Extended Life

LMI XL is best for fatigue life and is the longest-lasting tube in compatible applications. XL has excellent acid and alkali resistance, and is compatible with numerous oxidizing agents such as sodium hypochlorite. Min/max temperature: 0-80°C (32-176°F).

CR - Chemical Resistant

Suited for handling strong acids and bases, and is virtually unaffected by most commercial sanitizers & cleaners. Min/max temperature: 0-54°C (32-130°F).

PT - Petro-Tough

Can be used with fats and oils, lubricants, and some solvents. Min/max temperature: 0-54°C (32-130°F).

Chemical Compatibility

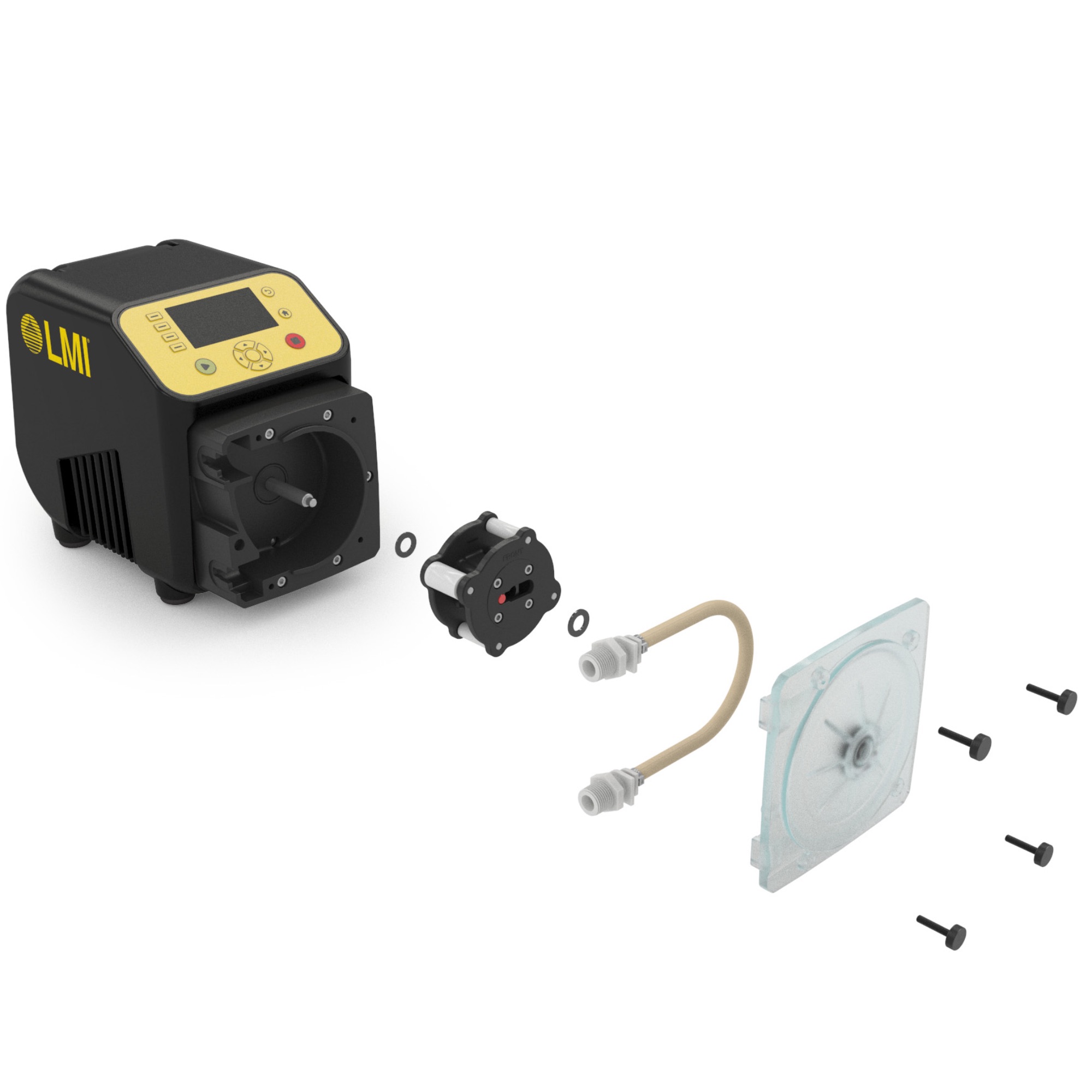

Construction Notes

**Enclosure:** Powder Coated Aluminum
**Pump Head:** PBT Thermoplastic
**Cover:** Polycarbonate
**Rotor:** PBT Thermoplastic
**Rollers:** Nylon
**Roller Bearings:** 316 SS
**Roller Shaft:** 316 SS
**Motor Shaft:** Chrome Steel
**Cover Screws:** Plastic / 316 SS
**Tube Connectors:** PVDF
