Headline
Cooling and protection box for distance sensors
In case of ambient temperatures up to 180 °C, powerful electronics should be cooled to protect them from overheating. Using the cooling box, the distance sensor O1D can now also be used in hot applications, e.g. in the steel industry.
After connection to a cooling circuit via the standardised 3/8" tube connections, the temperature on the inside of the cooling box can be cooled down to an "electronics friendly" temperature by means of water and cold air.
If you screw off the tube connections, the box can be used as protection casing for very harsh industrial operating conditions.
Features & Benefits
- Use for ambient temperatures up to 180 °C
- Robust metal housing with integrated cooling circuit
- Water or air cooling possible
- Reliable protection against very harsh environmental conditions
- For distance sensors type O1D
Additional Notes
| MPN | Product | Product designation | Design | Dimensions | Material |
|---|---|---|---|---|---|
| E21248 | Cooling box | protective housing with an active cooling system for types O1D | 112 x 70 x 108 mm | housing: aluminum transparent anodized; cover: aluminum black anodized; Front framework: aluminum black anodized; front lens: float glass; Cable gland: brass nickel-plated; nozzle: brass nickel-plated; sealing: FKM |

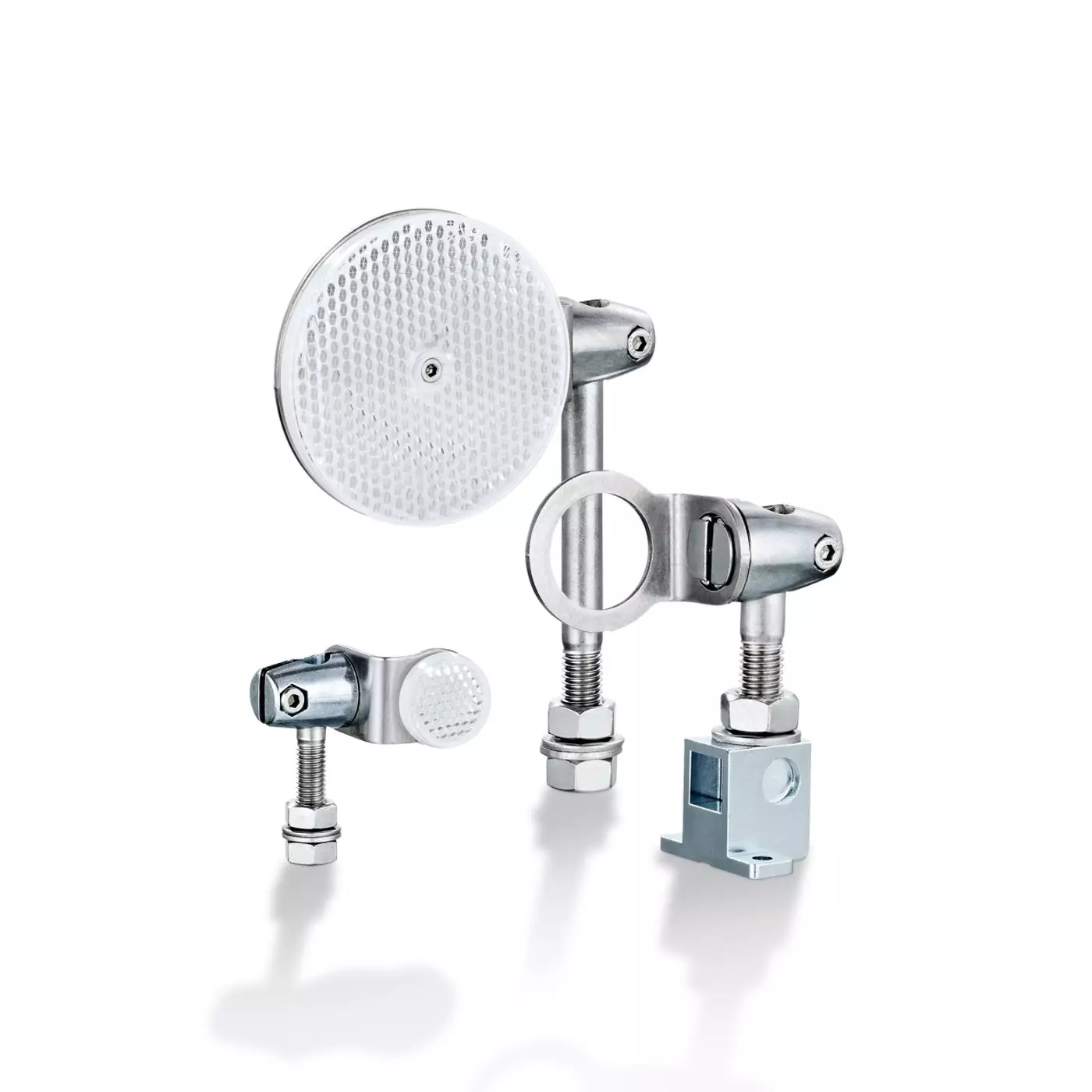

Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110060010 | ifm Accessories - for distance sensors - Reflectors | $0.01 | |
| IFM-110060020 | ifm Accessories - for distance sensors - Mounting sets for type O1 | $0.01 | |
| IFM-110060030 | ifm Accessories - for distance sensors - Mounting sets for type O5 | $0.01 | |
| IFM-110060040 | ifm Accessories - for distance sensors - Mounting sets for type M18 | $0.01 | |
| IFM-110060050 | ifm Accessories - for distance sensors - Mounting sets for type M30 | $0.01 | |
| IFM-110060060 | ifm Accessories - for distance sensors - Mounting sets for reflectors | $0.01 | |
| IFM-110060070 | ifm Accessories - for distance sensors - Clamps | $0.01 | |
| IFM-110060080 | ifm Accessories - for distance sensors - Mounting rods | $0.01 | |
| IFM-110060090 | ifm Accessories - for distance sensors - Thread cubes for aluminum profile mounting | $0.01 | |
| IFM-110060100 | ifm Accessories - for distance sensors - Device protection | $0.01 | |
| IFM-110060120 | ifm Accessories - for distance sensors - Devices for mounting and fine adjustment | $0.01 |
