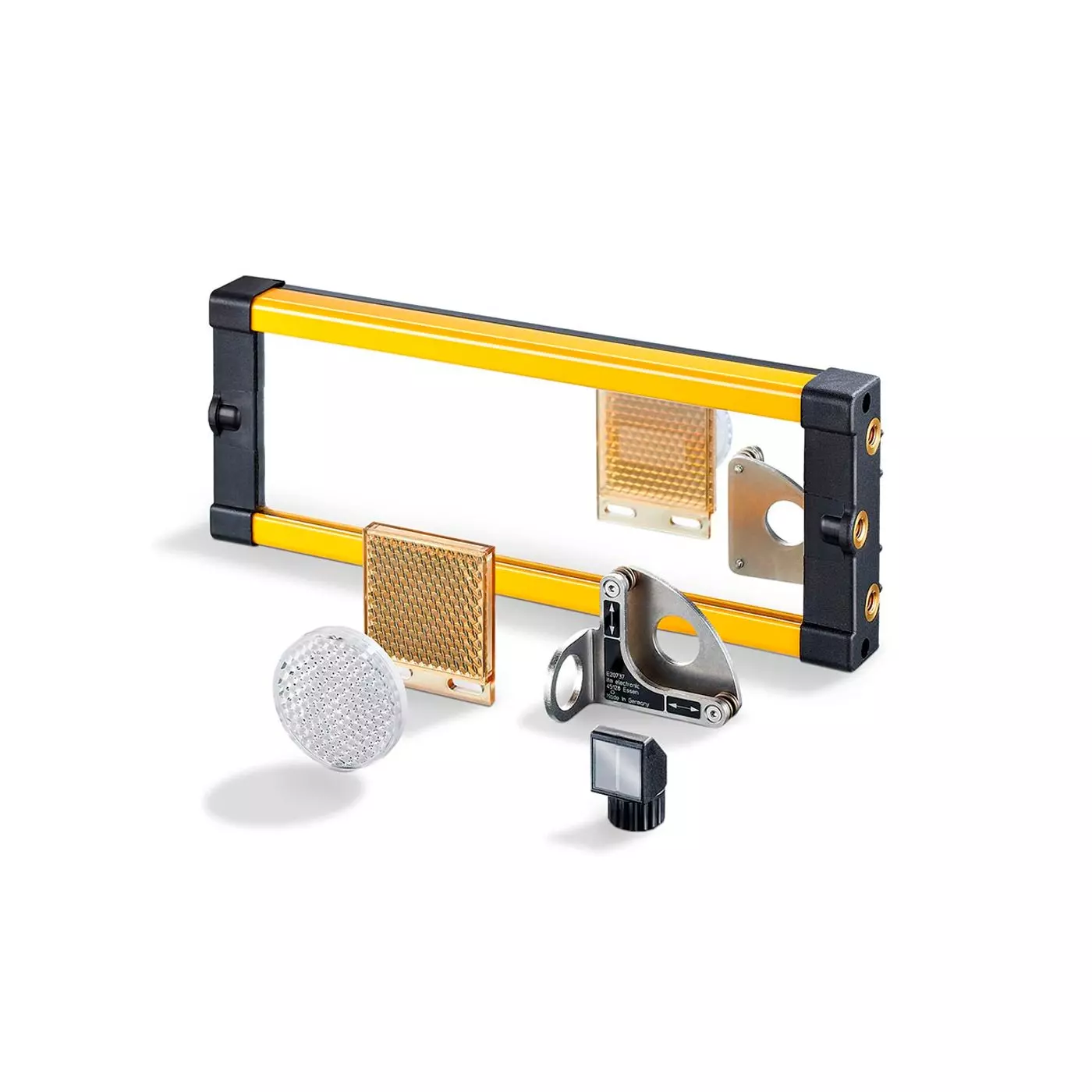

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Threaded cube for mounting on an aluminium profile
The mounting set includes a cube for mounting on standard aluminium profiles. The cube uses the slot in the profile, is fastened in it using a slide nut and can be connected to any clamp from ifm.
Mounting cubes are available with M8, M10 or M12 thread.
Features & Benefits
- For fastening to an aluminium profile
- Easy, quick and inexpensive mounting
- Robust design for use in harsh industrial environments
- Safe fixing of the sensor
Additional Notes
| MPN | Product designation | Type of mounting | Dimensions | Material | Items supplied |
|---|---|---|---|---|---|
| E20950 | Cube | aluminum profile | M8 | diecast zinc | |
| E20951 | Cube | aluminum profile | M10 | diecast zinc | |
| E20952 | Cube | aluminum profile | M12 | diecast zinc | |
| E21051 | Mounting set | aluminum profile | fixture: stainless steel (1.4571/316Ti ); Clamp: diecast zinc; Cube: diecast zinc; Prismatic reflector: plastics | text table: '|Zubehörteil|Trennzeichen (str)|Anzahl (str)|Abmessungen (str)|Zusatzangabe|BestellNr (str)| |-|-|-|-|-|-| |screw|:|1|M10 x 55|||' | |
| E21241 | Mounting set | Mounting rod; (Ø 18 mm) | fixture: stainless steel (1.4571/316Ti ); Clamp: diecast zinc |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-110040010 | ifm Accessories - for ultrasonic sensors - Reflectors | $0.01 | |
| IFM-110040020 | ifm Accessories - for ultrasonic sensors - Mounting sets for type M12 | $0.01 | |
| IFM-110040030 | ifm Accessories - for ultrasonic sensors - Mounting sets for type M18 | $0.01 | |
| IFM-110040040 | ifm Accessories - for ultrasonic sensors - Mounting sets for type M30 | $0.01 | |
| IFM-110040050 | ifm Accessories - for ultrasonic sensors - Mounting sets for type O1 | $0.01 | |
| IFM-110040060 | ifm Accessories - for ultrasonic sensors - Mounting sets for type O4 | $0.01 | |
| IFM-110040070 | ifm Accessories - for ultrasonic sensors - Mounting sets for type O5 | $0.01 | |
| IFM-110040080 | ifm Accessories - for ultrasonic sensors - Mounting sets for type O6 | $0.01 | |
| IFM-110040090 | ifm Accessories - for ultrasonic sensors - Mounting sets for type O7 | $0.01 | |
| IFM-110040100 | ifm Accessories - for ultrasonic sensors - Mounting sets for type O8 | $0.01 | |
| IFM-110040110 | ifm Accessories - for ultrasonic sensors - Mounting sets for type OJ | $0.01 | |
| IFM-110040120 | ifm Accessories - for ultrasonic sensors - Mounting sets for reflectors | $0.01 | |
| IFM-110040130 | ifm Accessories - for ultrasonic sensors - Clamps | $0.01 | |
| IFM-110040140 | ifm Accessories - for ultrasonic sensors - Accessories for photoelectric sensors – Mounting rods | $0.01 | |
| IFM-110040160 | ifm Accessories - for ultrasonic sensors - Angle supports | $0.01 |
