Headline

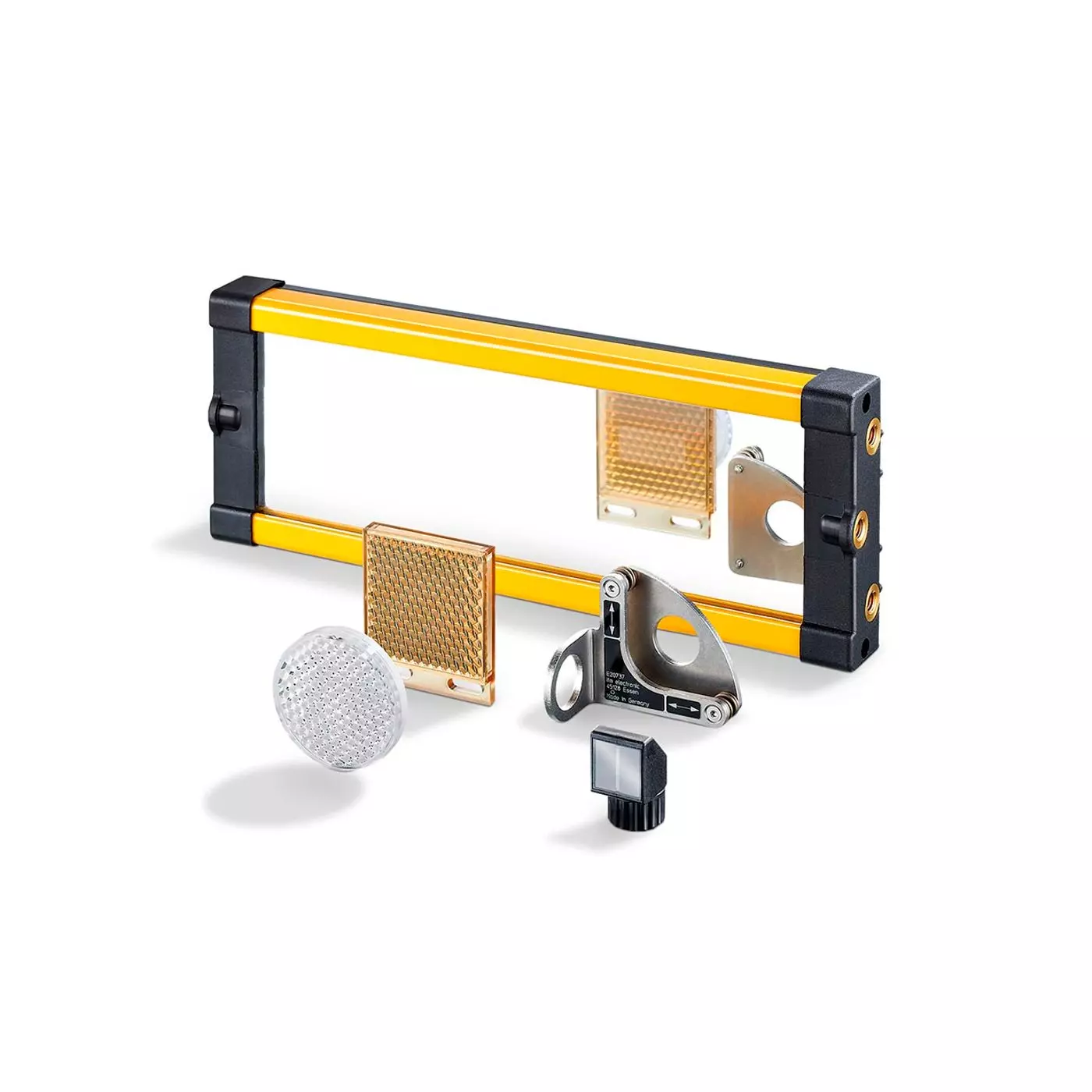

Reflectors
A suitable reflector (prismatic reflector) is always required for the use of retro-reflective sensors. ifm offers different round and square designs as well as special reflectors for laser light.
Features & Benefits
- For use with retro-reflective sensors
- Prismatic reflectors in round or rectangular designs
- Special reflectors for laser light
Additional Notes
| MPN | Product designation | Dimensions | Reflector surface | Material | Ambient temperature |
|---|---|---|---|---|---|
| E20003 | Prismatic reflector | Ø 25 / L = 6.5 mm | Ø 20 mm | plastics | -10...60 °C |
| E20004 | Prismatic reflector | Ø 42 / L = 6 mm | Ø 35 mm | plastics | -10...60 °C |
| E20005 | Prismatic reflector | Ø 84 / L = 7.7 mm | Ø 80 mm | plastics | -10...60 °C |
| E20401 | Reflective tape | 50 x 1000 mm | plastics | ||
| E20452 | Prismatic reflector | 32 x 65.5 x 8.5 mm | 45 x 28 mm | plastics | -10...60 °C |
| E20453 | Prismatic reflector | 55 x 125.5 x 9.5 mm | 45 x 95 mm | plastics | -10...60 °C |
| E20454 | Prismatic reflector | 100 x 100 x 9.5 mm | 96 x 96 mm | plastics | -10...60 °C |
| E20504 | Prismatic reflector | Ø 21 / L = 5.5 mm | Ø 17 mm | plastics | -10...60 °C |
| E20722 | Prismatic reflector | 61 x 51 x 7 mm | 47 x 47 mm | plastics | -10...60 °C |
| E20739 | Prismatic reflector | 85 x 85 x 9.5 mm | 80 x 80 mm | plastics | -10...60 °C |
| E20744 | Prismatic reflector | 61 x 51.5 x 8 mm | 48 x 48 mm | front panel: PMMA; base: ABS | -10...60 °C |
| E20850 | Prismatic reflector | Ø 42 / L = 9.5 mm | Ø 40 mm | plastics | -10...60 °C |
| E20851 | Prismatic reflector | Ø 42 / L = 6.5 mm | Ø 40 mm | plastics | -10...60 °C |
| E20953 | Prismatic reflector | Ø 25.2 / L = 7.5 mm | Ø 23 mm | plastics | -10...60 °C |
| E20954 | Prismatic reflector | Ø 34.5 / L = 10.2 mm | Ø 32 mm | plastics | -10...60 °C |
| E20956 | Prismatic reflector | Ø 50.8 / L = 10.2 mm | Ø 48 mm | plastics | -10...60 °C |
| E20957 | Prismatic reflector | 19 x 72.5 x 8 mm | 51 x 17 mm | plastics | -10...60 °C |
| E20961 | Prismatic reflector | 57 x 32.5 x 8 mm | 30 x 45 mm | plastics | -10...58 °C |
| E20988 | Prismatic reflector | 10 x 62 x 3.5 mm | 45 x 8 mm | front panel: PMMA; base: ABS | -10...60 °C |
| E20989 | Prismatic reflector | 14 x 23 x 5 mm | 19 x 9.7 mm | front panel: PMMA; base: ABS | -10...60 °C |
| E20990 | Prismatic reflector | Ø 10 / L = 6 mm | Ø 8 mm | screw: stainless steel (1.4401 / 316); Spring washer: stainless steel (1.4401 / 316); Nut: stainless steel (1.4401 / 316); front panel: PMMA; base: ABS | -10...60 °C |
| E20991 | Prismatic reflector | 11 x 11 x 6 mm | 9 x 9 mm | screw: stainless steel (1.4401 / 316); Spring washer: stainless steel (1.4401 / 316); Nut: stainless steel (1.4401 / 316); front panel: PMMA; base: ABS | -10...60 °C |
| E20992 | Prismatic reflector | Ø 15 / L = 6 mm | Ø 13 mm | screw: stainless steel (1.4401 / 316); Spring washer: stainless steel (1.4401 / 316); Nut: stainless steel (1.4401 / 316); front panel: PMMA; base: ABS | -10...60 °C |
| E20993 | Prismatic reflector | Ø 19 / L = 5 mm | Ø 17 mm | screw: stainless steel (1.4401 / 316); Spring washer: stainless steel (1.4401 / 316); Nut: stainless steel (1.4401 / 316); front panel: PMMA; base: ABS | -10...60 °C |
| E20994 | Prismatic reflector | 20 x 43 x 3.5 mm | 27 x 17 mm | front panel: PMMA; base: ABS | -10...60 °C |
| E21015 | Reflective tape | 50 x 1000 x 0.4 mm | 50 x 1000 mm | plastics; acrylic | -25...65 °C |
| E21016 | Reflective tape | 50 x 22800 mm | plastics | ||
| E21064 | Prismatic reflector | 61 x 51.5 x 8 mm | 48 x 48 mm | plastics | -10...110 °C |
| E21065 | Prismatic reflector | 61 x 51.5 x 8 mm | 48 x 48 mm | plastics; aluminum | -10...150 °C |
| E21115 | Prismatic reflector | 18 x 40 x 7 mm | 38 x 16 mm | plastics | -10...60 °C |
| E21159 | Prismatic reflector | 262 x 226 x 9 mm | 226 x 234 mm | plastics | -10...60 °C |
| E21234 | Reflective tape | 25 x 25 x 0.4 mm | 25 x 25 mm | plastics | |
| E21267 | Prismatic reflector | 20 x 32 x 3.5 mm | 18 x 18 mm | Solidchem | -20...140 °C |
| E21268 | Prismatic reflector | 40 x 60 x 7.5 mm | 56 x 38 mm | Solidchem | -20...140 °C |
| E21269 | Prismatic reflector | 61 x 51.5 x 8 mm | 48 x 48 mm | Solidchem | -20...140 °C |
| E21270 | Prismatic reflector | 100 x 100 x 9.5 mm | 96 x 96 mm | Solidchem | -20...140 °C |
| E21299 | Prismatic reflector | 61 x 51.5 x 8 mm | 48 x 48 mm | front panel: PMMA; base: ABS | -10...60 °C |
