Headline

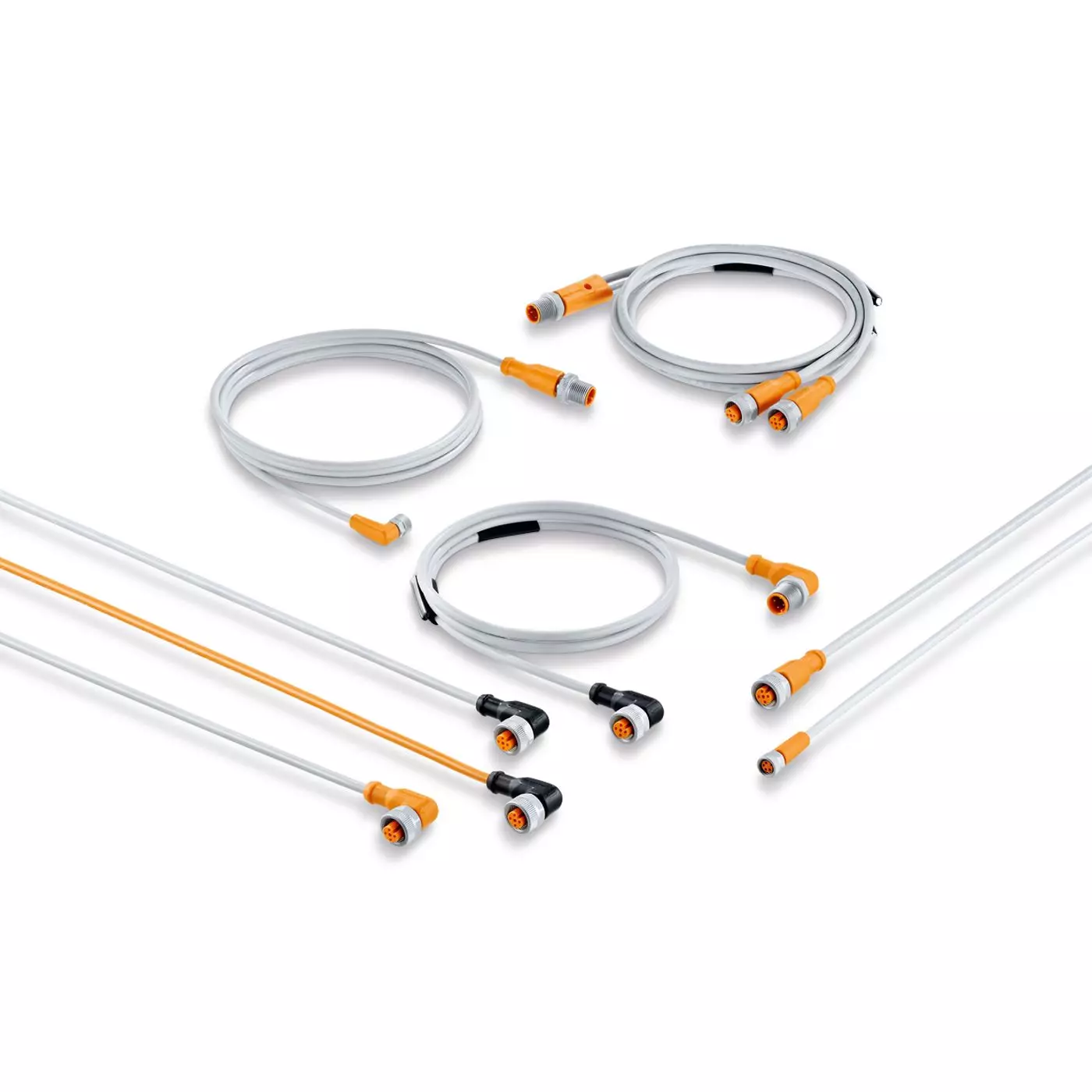

Patchcords
Patchcords feature a male and female connector. They are used for the connection of sensors to splitter boxes and modules. They ensure reliable and permanent sealing of the sensor and splitter connections even when mounted without tools. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut. Even in harsh industrial environments, the connectors are protected against unintended loosening by a special vibration protection. Some types are fitted with highly visible LEDs for operation and switching status indication. The jumper cables of the ecolink EVW series for use in welding applications have a special PUR-jacketed cable. The non-stick coating of the coupling nut allows weld spatter to roll off the sensor and enables easy and quick cleaning.
Features & Benefits
- Weld-slag resistant PUR cable with drag chain suitability
- Nut with special weld-slag resistant coating
- Mechanical end stop to protect the O-ring from destruction
- Sawtooth design protects against shock and vibration
- LEDs clearly visible even under bright lighting
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E18410 | Connection cable | 1 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18411 | Connection cable | 2 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18412 | Connection cable | 5 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18413 | Connection cable | 0.3 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18416 | Connection cable | 2 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18418 | Connection cable | 10 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| EVW017 | Connection cable | 1.5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW022 | Connection cable | 0.5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW023 | Connection cable | 0.5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW024 | Connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW025 | Connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW026 | Connection cable | 3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW027 | Connection cable | 4 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW028 | Connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW029 | Connection cable | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW030 | Connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW031 | Connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW032 | Connection cable | 3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW034 | Connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW035 | Connection cable | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW036 | Connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW037 | Connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW038 | Connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 2 x LED yellow; Power: 1 x LED green | 4 |
| EVW039 | Connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 2 x LED yellow; Power: 1 x LED green | 4 |
| EVW040 | Connection cable | 3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 2 x LED yellow; Power: 1 x LED green | 4 |
| EVW041 | Connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 2 x LED yellow; Power: 1 x LED green | 4 |
| EVW042 | Connection cable | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 2 x LED yellow; Power: 1 x LED green | 4 |
| EVW048 | Connection cable | 0.3 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW049 | Connection cable | 0.6 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW050 | Connection cable | 1 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW051 | Connection cable | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW052 | Connection cable | 5 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW053 | Connection cable | 10 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW056 | Connection cable | 1 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW057 | Connection cable | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW058 | Connection cable | 5 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW059 | Connection cable | 10 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW076 | Connection cable | 0.3 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW077 | Connection cable | 0.6 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW078 | Connection cable | 1 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW079 | Connection cable | 1.5 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW080 | Connection cable | 3 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW081 | Connection cable | 0.3 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW082 | Connection cable | 0.6 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW083 | Connection cable | 1 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW084 | Connection cable | 1.5 m PUR-Cable; M12 / M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW085 | Connection cable | 0.3 m PUR-Cable; M12 / M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW086 | Connection cable | 0.6 m PUR-Cable; M12 / M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW087 | Connection cable | 1 m PUR-Cable; M12 / M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW088 | Connection cable | 1.5 m PUR-Cable; M12 / M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW089 | Connection cable | 3 m PUR-Cable; M12 / M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW090 | Connection cable | 0.3 m PUR-Cable; M8 / M12 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW091 | Connection cable | 0.6 m PUR-Cable; M8 / M12 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW092 | Connection cable | 1 m PUR-Cable; M8 / M12 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW093 | Connection cable | 1.5 m PUR-Cable; M8 / M12 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW094 | Connection cable | 0.6 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW095 | Connection cable | 1 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW096 | Connection cable | 1.5 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW097 | Connection cable | 3 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW098 | Connection cable | 0.6 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW099 | Connection cable | 1 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW100 | Connection cable | 1.5 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW101 | Connection cable | 3 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW102 | Connection cable | 0.3 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW103 | Connection cable | 0.6 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW104 | Connection cable | 1 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW105 | Connection cable | 1.5 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW106 | Connection cable | 0.6 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW107 | Connection cable | 1.5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW109 | Connection cable | 0.6 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW112 | Connection cable | 25 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW134 | Connection cable | 0.3 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW144 | Connection cable | 0.6 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW145 | Connection cable | 1.5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW146 | Connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW160 | Connection cable | 1.5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW161 | Connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW162 | Connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW163 | Connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090040010 | Cables and Connections - Welding - Female cordsets | $0.01 | |
| IFM-090040020 | Cables and Connections - Welding - Male cordsets | $0.01 | |
| IFM-090040040 | Cables and Connections - Welding - Y-splitters | $0.01 |
