Female cordsets

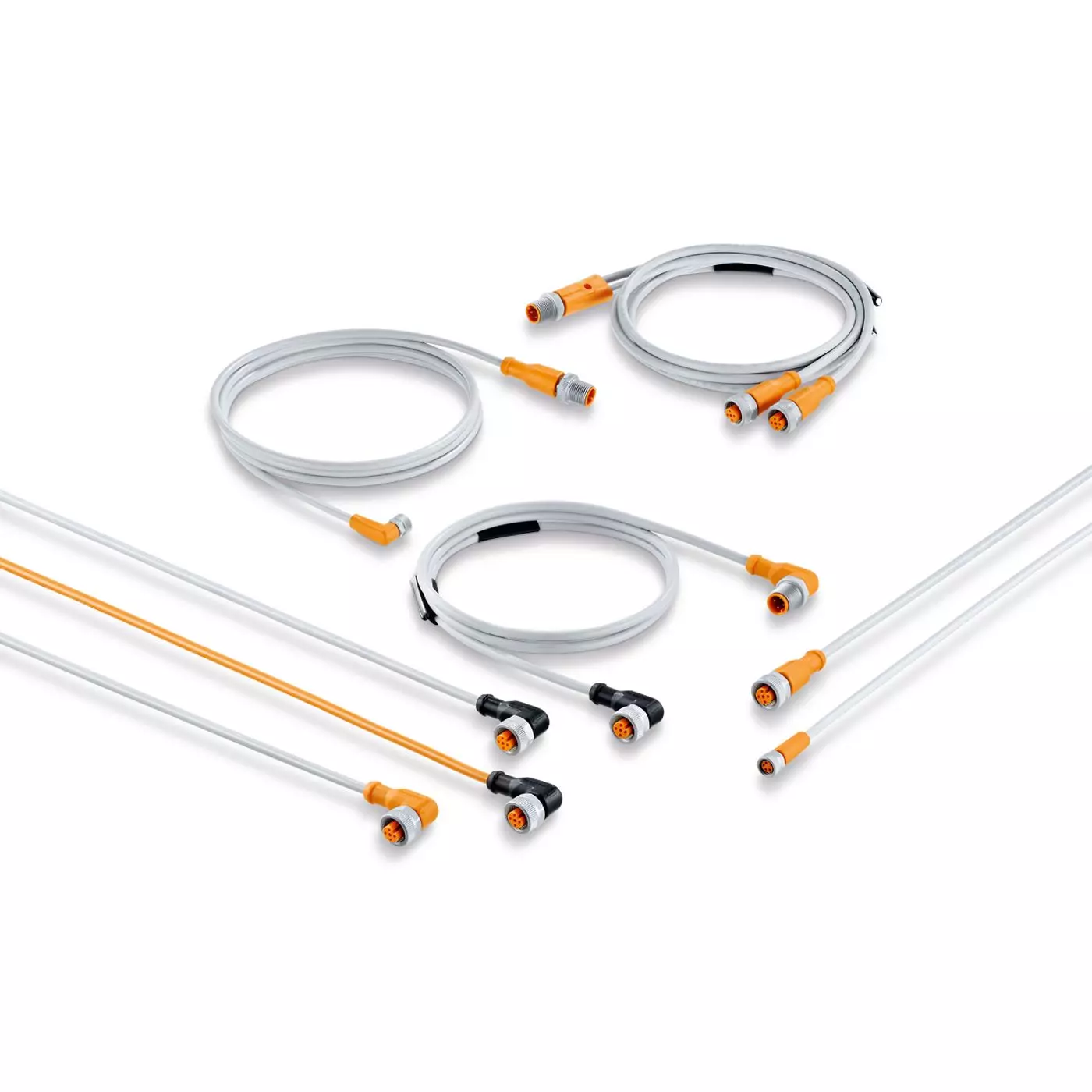

Female cordsets are generally used in automation technology to connect sensors and actuators with connectors to splitter boxes. Even when fastened by hand, a perfect lasting seal of sensor and actuator connections is guaranteed. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut. Even in harsh industrial environments, the connectors are protected against unintended loosening by a special vibration protection. Some types are fitted with highly visible LEDs for operation and switching status indication. The sockets of the ecolink EVW series for use in welding applications have a special PUR-jacketed cable. The non-stick coating of the coupling nut allows weld spatter to roll off the sensor and enables easy and quick cleaning.
- Weld-slag resistant PUR cable with drag chain suitability
- Nut with special weld-slag resistant coating
- Mechanical end stop to protect the O-ring from destruction
- Sawtooth design protects against shock and vibration
- LEDs clearly visible even under bright lighting
| MPN | Product designation | Connection | Cable structure | Display | Number of cores |
|---|---|---|---|---|---|
| E18402 | Female cordset | 2 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18403 | Female cordset | 5 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18404 | Female cordset | 10 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18405 | Female cordset | 2 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18406 | Female cordset | 5 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| E18407 | Female cordset | 10 m; M12 Connector | 4 x 0,75 mm² | 4 | |
| EVW001 | Female cordset | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW002 | Female cordset | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW003 | Female cordset | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW004 | Female cordset | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW005 | Female cordset | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW006 | Female cordset | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 | |
| EVW007 | Female cordset | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 2 x LED yellow; Power: 1 x LED green | 4 |
| EVW008 | Female cordset | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 2 x LED yellow; Power: 1 x LED green | 4 |
| EVW009 | Female cordset | 10 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 2 x LED yellow; Power: 1 x LED green | 4 |
| EVW010 | Female cordset | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW011 | Female cordset | 5 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW012 | Female cordset | 10 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW013 | Female cordset | 2 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW014 | Female cordset | 5 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW015 | Female cordset | 10 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW069 | Female cordset | 5 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW070 | Female cordset | 10 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW071 | Female cordset | 5 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW072 | Female cordset | 10 m PUR-Cable; M8 Connector | 3 x 0,25 mm² (32 x Ø 0,1 mm) | 3 | |
| EVW073 | Female cordset | 5 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW074 | Female cordset | 10 m PUR-Cable; M8 Connector | 4 x 0,25 mm² (32 x Ø 0,1 mm) | 4 | |
| EVW075 | Female cordset | 15 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | 5 | |
| EVW111 | Female cordset | 25 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | 4 |
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090040020 | Cables and Connections - Welding - Male cordsets | $0.01 | |
| IFM-090040030 | Cables and Connections - Welding - Patchcords | $0.01 | |
| IFM-090040040 | Cables and Connections - Welding - Y-splitters | $0.01 |
