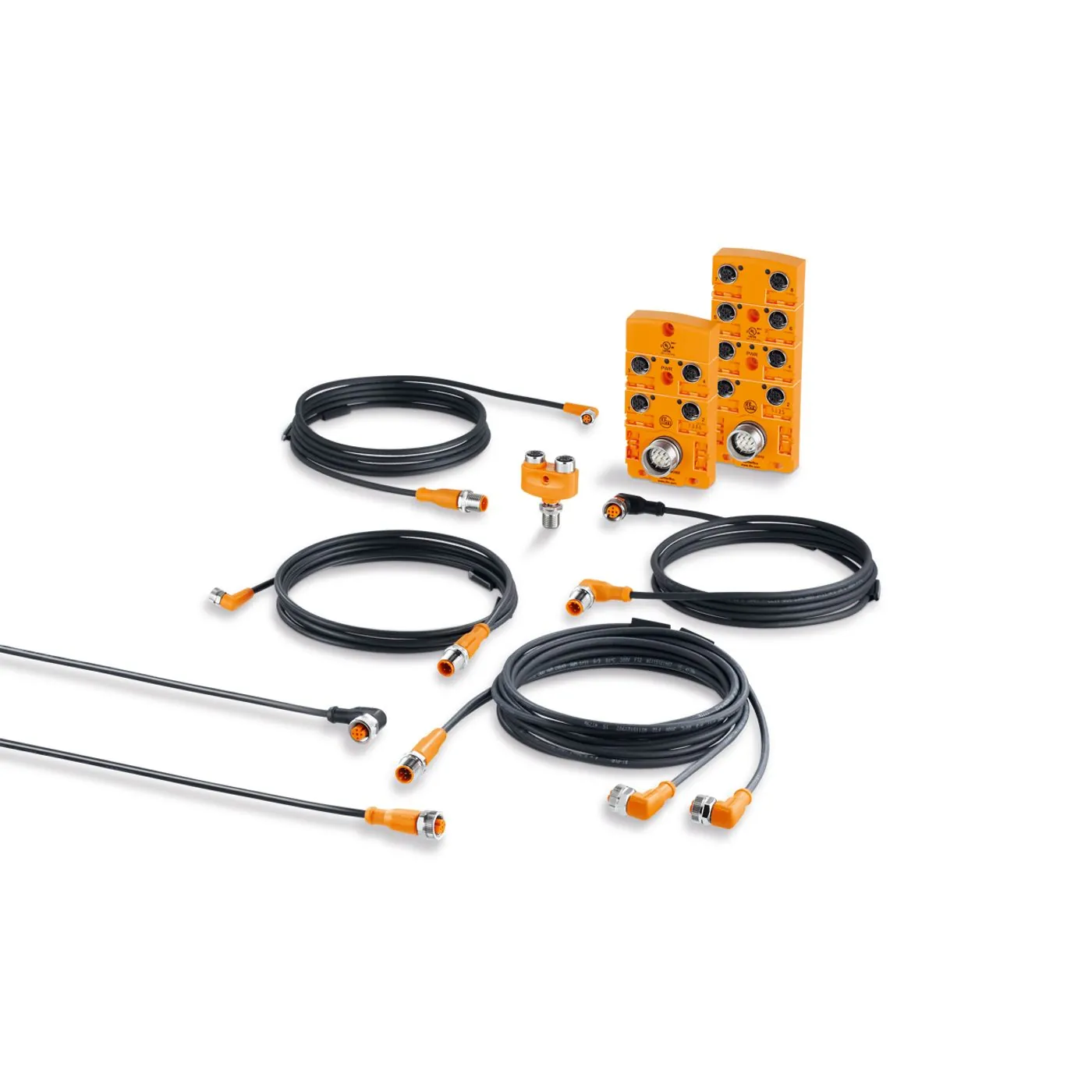

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Y connection cables
Y connection cables feature a plug and two sockets. They are used for the connection of sensors to splitter boxes and modules. They ensure reliable and permanent sealing of the sensor and splitter connections even when mounted without tools. The integrated end stop protects the O-ring against destruction caused by over-tightening the nut. Even in harsh industrial environments, the connectors are protected against unintended loosening by a special vibration protection. Some types are fitted with highly visible LEDs for operation and switching status indication. The jumper cables of the ecolink EVC series are resistant to oils and lubricants, making them ideal for use in machine tools and the metalworking industry.
Features & Benefits
- Reliable sealing even when mounted without tools
- Mechanical end stop to protect the O-ring from destruction
- Sawtooth design protects against shock and vibration
- LEDs clearly visible even under bright lighting
- High material resistance to oils and lubricants
Additional Notes
| MPN | Product designation | Connection | Cable structure | Display | Ambient temperature |
|---|---|---|---|---|---|
| E12546 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12547 | Y connection cable | 2 m PUR-Cable; DEUTSCH connector Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12548 | Y connection cable | 5 m PUR-Cable; DEUTSCH connector Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12552 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector Connector | 2 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12553 | Y connection cable | 2 m PUR-Cable; DEUTSCH connector Connector | 2 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12554 | Y connection cable | 5 m PUR-Cable; DEUTSCH connector Connector | 2 x 0,50 mm² (28 x Ø 0,15 mm) | -40...85 °C | |
| E12561 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12562 | Y connection cable | 2 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12563 | Y connection cable | 5 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12682 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12685 | Y connection cable | 1 m PUR-Cable; DEUTSCH connector / M12 Connector | 3 x 0,50 mm² (28 x Ø 0,15 mm) / 3 x 0,50 mm² (28 x Ø 0,15 mm) | -40...80 °C | |
| E12723 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | -25...85 °C | |
| EVC431 | Y connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC432 | Y connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC433 | Y connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC434 | Y connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC435 | Y connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC436 | Y connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC437 | Y connection cable | 1 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow; Power: 1 x LED green | -25...90 °C |
| EVC438 | Y connection cable | 2 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow; Power: 1 x LED green | -25...90 °C |
| EVC439 | Y connection cable | 5 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow; Power: 1 x LED green | -25...90 °C |
| EVC496 | Y connection cable | 0.15 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC503 | Y connection cable | 0.25 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) / 3 x 0,25 mm² (32 x Ø 0,1mm) | -25...90 °C | |
| EVC508 | Y connection cable | 0.6 m PUR-Cable; M12 Connector | 3 x 0,34 mm² (42 x Ø 0,1 mm) | Switching status: 1 x LED yellow; Power: 1 x LED green | -25...90 °C |
| EVC510 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC517 | Y connection cable | 1 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC614 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC618 | Y connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC619 | Y connection cable | 3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC621 | Y connection cable | 5 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC808 | Y connection cable | 2 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) / 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVC847 | Y connection cable | 0.4 m PUR-Cable; M12 Connector | 5 x 0,34 mm² (42 x Ø 0,1 mm) / 3 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C | |
| EVCA04 | Y connection cable | 0.3 m PUR-Cable; M12 Connector | 4 x 0,34 mm² (42 x Ø 0,1 mm) | -25...90 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-090030010 | Cables and Connections - Oils and coolants - Female cordsets | $0.01 | |
| IFM-090030020 | Cables and Connections - Oils and coolants - Male cordsets | $0.01 | |
| IFM-090030030 | Cables and Connections - Oils and coolants - Patchcords | $0.01 | |
| IFM-090030050 | Cables and Connections - Oils and coolants - Wiring blocks | $0.01 |
