Headline
Masters with fieldbus gateway

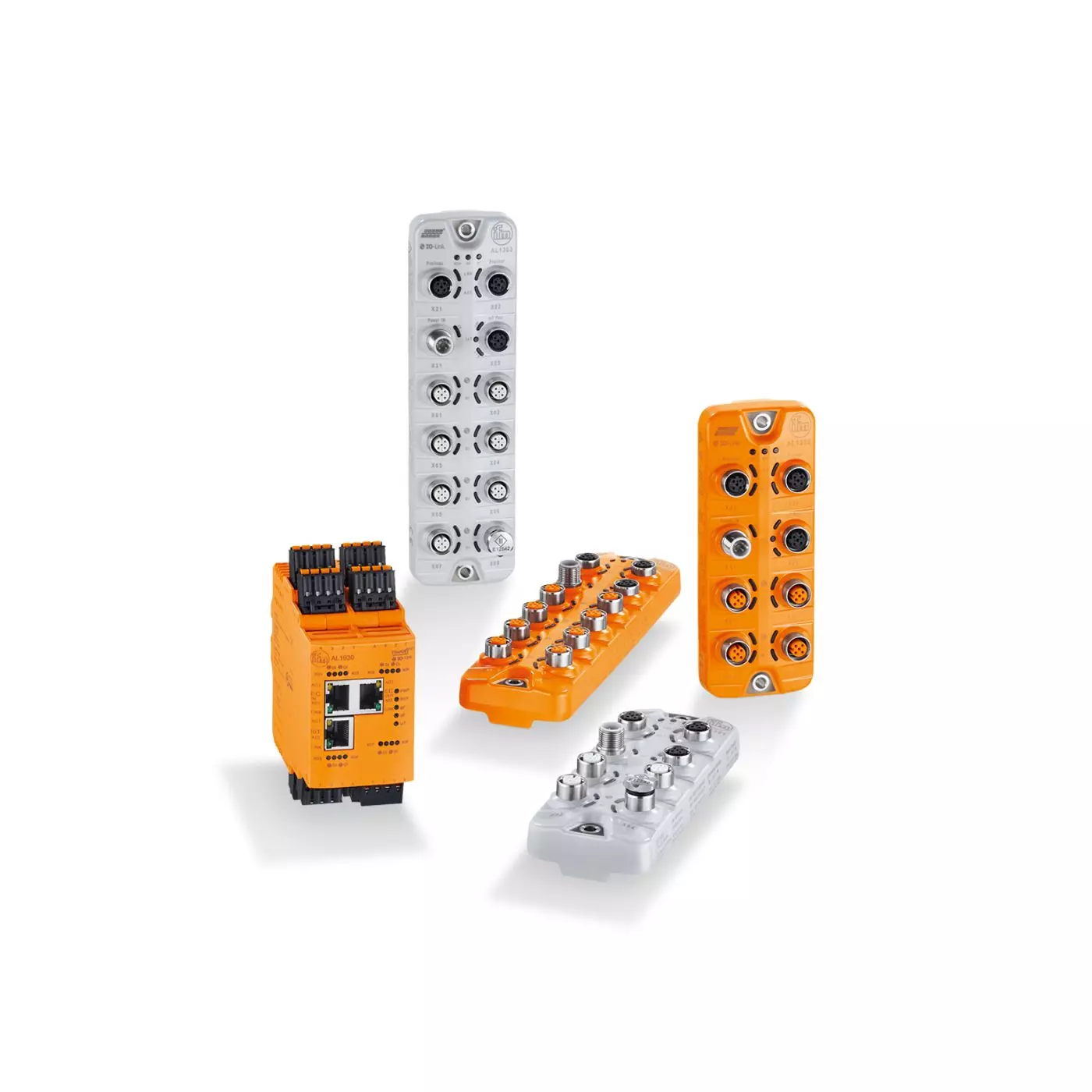

The IO-Link master is a gateway for the connection of up to 8 IO-Link devices, e.g. sensors, valves or binary input/output modules. The master transmits machine data, process parameters and diagnostic data to the controller. Excellent electromagnetic stability, a wide temperature range, a high protection rating and a robust housing qualify the device for use in the food industry. The product range includes interfaces to Profinet or Ethernet/IP.
Features & Benefits
- For connection of up to eight IO-Link devices
- Reliable transmission of machine data, process parameters and diagnostic data to the controller
- With integrated fieldbus interface
- Wide operating temperature range and high protection rating
- For use in sanitary and wet areas in the food industry
Additional Notes
| MPN | Product designation | Communication interface | Protection | IO-Link revision |
|---|---|---|---|---|
| AC6001 | IO-Link master StandardLine | IO-Link, AS-i | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AC6003 | IO-Link master StandardLine | IO-Link, AS-i | IP 65, IP 66, IP 69K | 1.1 |
| AL1101 | IO-Link master StandardLine | IO-Link, PROFINET | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1103 | IO-Link master StandardLine | IO-Link, PROFINET | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1121 | IO-Link master StandardLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1123 | IO-Link master StandardLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1301 | IO-Link master DataLine | IO-Link, MQTT JSON, PROFINET | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1303 | IO-Link master DataLine | IO-Link, MQTT JSON, PROFINET | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1321 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherNet/IP | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1323 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherNet/IP | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1331 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherCAT | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1333 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherCAT | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1341 | IO-Link master DataLine | IO-Link, MQTT JSON, Modbus TCP | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1343 | IO-Link master DataLine | IO-Link, MQTT JSON, Modbus TCP | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1351 | IO-Link master DataLine | IO-Link, MQTT JSON | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1353 | IO-Link master DataLine | IO-Link, MQTT JSON | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1371 | IO-Link master DataLine | IO-Link, MQTT JSON, Powerlink | IP 65, IP 66, IP 67, IP 69K | 1.1 |
| AL1373 | IO-Link master DataLine | IO-Link, MQTT JSON, Powerlink | IP 65, IP 66, IP 67, IP 69K | 1.1 |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-055010010 | IO-Link - IO-Link Gateways - Field mountable gateways for industrial automation | $0.01 | |
| IFM-055010020 | IO-Link - IO-Link Gateways - DIN rail mountable gateways for control cabinets | $0.01 |
