Headline

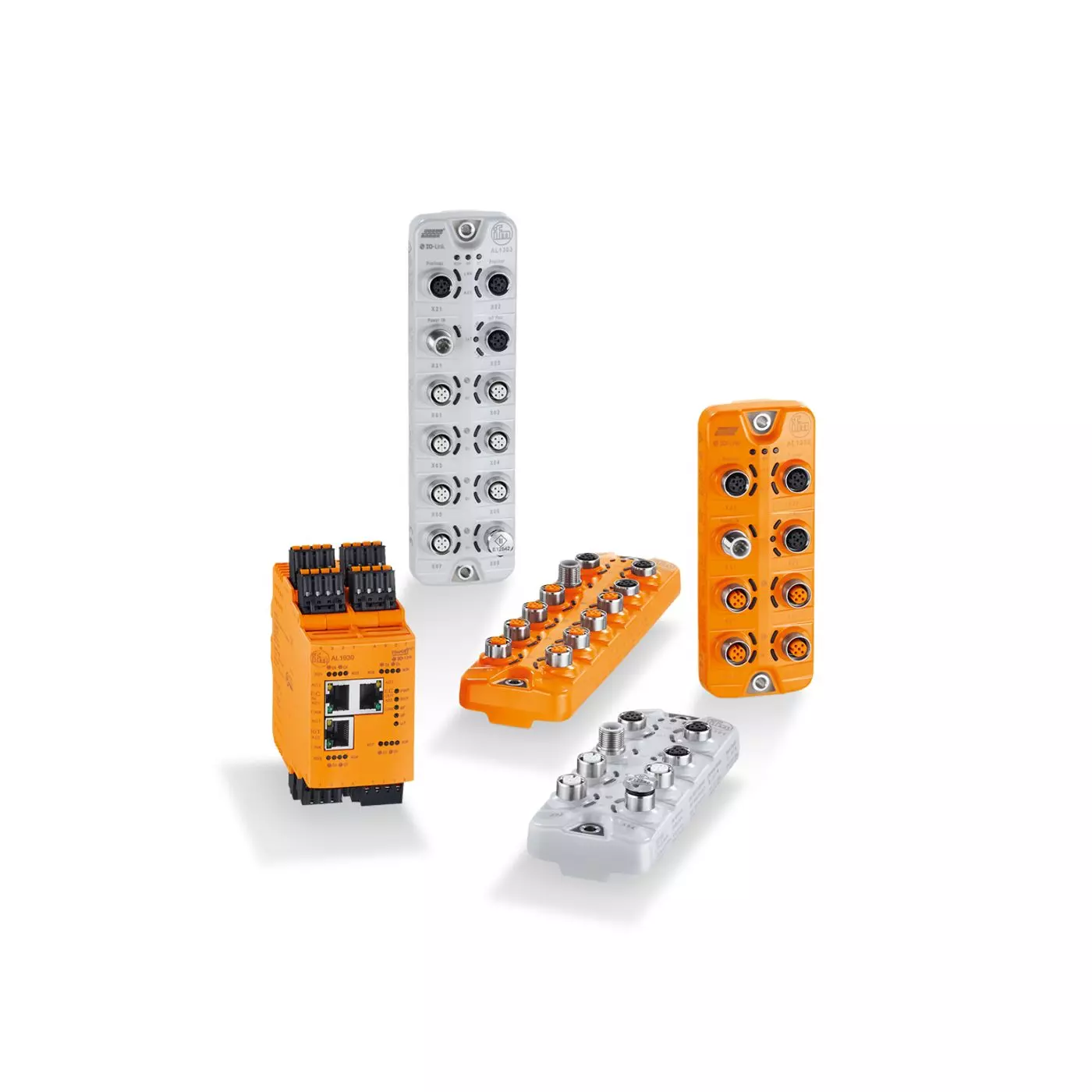

Masters with fieldbus gateway
The IO-Link master is a gateway for the connection of up to eight IO-Link devices including sensors, valves or binary input/output modules. Four of the eight ports are designed as B ports and supply auxiliary energy for the connection of IO-Link actuators. The master transmits machine data, process parameters and diagnostic data to the controller. Excellent electromagnetic stability, a wide temperature range, a high protection rating and a robust housing qualify the device for use in harsh industrial environments. The product range includes interfaces to Profinet, EtherCat, Ethernet/IP or Profibus.
Features & Benefits
- For connection of up to eight IO-Link devices
- Reliable transmission of machine data, process parameters and diagnostic data to the controller
- With integrated fieldbus interface
- Wide operating temperature range and high protection rating
- Robust housing for use in harsh industrial environments
Additional Notes
| MPN | Product designation | Communication interface | Protection | IO-Link revision |
|---|---|---|---|---|
| AC5225 | AS-i input module | IO-Link, AS-i | IP 67 | 1 |
| AC6000 | IO-Link master StandardLine | IO-Link, AS-i | IP 65, IP 66, IP 67 | 1.1 |
| AC6002 | IO-Link master StandardLine | IO-Link, AS-i | IP 65, IP 66, IP 67 | 1.1 |
| AL1010 | IO-Link master PowerLine | IO-Link, PROFIBUS | IP 65, IP 67 | 1.1 |
| AL1100 | IO-Link master StandardLine | IO-Link, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1102 | IO-Link master StandardLine | IO-Link, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1120 | IO-Link master StandardLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1122 | IO-Link master StandardLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1300 | IO-Link master DataLine | IO-Link, MQTT JSON, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1302 | IO-Link master DataLine | IO-Link, MQTT JSON, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1320 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1322 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1330 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherCAT | IP 65, IP 66, IP 67 | 1.1 |
| AL1332 | IO-Link master DataLine | IO-Link, MQTT JSON, EtherCAT | IP 65, IP 66, IP 67 | 1.1 |
| AL1340 | IO-Link master DataLine | IO-Link, MQTT JSON, Modbus TCP | IP 65, IP 66, IP 67 | 1.1 |
| AL1342 | IO-Link master DataLine | IO-Link, MQTT JSON, Modbus TCP | IP 65, IP 66, IP 67 | 1.1 |
| AL1350 | IO-Link master DataLine | IO-Link, MQTT JSON | IP 65, IP 66, IP 67 | 1.1 |
| AL1352 | IO-Link master DataLine | IO-Link, MQTT JSON | IP 65, IP 66, IP 67 | 1.1 |
| AL1370 | IO-Link master DataLine | IO-Link, MQTT JSON, POWERLINK | IP 65, IP 66, IP 67 | 1.1 |
| AL1372 | IO-Link master DataLine | IO-Link, MQTT JSON, POWERLINK | IP 65, IP 66, IP 67 | 1.1 |
| AL1400 | IO-Link master PerformanceLine | IO-Link, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1402 | IO-Link master PerformanceLine | IO-Link, PROFINET | IP 65, IP 66, IP 67 | 1.1 |
| AL1420 | IO-Link master PerformanceLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| AL1422 | IO-Link master PerformanceLine | IO-Link, EtherNet/IP | IP 65, IP 66, IP 67 | 1.1 |
| ZZ1060 | set USB IO-Link master | IO-Link, USB | IP 65, IP 67 | 1.1 |
| ZZ1100 | IO-Link master starter kit - PROFINET | |||
| ZZ1120 | IO-Link master starter kit - EtherNet/IP | |||
| ZZ1350 | IO-Link master starter kit - MQTT JSON |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-055010015 | IO-Link - IO-Link Gateways - Field mountable gateways for high pressure cleaning | $0.01 | |
| IFM-055010020 | IO-Link - IO-Link Gateways - DIN rail mountable gateways for control cabinets | $0.01 |
