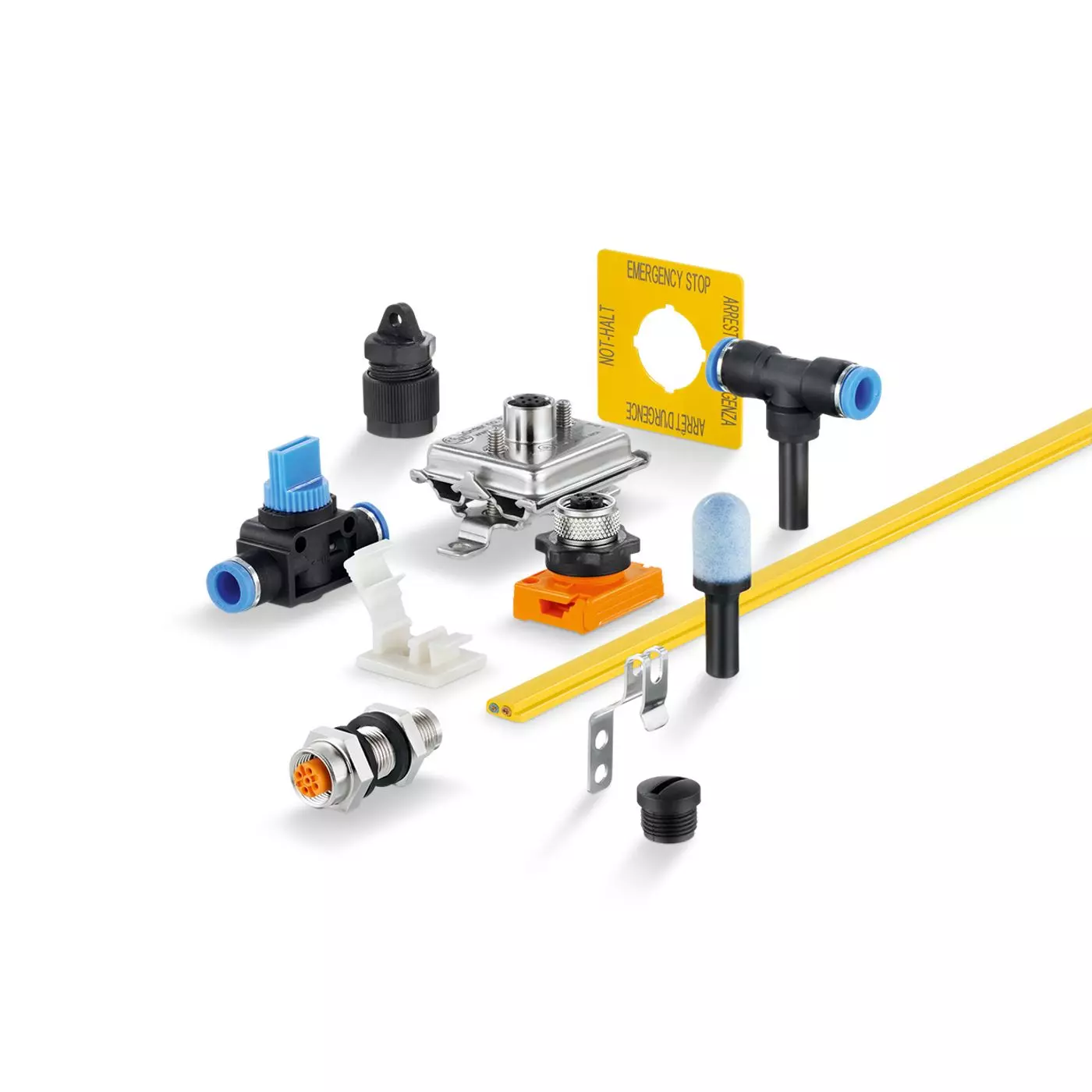

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Accessories for module lower parts
ifm offers a wide range of accessories for module lower parts, including protective caps to seal unused connections and flat cable seals to ensure the required protection rating.
Features & Benefits
- Seals to cover the unused cable entry
- Mounting plates for field and DIN rail mounting
- Sealings and caps to ensure the protection rating
Additional Notes
| MPN | Product designation | Dimensions | Thread length | Inside diameter | Material |
|---|---|---|---|---|---|
| AC3000 | AS-Interface module cover | plastics | |||
| AC3003 | Flat cable seal | NBR, Acrylnitril-Butadien-Kautschuk | |||
| AC3016 | Protective cap | 24 x 10 x 24 mm | plastics black | ||
| E37340 | DIN rail clip | stainless steel (1.4310 / 301) | |||
| E7000A | impact protection housing | 106.8 x 117.6 x 173 mm | housing: stainless steel (1.4016 / 430); button head hexagon socket screw: stainless steel (1.4301 / 304) | ||
| E70067 | Cable clip for fixing the AS-Interface flat cable | PA 6.6 | |||
| E70113 | Heat-shrink cap | plastics | |||
| E70299 | Flat cable blank | 4 x 10 x 60 mm | silicone rubber blue | ||
| E70351 | Seals | NBR | |||
| E70355 | Viton compound/high-grade stainless steel kit for ClassicLine module | O-ring: FKM; screw: stainless steel (1.4567 / 304Cu); Gasket: FKM | |||
| E70413 | Flat cable seal | ULTRAMID; sealing: NBR | |||
| E70432 | DIN rail adapter | screws: galvanized; DIN rail adapter: AlMgSi0.5 F22; mounting clip: C100S+QT galvanized | |||
| E73006 | DIN rail adapter | 88.5 x 1.5 x 30 mm | Mounting plate: stainless steel (1.4301 / 304); DIN rail clip: stainless steel (1.4310 / 301); threaded bush: stainless steel (1.4567 / 304Cu) | ||
| E73007 | DIN rail adapter | 129.5 x 1.5 x 30 mm | Mounting plate: stainless steel (1.4301 / 304); DIN rail clip: stainless steel (1.4310 / 301); threaded bush: stainless steel (1.4567 / 304Cu) | ||
| E73008 | Wall passage | brass nickel-plated; sealing: FKM | |||
| E73009 | Wall passage | stainless steel (1.4305 / 303); sealing: EPDM | |||
| E74999 | Mounting plate | 79.4 x 11.6 x 44.1 mm | PA | ||
| E75396 | DIN rail adapter | Mounting plate: stainless steel (1.4301 / 304); DIN rail adapter: PC; lock nuts: galvanized |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-050080010 | Industrial Communication - Accessories for AS-i - Flat cables | $0.01 | |
| IFM-050080020 | Industrial Communication - Accessories for AS-i - Flat cable splitters and insulation displacement connectors | $0.01 | |
| IFM-050080030 | Industrial Communication - Accessories for AS-i - Extensions, terminations and testing of the cable | $0.01 | |
| IFM-050080046 | Industrial Communication - Accessories for AS-i - Patchcables with valve plug | $0.01 | |
| IFM-050080050 | Industrial Communication - Accessories for AS-i - Addressing and programming cables | $0.01 | |
| IFM-050080080 | Industrial Communication - Accessories for AS-i - COMBICON connectors | $0.01 | |
| IFM-050080090 | Industrial Communication - Accessories for AS-i - Module lower parts | $0.01 | |
| IFM-050080110 | Industrial Communication - Accessories for AS-i - Addressing and diagnostic units | $0.01 | |
| IFM-050080120 | Industrial Communication - Accessories for AS-i - For Safety at Work | $0.01 | |
| IFM-050080130 | Industrial Communication - Accessories for AS-i - Pneumatic accessories | $0.01 | |
| IFM-050080140 | Industrial Communication - Accessories for AS-i - Accessories for AS-Interface – Tools | $0.01 |
