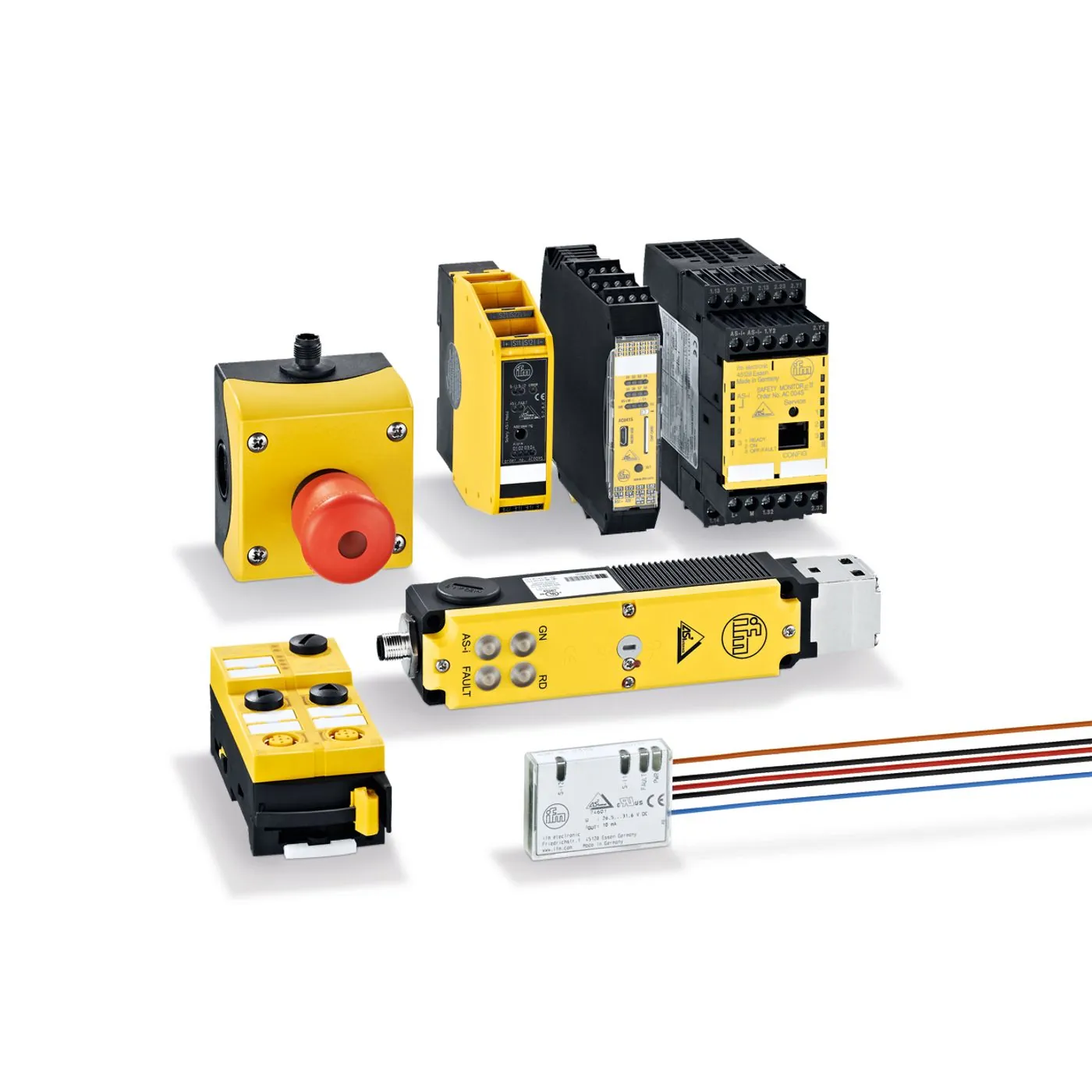

Monitors, PLCs and gateways
AS-i safety monitors are used to monitor protective equipment such as E-stops in AS-i systems. They monitor the code sequences to be transmitted in the AS-i network. In the case of message deviations or timeouts the monitor ensures the safe state of the system. The unit is available in two versions: with either one or two redundantly designed output switching elements. They can be connected to the AS-i system at any position. Several AS-i safety monitors can be operated via one AS-i master. Any grouping for evaluation of the safe AS-i slaves is possible. Known safety relay functions like "e-stop", "stop categories 0 or 1", "two-hand operation" or "enable switch" can be implemented via the software. One AS-i safety monitor thus replaces many traditional safety relays.
- Various logic functions
- Monitoring of up to 31 safe AS-i slaves
- Applications: door monitoring, light curtains, e-stop, two-hand control
- Two OSSDs which can be switched off separately from each other
- TÜV approval to EN 954-1 and IEC 61508
SKU | Description | List price | - |
---|---|---|---|
IFM-050050005 | Industrial Communication - Safety Network (AS-i safety at work) - Gateways with fail-safe PLC | $0.01 | |
IFM-050050020 | Industrial Communication - Safety Network (AS-i safety at work) - Safe input/output modules | $0.01 | |
IFM-050050030 | Industrial Communication - Safety Network (AS-i safety at work) - E-stop devices | $0.01 | |
IFM-050050040 | Industrial Communication - Safety Network (AS-i safety at work) - Safe AS-i door switches | $0.01 | |
IFM-050050060 | Industrial Communication - Safety Network (AS-i safety at work) - Rope pull emergency stop switches | $0.01 | |
IFM-050050070 | Industrial Communication - Safety Network (AS-i safety at work) - PCB solutions | $0.01 |
