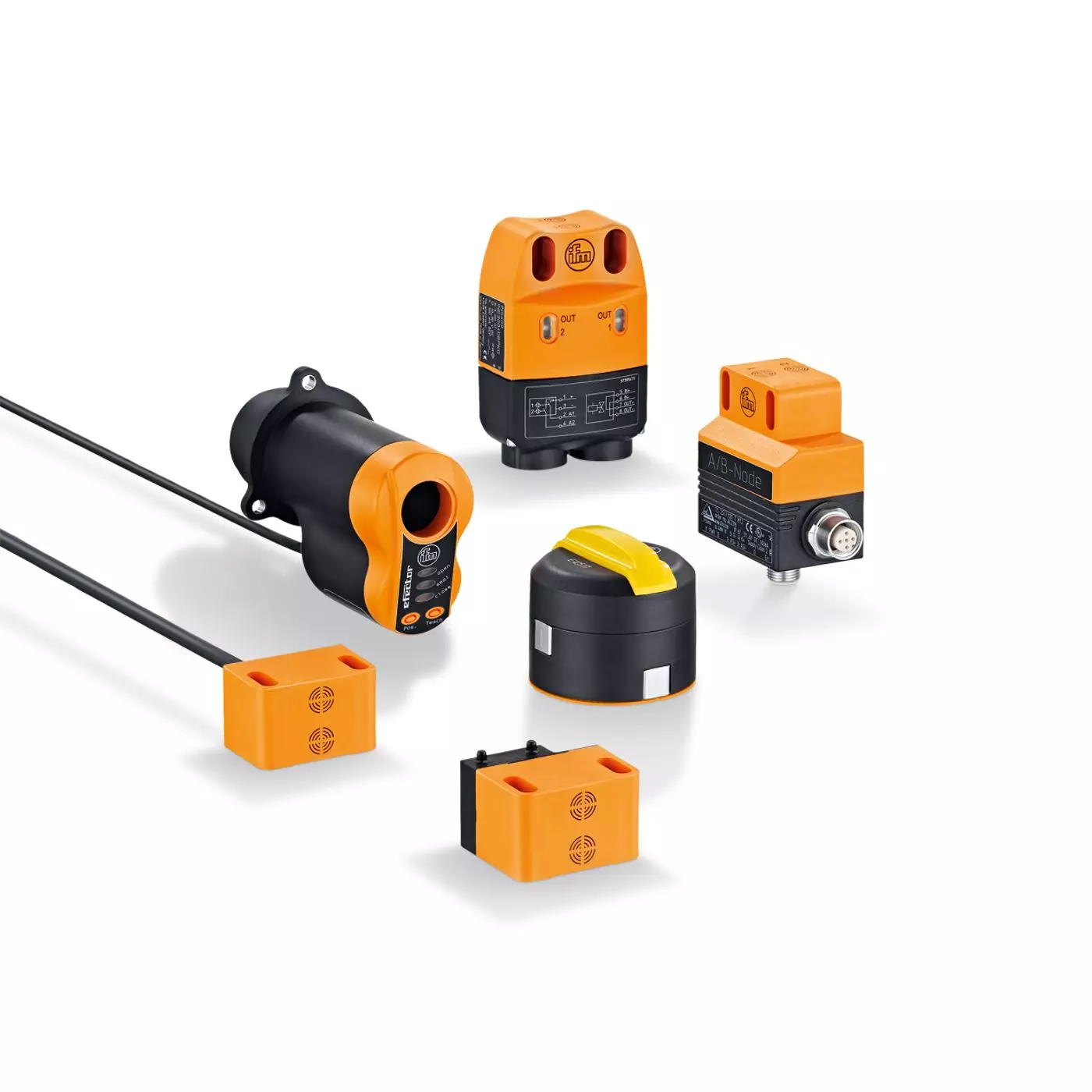

Pictures may not be actual SKU
Product details
Spot an error? Let us know!
Headline
Switching amplifiers for Namur sensors
NAMUR switching amplifiers evaluate a sensor signal and transmit a switching signal to the controller. They meet the requirements of many international directives for use in hazardous areas. Switching amplifiers are available with relay outputs, active transistor outputs or potential-free optocoupler outputs. The amplifiers are designed for the connection to NAMUR sensors according to DIN EN 60947-5-6 and mechanical switches. They provide the supply voltage for the intrinsically safe circuit.
Features & Benefits
- One- or two-channel design
- Reliable short-circuit and wire-break monitoring
- Easily programmable output functions
- Relay or transistor outputs
- Quick and easy mounting
Additional Notes
| MPN | Operating voltage | ATEX marking | Number of channels | Output function | Switching frequency |
|---|---|---|---|---|---|
| N0030A | < 115 AC V | II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC | 1 | 10 Hz | |
| N0031A | < 230 AC V | II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC | 1 | 10 Hz | |
| N0032A | < 115 AC V | II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC | 2 | 10 Hz | |
| N0033A | < 230 AC V | II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC | 2 | 10 Hz | |
| N0530A | 24 DC V | II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC | 1 | 10 Hz | |
| N0531A | 24 DC V | II (1) G [Ex ia] IIC, II (1) D [Ex ia] IIIC | 1 | 5000 Hz | |
| N0532A | 24 DC V | II (1) G [Ex ia] IIC, II (1) D [Ex ia] IIIC | 2 | 5000 Hz | |
| N0533A | 24 DC V | II (1) G [Ex ia Ga] IIC, II (1) D [Ex ia Da] IIIC | 2 | 10 Hz | |
| N0534A | 24 DC V | II (1) G [Ex ia] IIC, II (1) D [Ex ia] IIIC | 2 | 5000 Hz |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040070010 | Process Sensors - Valve Position - Sensors for quarter-turn actuators | $0.01 | |
| IFM-040070011 | Process Sensors - Valve Position - Smart valve sensor for valve actuators | $0.01 | |
| IFM-040070015 | Process Sensors - Valve Position - Value-added automation sets for valve actuators | $0.01 | |
| IFM-040070020 | Process Sensors - Valve Position - Inductive sensors for rising stem valves | $0.01 | |
| IFM-040070030 | Process Sensors - Valve Position - Target pucks for valve actuators | $0.01 | |
| IFM-040070035 | Process Sensors - Valve Position - Mounting brackets for manual valves and ball valves | $0.01 | |
| IFM-040070050 | Process Sensors - Valve Position - Switching amplifiers for conversion of sensor signals | $0.01 |
