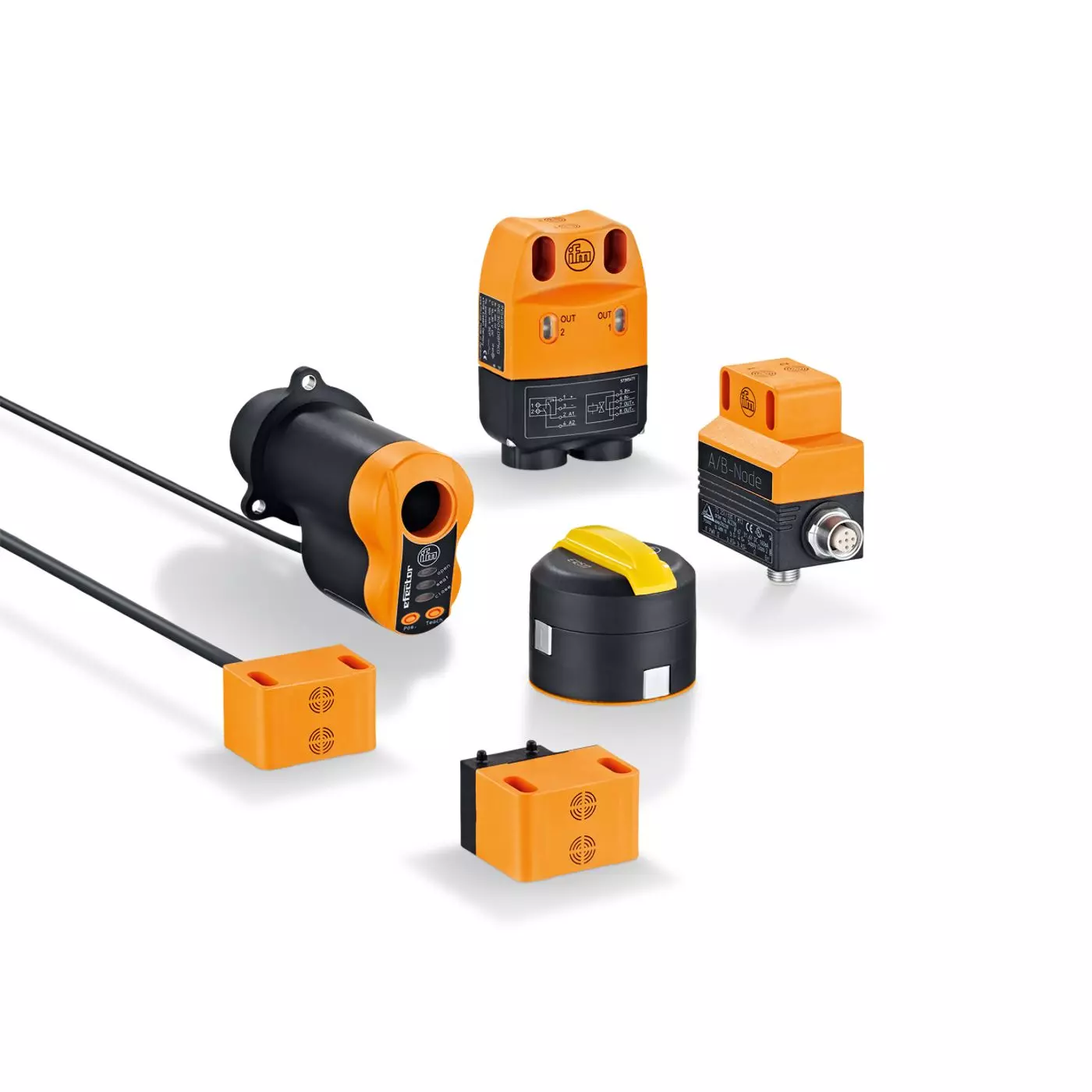

Dual inductive sensors for valve actuators
In industrial processes where liquids, air or gases are used, valves are needed for dosing and control. Dual inductive sensors of the IN and AC23 series provide reliable feedback of the valve positions on pneumatic valve actuators and valves. They are operated in combination with a switch target (also called 'puck'). The puck is mounted directly on the actuator shaft. It is equipped with two metal screws that are mounted at different heights and offset by 90°. A dual inductive sensor with two integral sensors detects the upper or the lower metal screw and, thus, the "open" or "closed" position of the valve. The system operates without contact or wear and is self-cleaning. It is virtually resistant to external influence and insensitive to mechanical stress such as vibration and shock. The dual sensor is available with two switching outputs or AS-Interface.
Features & Benefits
- Quick and secure mounting with only three screws
- Units with M12 connector or terminal chamber
- Non-contact and self-cleaning system
- High shock and vibration resistance
- Large selection of target pucks
Additional Notes
| MPN | Dimensions | Connection | Output function | Ambient temperature | Electrical design |
|---|---|---|---|---|---|
| AC2310 | 55 x 60 x 35 mm | M12 Connector | -20...70 °C | AS-i | |
| AC2315 | 55 x 60 x 35 mm | M12 Connector | -20...70 °C | AS-i | |
| AC2316 | 55 x 60 x 35 mm | M12 Connector | -20...70 °C | AS-i | |
| AC2317 | 55 x 60 x 35 mm | M12 Connector | PNP | -20...70 °C | AS-i |
| IN0100 | 40 x 26 x 26 mm | 2 m PVC-Cable | 2 x normally open | -25...80 °C | |
| IN0108 | 40 x 26 x 40 mm | M18 Connector | 2 x normally open | -25...80 °C | |
| IN0110 | 40 x 26 x 40 mm | 2 m PVC-Cable | 2 x normally open | -25...80 °C | |
| IN0117 | 40 x 26 x 26 mm | 7/8" Connector | 2 x normally open | -25...80 °C | |
| IN0118 | 7/8" Connector | 2 x normally open | -25...80 °C | ||
| IN0131 | 33 x 60 x 92 mm | Terminal strip in the terminal chamber | 2 x normally open | -25...70 °C | |
| IN507A | 40 x 26 x 47 mm | M12 Connector | 2 x normally open | -20...60 °C | PNP |
| IN512A | 40 x 26 x 26 mm | 2 m PVC-Cable | 2 x normally open | -20...60 °C | PNP |
| IN5224 | 40 x 26 x 26 mm | M12 Connector | 2 x normally open | -20...80 °C | PNP/NPN |
| IN5225 | 40 x 26 x 26 mm | M12 Connector | 2 x normally open | -25...80 °C | PNP |
| IN5251 | 40 x 26 x 26 mm | 2 m PVC-Cable | 2 x normally open | -25...80 °C | PNP |
| IN5280 | M12 Connector | normally open | -25...80 °C | PNP | |
| IN5285 | 40 x 26 x 26 mm | M18 Connector | 2 x normally open | -20...80 °C | PNP |
| IN5290 | 40 x 26 x 26 mm | 2 m PVC-Cable | 2 x normally open | -25...80 °C | PNP/NPN |
| IN5327 | 40 x 26 x 47 mm | M12 Connector | 2 x normally open | -25...80 °C | PNP |
| IN5331 | 40 x 26 x 47 mm | M12 Connector | 2 x normally open | -25...80 °C | PNP/NPN |
| IN5334 | 40 x 26 x 60 mm | Rd24 / M12 Connector | 2 x normally open | -25...80 °C | PNP |
| IN5337 | M12 Connector | 2 x normally open | -25...80 °C | PNP | |
| IN5373 | 40 x 26 x 26 mm | M12 Connector | 2 x normally open | -25...70 °C | PNP |
| IN5377 | 40 x 26 x 26 mm | 0.3 m PVC-Cable; M12 Connector | 2 x normally open | -25...80 °C | PNP |
| IN5409 | 33 x 60 x 92 mm | Terminal strip in the terminal chamber | 2 x normally open | -25...80 °C | PNP |
| IN5416 | 40 x 26 x 26 mm | M12 Connector | 2 x normally open | -25...80 °C | PNP |
| IN5417 | 33 x 60 x 92 mm | M12 Connector | 2 x normally open | -25...80 °C | PNP |
| MVQ101 | 95 x 50 x 57 mm | M12 Connector | 3 normally open / normally closed; (selectable) | -25...70 °C | PNP |
| MVQ201 | 95 x 50 x 57 mm | M12 Connector | 2 x normally open / normally closed; (selectable) | -25...70 °C | PNP |
| N95001 | 40 x 26 x 60 mm | M12 / Rd24 Connector | 2 x normally closed | -20...70 °C | NAMUR |
| NN5008 | 40 x 26 x 26 mm | M12 Connector | 2 x normally closed | -20...80 °C | NAMUR |
| NN5009 | 40 x 26 x 26 mm | 2 m silicone-Cable | 2 x normally closed | -20...80 °C | NAMUR |
| NN5011 | 40 x 26 x 26 mm | 10 m silicone-Cable | 2 x normally closed | -20...80 °C | NAMUR |
| NN5013 | 40 x 26 x 26 mm | M18 Connector | 2 x normally closed | -20...80 °C | NAMUR |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-040070011 | Process Sensors - Valve Position - Smart valve sensor for valve actuators | $0.01 | |
| IFM-040070015 | Process Sensors - Valve Position - Value-added automation sets for valve actuators | $0.01 | |
| IFM-040070020 | Process Sensors - Valve Position - Inductive sensors for rising stem valves | $0.01 | |
| IFM-040070030 | Process Sensors - Valve Position - Target pucks for valve actuators | $0.01 | |
| IFM-040070035 | Process Sensors - Valve Position - Mounting brackets for manual valves and ball valves | $0.01 | |
| IFM-040070040 | Process Sensors - Valve Position - Switching amplifiers for Namur sensors | $0.01 | |
| IFM-040070050 | Process Sensors - Valve Position - Switching amplifiers for conversion of sensor signals | $0.01 |
