Headline
Use in the food industry

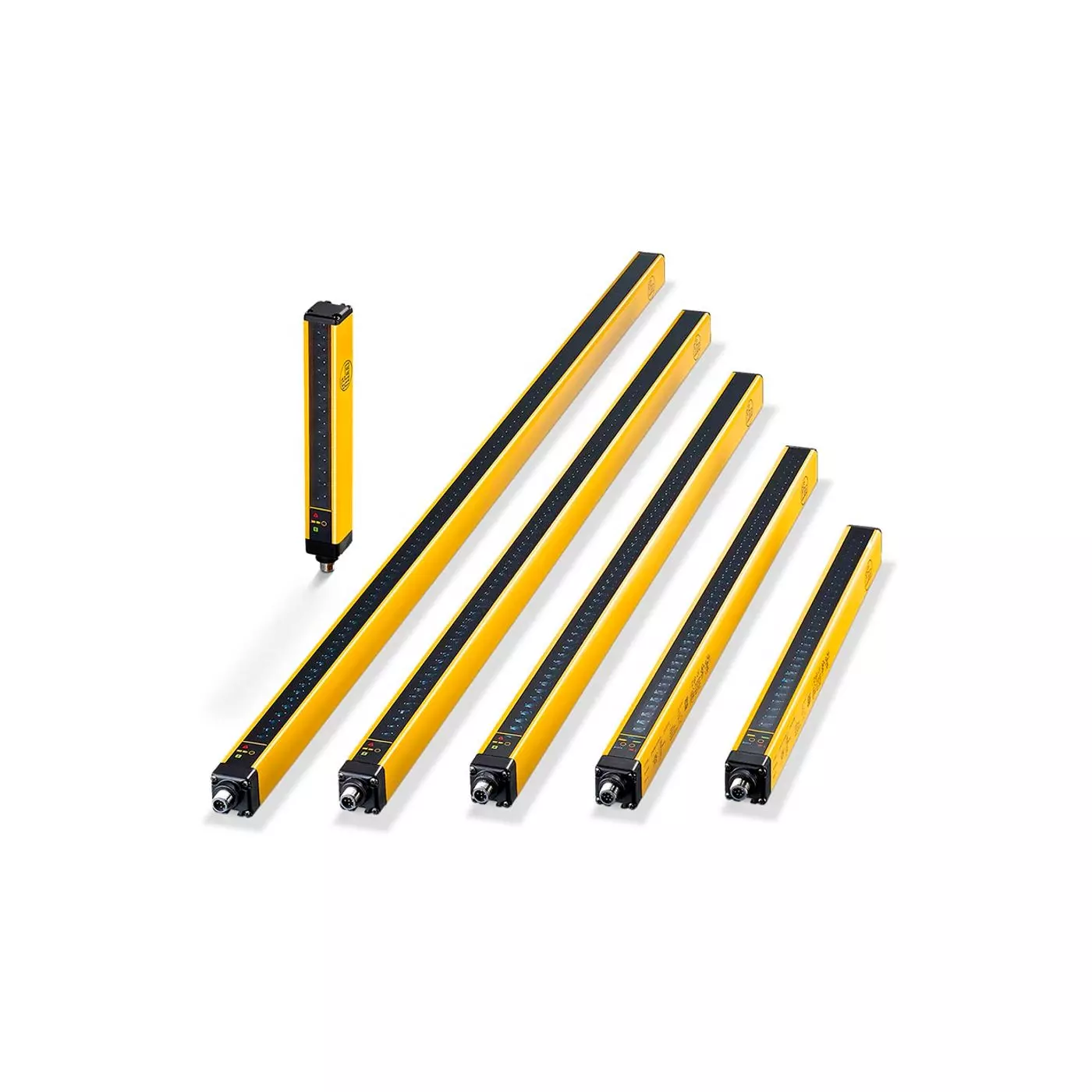

OY series safety light grids for food and beverage applications can be used to safeguard hazardous areas and protect personnel. Depending on the protected area height light grids with 2, 3 or 4 light beams are available. The safety light grids with protective tube are rated IP 69K. They are resistant to high-pressure cleaning with aggressive cleaning agents. Safety light grids are optoelectronic safety devices consisting of one transmitter and one receiver. They conform to the safety requirements of type 2 / SIL 1 or type 4 / SIL 3. Typical applications include access prevention or hazardous area monitoring of palletizers, saws and production lines.
Features & Benefits
- Integrated protective tube for IP69K rating
- Reliable protection of hazardous areas
- Various ranges and resolutions available
- Resistant to steam and high-pressure cleaning
- Hygienic and robust design
Additional Notes
| MPN | Product designation | Complies with the requirements | Number of beams | Protected area height | Protection area width (low light intensity) |
|---|---|---|---|---|---|
| OY421S | Safety light grid | ESPE-type 4 / SIL 3 | 2 | 510 mm | 0...7 m |
| OY422S | Safety light grid | ESPE-type 4 / SIL 3 | 3 | 810 mm | 0...7 m |
| OY423S | Safety light grid | ESPE-type 4 / SIL 3 | 4 | 910 mm | 0...7 m |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-030030010 | Safety Sensors - Safety light grids - Industrial automation applications | $0.01 | |
| IFM-030030030 | Safety Sensors - Safety light grids - Active/passive system | $0.01 | |
| IFM-030030040 | Safety Sensors - Safety light grids - with Muting function | $0.01 |
