Headline
Use in factory automation

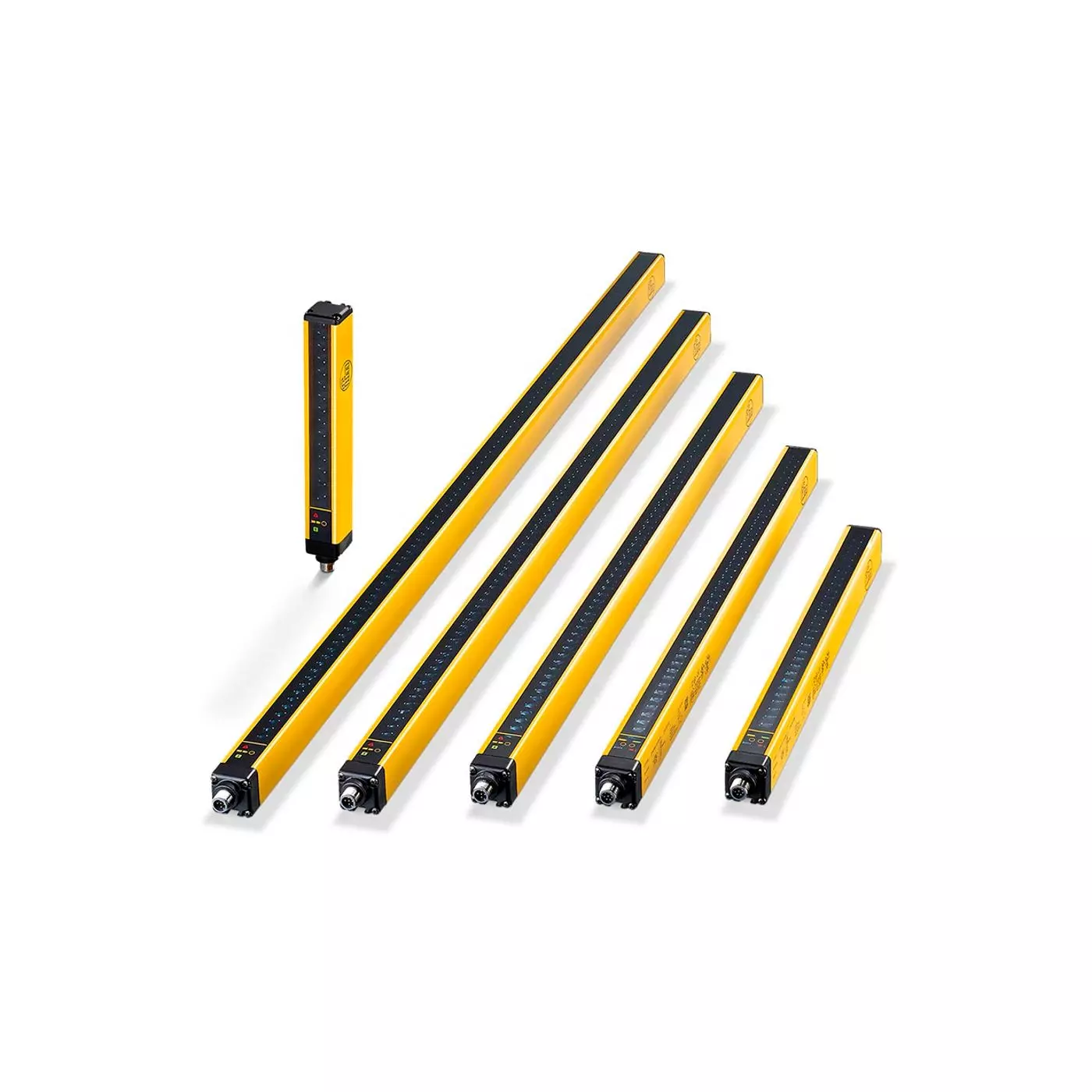

OY series safety light grids are used to safeguard hazardous areas and protect personnel. Thanks to their slim design, they are suited for applications with limited mounting space. Depending on the protected area height light grids with 2, 3 or 4 light beams are available. Safety light grids are optoelectronic safety devices consisting of one transmitter and one receiver. They conform to the safety requirements of type 2 / SIL 1 or type 4 / SIL 3. Typical applications include access prevention or hazardous area monitoring of robot cells and production lines.
Features & Benefits
- Type 4 (IEC 61496) safety light curtains at Type 2 pricing
- Reliable protection of hazardous areas
- No dead space when mounted in in L shape
- Industry standard M12 connection for simple wiring
Additional Notes
| MPN | Product designation | Complies with the requirements | Number of beams | Protected area height | Protection area width (low light intensity) |
|---|---|---|---|---|---|
| OY114S | Safety light grid | ESPE-type 4 / SIL 3 | 2 | 510 mm | 0...4 m |
| OY115S | Safety light grid | ESPE-type 4 / SIL 3 | 3 | 810 mm | 0...4 m |
| OY116S | Safety light grid | ESPE-type 4 / SIL 3 | 4 | 910 mm | 0...4 m |
| OY120S | Safety light grid | ESPE-type 4 / SIL 3 | 2 | 510 mm | 0...10 m |
| OY121S | Safety light grid | ESPE-type 4 / SIL 3 | 3 | 810 mm | 0...10 m |
| OY122S | Safety light grid | ESPE-type 4 / SIL 3 | 4 | 910 mm | 0...10 m |
| OY511S | Safety light grid | ESPE-type 4 / SIL 3 | 2 | 510 mm | 0...4 m |
| OY512S | Safety light grid | ESPE-type 4 / SIL 3 | 3 | 810 mm | 0...4 m |
| OY513S | Safety light grid | ESPE-type 4 / SIL 3 | 4 | 910 mm | 0...4 m |
| OY951S | Safety light grid | ESPE-type 4 / SIL 3 | 2 | 510 mm | 8...30 m |
| OY952S | Safety light grid | ESPE-type 4 / SIL 3 | 3 | 810 mm | 8...30 m |
| OY953S | Safety light grid | ESPE-type 4 / SIL 3 | 4 | 910 mm | 8...30 m |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-030030020 | Safety Sensors - Safety light grids - High pressure cleaning applications | $0.01 | |
| IFM-030030030 | Safety Sensors - Safety light grids - Active/passive system | $0.01 | |
| IFM-030030040 | Safety Sensors - Safety light grids - with Muting function | $0.01 |
