Headline
Use in the food industry

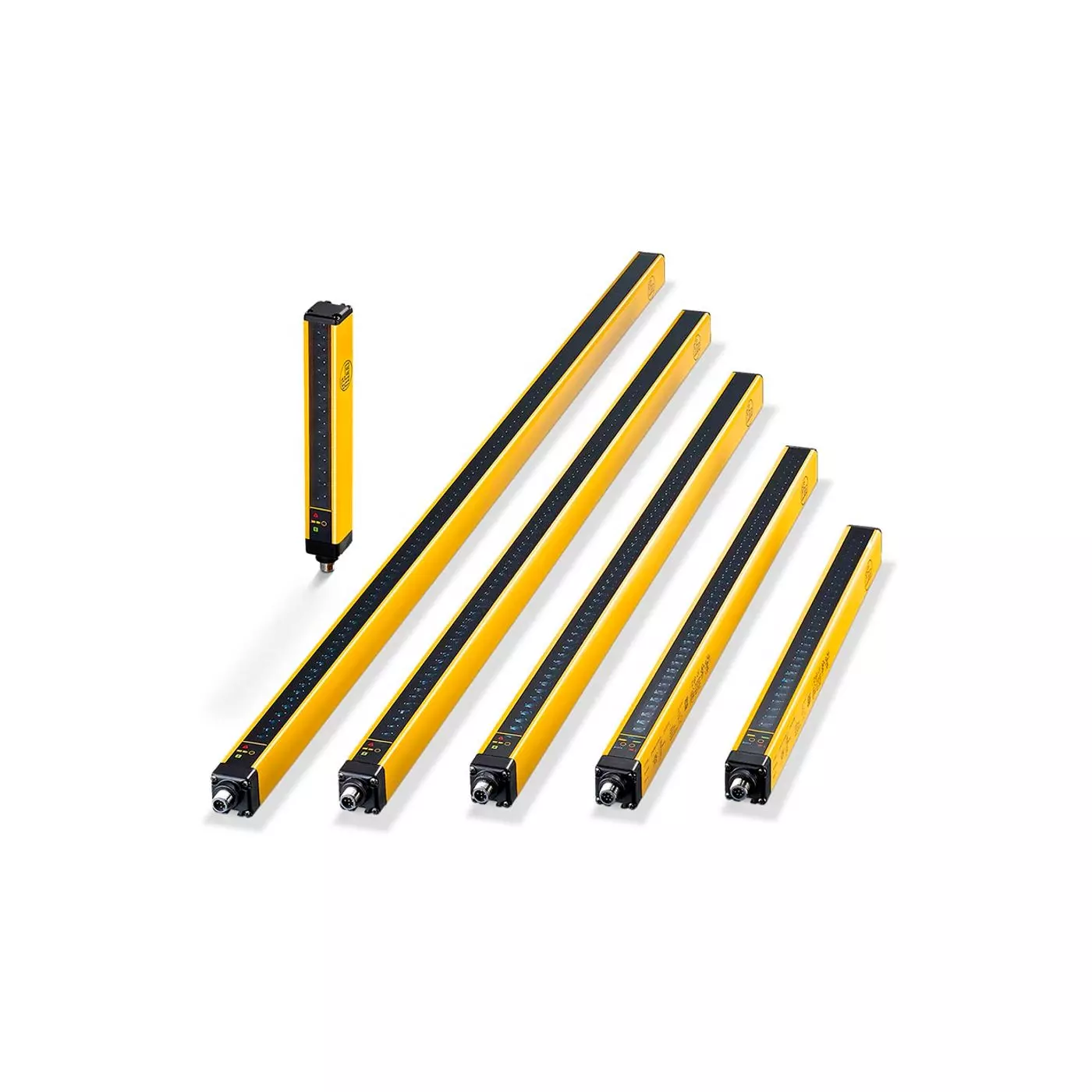

OY series safety light curtains for food and beverage applications can be used to safeguard hazardous areas and protect personnel. Depending on the protected area height and number of beams, the units can be adjusted to protect hands or an entire person. The safety light curtains with protective tube are rated IP 69K. They are resistant to high-pressure cleaning with aggressive cleaning agents. Safety light curtains are optoelectronic safety devices consisting of one transmitter and one receiver. They conform to the safety requirements of type 2 / SIL 1 or type 4 / SIL 3. Typical applications include access prevention or hazardous area monitoring of palletizers, saws and production lines.
Features & Benefits
- Integrated protective tube for IP69K rating
- Reliable protection of hazardous areas
- Various ranges and resolutions available
- Resistant to steam and high-pressure cleaning
- Hygienic and robust design
Additional Notes
| MPN | Product designation | Complies with the requirements | Resolution (detection capacity d) | Protected area height | Protection area width (low light intensity) |
|---|---|---|---|---|---|
| OY403S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 460 mm | 0...2 m |
| OY405S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 760 mm | 0...2 m |
| OY407S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 1060 mm | 0...2 m |
| OY441S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 160 mm | 0...7 m |
| OY442S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 310 mm | 0...7 m |
| OY443S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 460 mm | 0...7 m |
| OY444S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 610 mm | 0...7 m |
| OY445S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 760 mm | 0...7 m |
| OY446S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 910 mm | 0...7 m |
| OY447S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1060 mm | 0...7 m |
| OY448S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1210 mm | 0...7 m |
| OY449S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1360 mm | 0...7 m |
| OY450S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1510 mm | 0...7 m |
| OY451S | Safety light curtain | ESPE-type 4 / SIL 3 | 40 mm | 1660 mm | 0...7 m |
| OY453S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1810 mm | 0...7 m |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-030020010 | Safety Sensors - Light curtains - Industrial automation applications | $0.01 | |
| IFM-030020030 | Safety Sensors - Light curtains - Floating blanking applications | $0.01 |
