Headline
Use in factory automation

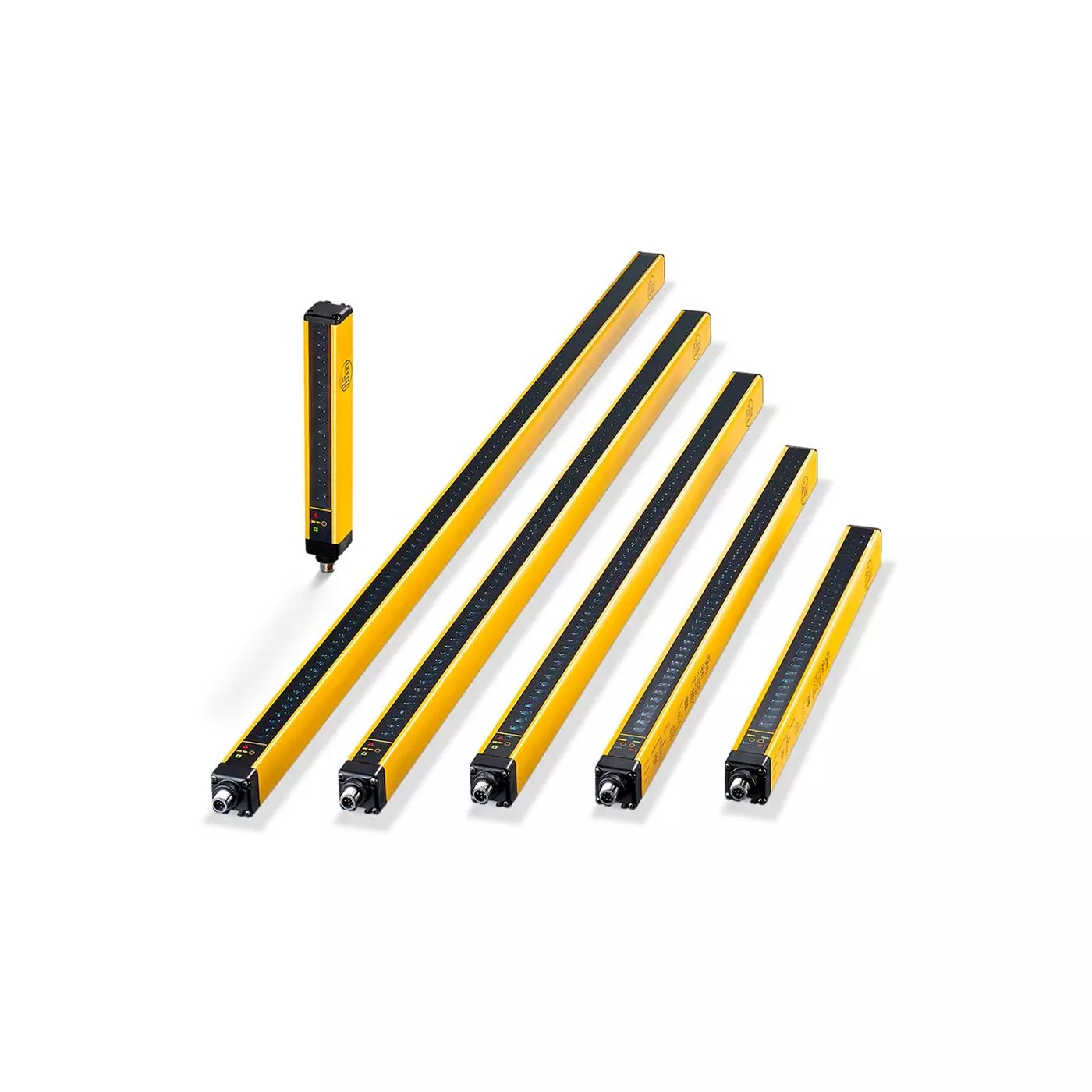

OY series safety light curtains are used to safeguard hazardous areas and protect personnel. Depending on the protected area height and number of beams, the units can be adjusted to protect hands or an entire person. Thanks to their slim design, they are suited for applications with limited mounting space. Safety light curtains are optoelectronic safety devices consisting of one transmitter and one receiver. They conform to the safety requirements of type 2 / SIL 1 or type 4 / SIL 3. Typical applications include access prevention or hazardous area monitoring of robot cells and production lines.
Features & Benefits
- Type 4 (IEC 61496) safety light curtains at Type 2 pricing
- Reliable protection of hazardous areas
- Short and long range selectable via wiring
- No dead space when mounted in in L shape
- Industry standard M12 connection for simple wiring
Additional Notes
| MPN | Product designation | Complies with the requirements | Resolution (detection capacity d) | Protected area height | Protection area width (low light intensity) |
|---|---|---|---|---|---|
| OY001S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 160 mm | 0...3 m |
| OY002S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 310 mm | 0...3 m |
| OY003S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 460 mm | 0...3 m |
| OY004S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 610 mm | 0...3 m |
| OY005S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 760 mm | 0...3 m |
| OY006S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 910 mm | 0...3 m |
| OY007S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 1060 mm | 0...3 m |
| OY008S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 1210 mm | 0...3 m |
| OY009S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 1360 mm | 0...3 m |
| OY010S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 1510 mm | 0...3 m |
| OY011S | Safety light curtain | ESPE-type 4 / SIL 3 | 14 mm | 1810 mm | 0...3 m |
| OY041S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 160 mm | 0...4 m |
| OY042S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 310 mm | 0...4 m |
| OY043S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 460 mm | 0...4 m |
| OY044S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 610 mm | 0...4 m |
| OY045S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 760 mm | 0...4 m |
| OY046S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 910 mm | 0...4 m |
| OY047S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1060 mm | 0...4 m |
| OY048S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1210 mm | 0...4 m |
| OY049S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1360 mm | 0...4 m |
| OY050S | Safety light curtain | ESPE-type 4 / SIL 3 | 30 mm | 1510 mm | 0...4 m |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-030020020 | Safety Sensors - Light curtains - High pressure cleaning applications | $0.01 | |
| IFM-030020030 | Safety Sensors - Light curtains - Floating blanking applications | $0.01 |
