Headline

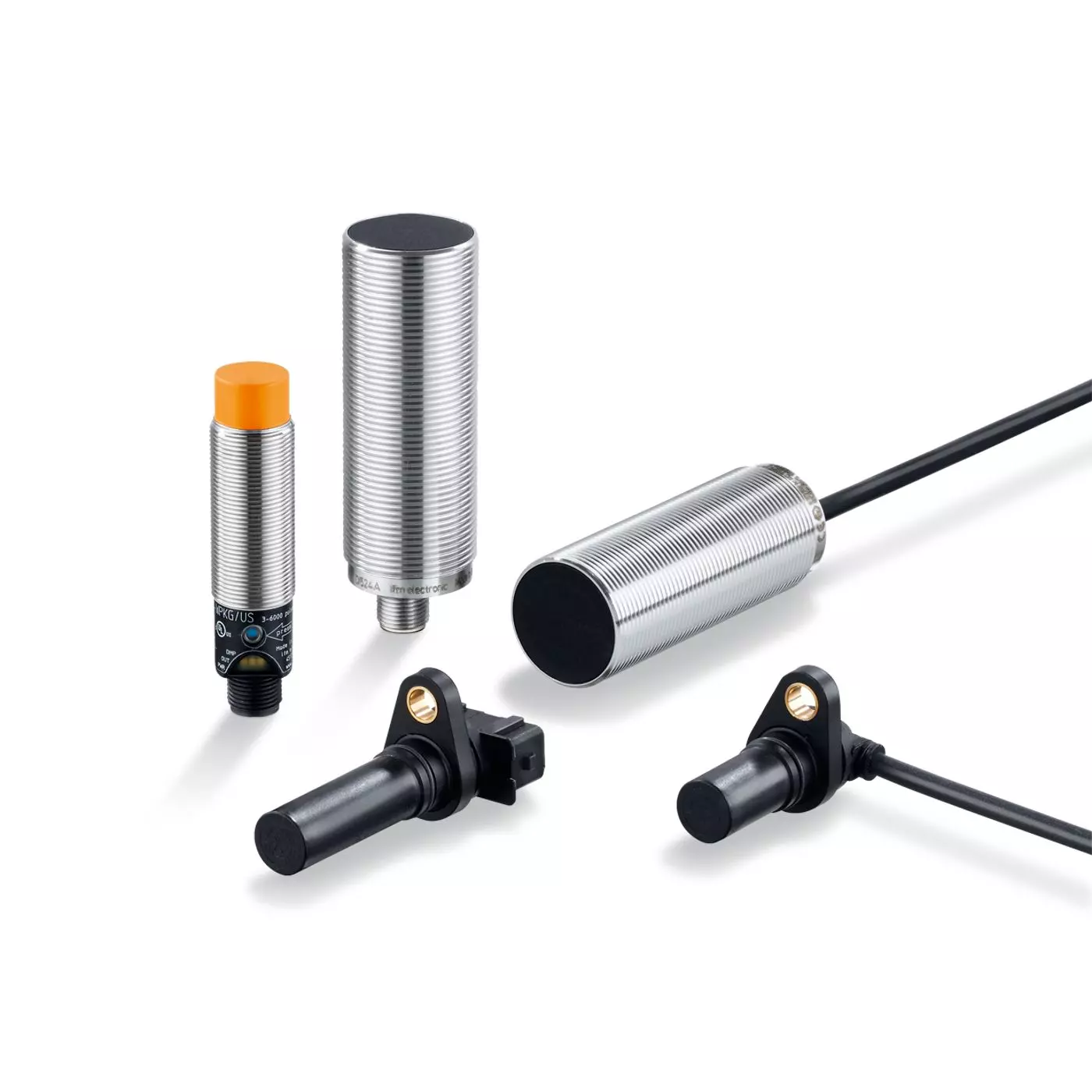

Speed sensors for drives and axes
Thanks to their high switching frequency of 15,000 Hz and an extended temperature range of -32...125 °C, the magnetic MX5 type speed sensors reliably detect the speed and direction of rotation on drives, axes and shafts. The sensors use Hall measuring cells, so that they function reliably and without contact even in cases of heavy soiling. The housing concept makes various combinations of housing lengths and connections possible, such as straight or angled cable outlet and AMP connectors.
Features & Benefits
- Non-contact detection of metal toothed wheels
- For very high switching frequencies up to 15,000 Hz
- Precise detection of the toothed wheel
- Wide operating temperature range
- Quick installation with flange adapters
Additional Notes
| MPN | Installation length | Output | Switching frequency | Connection | Ambient temperature |
|---|---|---|---|---|---|
| MX5000 | 45 mm | DC NPN | 2...15000 Hz | AMP-Junior Timer Connector | -32...140 °C |
| MX5015 | 30 mm | DC NPN | 1...15000 Hz | 2 m PUR-Cable | -32...140 °C |
| MX5017 | 35 mm | DC NPN | 1...15000 Hz | 2 m PUR-Cable | -32...140 °C |
| MX5050 | 45 mm | DC PNP | 1...15000 Hz | 0.5 m PUR-Cable; M12 Connector | -32...85 °C |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| IFM-015020010 | Motion Control Sensors - Speed sensors - Compact speed monitors | $0.01 | |
| IFM-015020020 | Motion Control Sensors - Speed sensors - Compact speed monitors for hazardous areas | $0.01 |
