Headline

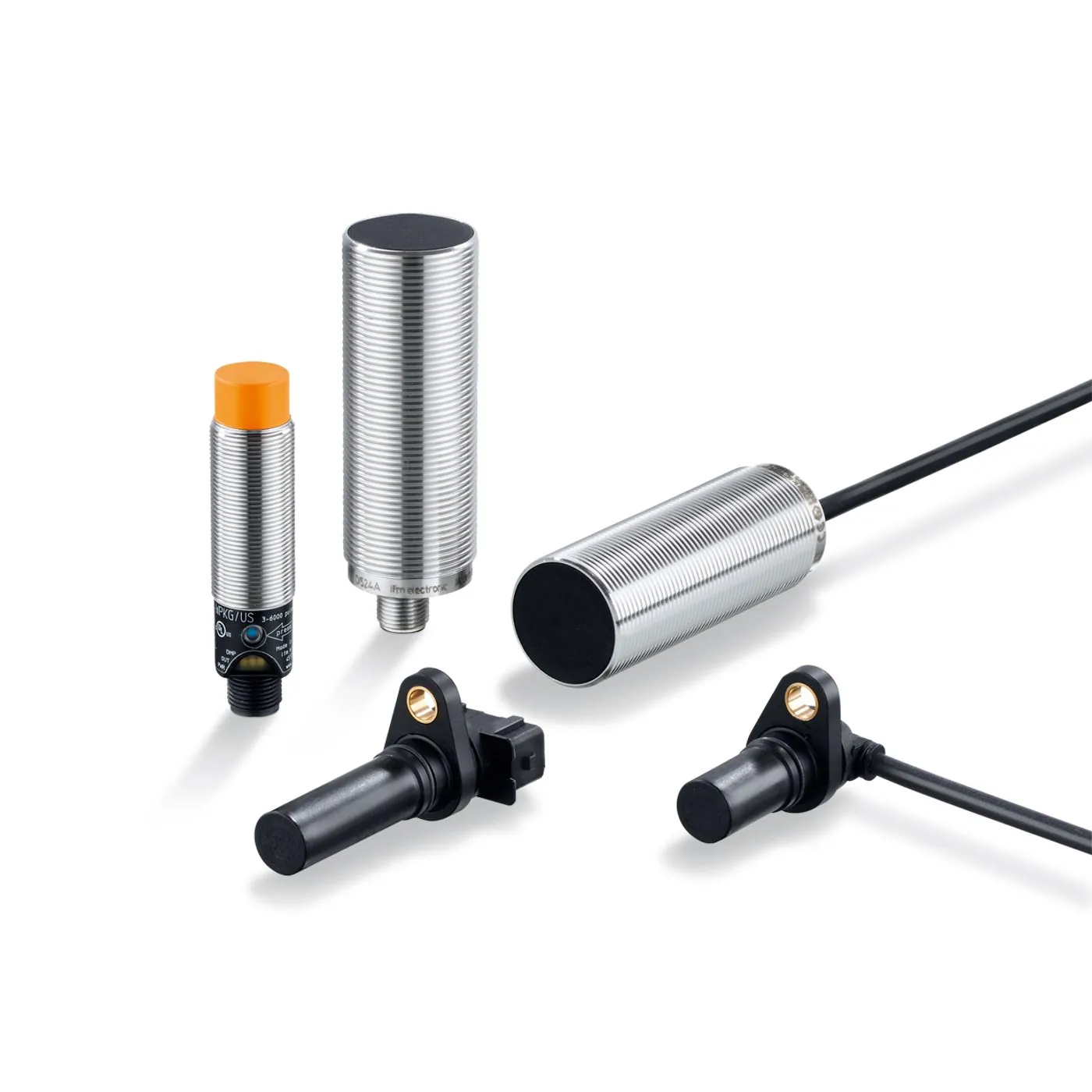

Compact speed monitors

In many industrial applications drives need to be monitored for rotational speed or standstill. In the automotive, food & beverage, steel and mining industries, speed sensors are used to safely detect standstill, overspeed and underspeed of drives or belt break on conveyors. The compact speed monitors of the DI series integrate rotational speed detection and monitoring in one unit. The sensor head operates using inductive sensing principles. The sensor detects metal actuating surfaces on rotating machine parts, e.g. on toothed wheels or camshafts. The integrated evaluation converts this information into rotational speed. The target speed is set easily via potentiometer or pushbutton on the unit.

Features & Benefits

2 in 1: speed sensor and evaluation in one compact housing
Space-saving design
Reduced installation complexity
Easy parameter setting by potentiometer or pushbutton
For direct connection to a PLC

Additional Notes

MPN	Setting range	Dimensions	Sensing range	Nominal voltage	Electrical design
DI0101	5...3600 Imp/min	M30 x 1.5 / L = 80 mm	10 mm flush mountable	20...250 AC/DC V
DI0104	5...3600 Imp/min	M30 x 1.5 / L = 80 mm	10 mm flush mountable	20...250 AC/DC V
DI103A	5...3600 Imp/min	M30 x 1.5 / L = 80 mm	10 mm flush mountable	20...250 AC/DC V
DI5004	5...300 Imp/min	M30 x 1.5 / L = 81 mm	10 mm flush mountable	10...36 DC V	PNP
DI5007	5...300 Imp/min	M30 x 1.5 / L = 81 mm	10 mm flush mountable	10...36 DC V	PNP
DI5020	5...3600 Imp/min	M30 x 1.5 / L = 80 mm	10 mm flush mountable	10...36 DC V	PNP
DI5021	5...3600 Imp/min	M30 x 1.5 / L = 80 mm	10 mm flush mountable	10...36 DC V	PNP
DI5022	5...3600 Imp/min	M30 x 1.5 / L = 80 mm	10 mm flush mountable	10...36 DC V	PNP
DI5023	5...3600 Imp/min	M30 x 1.5 / L = 92.3 mm	10 mm flush mountable	10...36 DC V	PNP
DI5026	5...3600 Imp/min	M30 x 1.5 / L = 80 mm	10 mm flush mountable	10...36 DC V	PNP/NPN
DI5027	5...24000 Imp/min	M12 x 1 / L = 60 mm	3.5 mm flush mountable	10...30 DC V	PNP/NPN
DI5028	5...24000 Imp/min	M12 x 1 / L = 60 mm	6.5 mm non-flush mountable	10...30 DC V	PNP/NPN
DI5029	5...24000 Imp/min	M18 x 1 / L = 60 mm	7 mm flush mountable	10...30 DC V	PNP/NPN
DI5030	5...24000 Imp/min	M18 x 1 / L = 60 mm	12 mm non-flush mountable	10...30 DC V	PNP/NPN
DI5031	5...14400 Imp/min	M30 x 1.5 / L = 65 mm	12 mm flush mountable	10...30 DC V	PNP/NPN
DI5032	5...14400 Imp/min	M30 x 1.5 / L = 65 mm	21 mm non-flush mountable	10...30 DC V	PNP/NPN
DI5033	5...9600 Imp/min	40 x 40 x 54 mm	20 mm flush mountable	10...30 DC V	PNP/NPN
DI5034	5...9600 Imp/min	40 x 40 x 54 mm	24 mm non-flush mountable	10...30 DC V	PNP/NPN
DI506A	5...300 Imp/min	M30 x 1.5 / L = 82 mm	10 mm flush mountable	10...36 DC V	PNP
DI6001	3...6000 Imp/min	M18 x 1 / L = 68 mm	12 mm non-flush mountable	10...36 DC V	PNP
DI602A	3...6000 Imp/min	M18 x 1 / L = 68 mm	8 mm non-flush mountable	10...36 DC V	PNP
