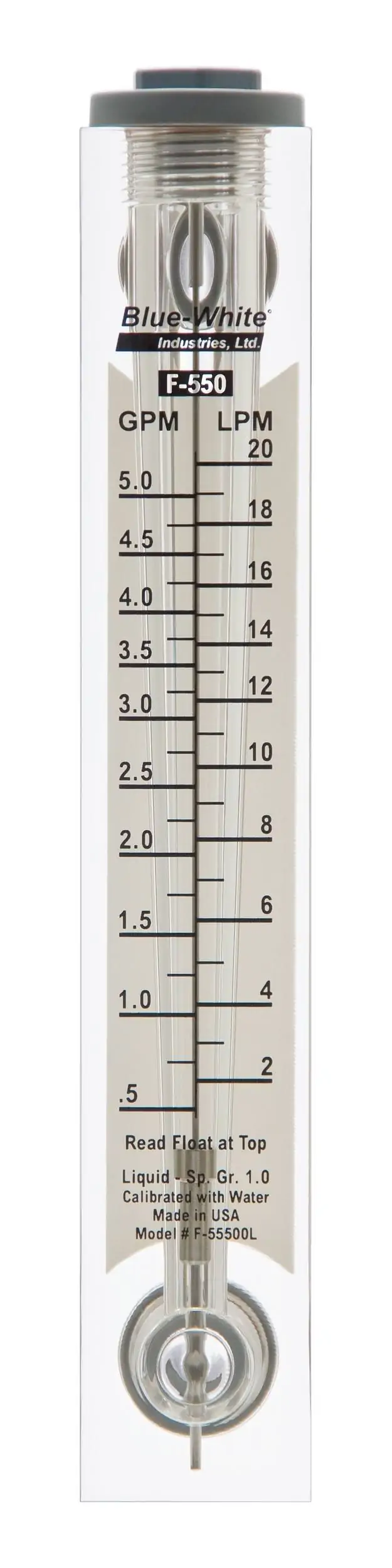

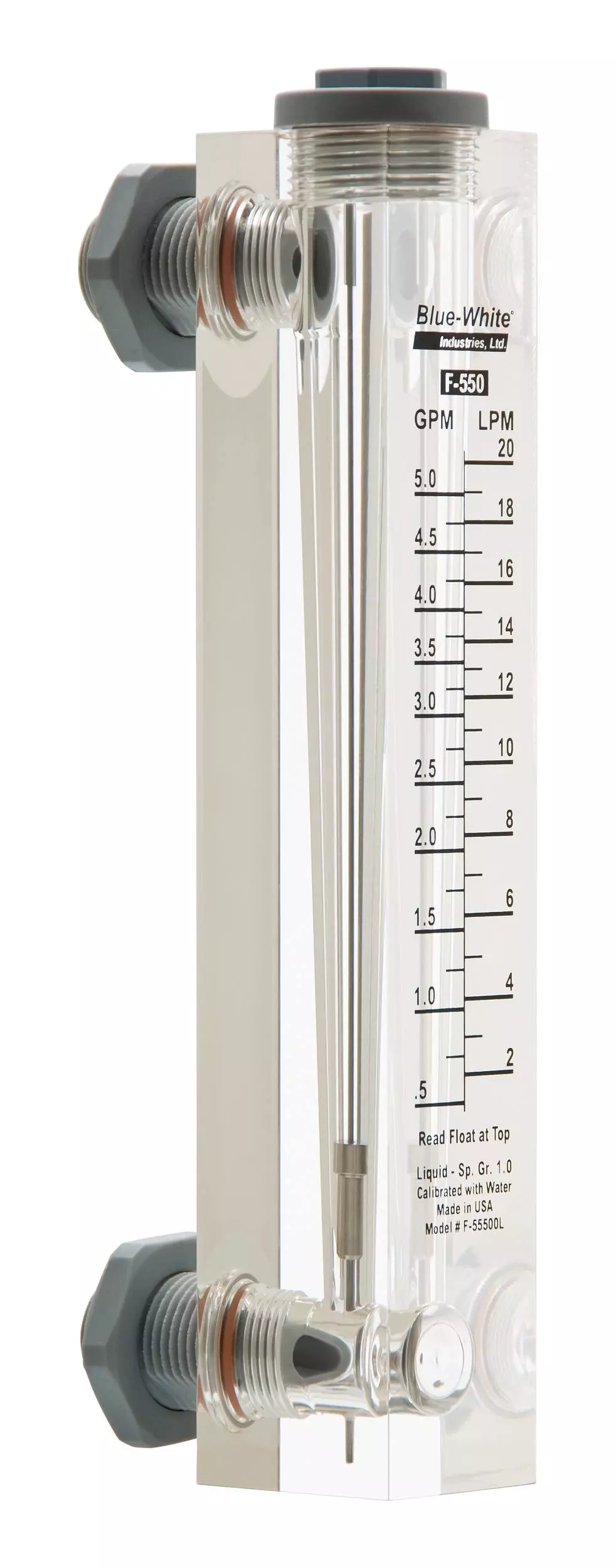

Pictures may not be actual SKU

Manual
Cut sheet
Materials of Construction

F-55015L | F-550 1-15 GPM 1.0" M/NPT

Name: F-55015L | F-550 1-15 GPM 1.0" M/NPT
Brand: Blue-White
SKU: BWI-29016001
Price: 282.2 USD
Availability: InStock

BWI | Blue-White

F-5 | F-500 Series Panel Mount Rotameter Flow Meters

F-550 | Panel Mount Flowmeters

BWI-29016001

Description

Blue-White's F-55015L flowmeter has a scale range of 1 to 15 GPM and 5 to 60 LPM with 1" - M/NPT pipe size and adapter type, #316 SS float material - Standard - Item #: 29016-001 (F)

Key Specs

Mechanical Connections

1" M/NPT

Configuration

Base Model

Series

F | Variable Area Flowmeters

Model

55 | Acrylic Panel Mount Flowmeter

Setting

Size

015 | 1 to 15 GPM (5 to 60 LPM)

Construction

Installation

L | Non-Adjustable - 316 Stainless steel rod

Connections

Adapter

_ | Standard

Available to Order

Ships from PA - FL - OH - TX - OR

Typically ships within [ 12 ] days

24/7 Sales & Support 484-544-0506

$282.20 Configured Price

Quantity:

− +

Overview
Tech Specs
Materials
Support Docs
Dimensions
SKU List

Headline

F550 Acrylic Flow Meter

Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
Acceptable for outdoor installations (direct sunlight okay)

Features & Benefits

Key Features

Construction

Durable, highly polished, one piece meter body
Annealed for added strength and chemical resistance
316 stainless, PTFE or Hastelloy floats and float guides
Bulkhead nuts attach directly to inside panel

Operation

Direct reading permanent scale
White back reflector for easy reading
Optional adjustable flow control with needle-type adjustment valve

Installation

Acceptable for outdoor installations
Suitable for direct sunlight exposure

Chemical Compatibility

Dimensional drawings

Model #

Reference Dimensions

Model #	I A	B	C	D	E	Mount Hole
F-55250L (1/4")	7-1/4"	2-1/2"	1-1/16"	5-5/8"	1-1/4"	9/16"
F-55375L (3/8")	8-3/8"	2-3/4"	1-11/32"	6-1/2"	1-1/2"	11/16"
F-55376L (3/8")	8-3/8"	2-3/4"	1-11/32"	6-1/2"	1-1/2"	11/16"
F-55500L (1/2")	8-3/8"	2-3/4"	1-11/32"	6-1/2"	1-1/2"	718"
F-55750L (3/4")	9"	3-3/4"	1-1/2"	6-1/2"	1-3/4"	1-1/16"
F-55005L 1"	10-5/8"	4"	1-3/4"	8"	2"	1-21/64"
F-55010L (1")	10-5/8"	4"	1-3/4"	8"	2"	1-21/64"
F-55015L (1")	10-5/8"	4"	1-3/4"	8"	2"	1-21/64"
F-55200L (1")	10-5/8"	4"	1-3/4"	8"	2"	1-21/64"

Alternate configurations

SKU	Description	List price	-
BWI-29001001	F-55250L \| F-550 0.025-.25 GPM 1/4 M/NPT	$175.93	BWI-29001001 Detail
BWI-29002001	F-55375L \| F-550 0.1-1 GPM 0.37" M/NPT	$175.93	BWI-29002001 Detail
BWI-29003001	F-55376L \| F-550 0.2-2 GPM 0.37" M/NPT	$175.93	BWI-29003001 Detail
BWI-29003003	F-55376L-8 \| F-550 0.2-2 GPM 0.50" M/NPT	$175.93	BWI-29003003 Detail
BWI-29005001	F-55500L \| F-550 0.5-5 GPM 0.50" M/NPT	$175.93	BWI-29005001 Detail
BWI-29008001	F-55750L \| F-550 1-10 GPM 0.75" M/NPT	$211.36	BWI-29008001 Detail
BWI-29008005	F-55750L-8 \| F-550 1-10 GPM 0.50" M/NPT	$211.36	BWI-29008005 Detail
BWI-29013005	F-55005L \| F-550 1-5 GPM 1.0" M/NPT	$282.20	BWI-29013005 Detail
BWI-29014001	F-55200L \| F-550 2-20 GPM 1.0" M/NPT	$282.20	BWI-29014001 Detail
BWI-29014003	F-55200L-12 \| F-550 2-20 GPM 0.75" M/NPT	$281.68	BWI-29014003 Detail
BWI-29015001	F-55010L \| F-550 1-10 GPM 1.0" M/NPT	$282.20	BWI-29015001 Detail
BWI-29016003	F-55015L-12 \| F-550 1-15 GPM 0.75" M/NPT	$281.68	BWI-29016003 Detail
