Headline

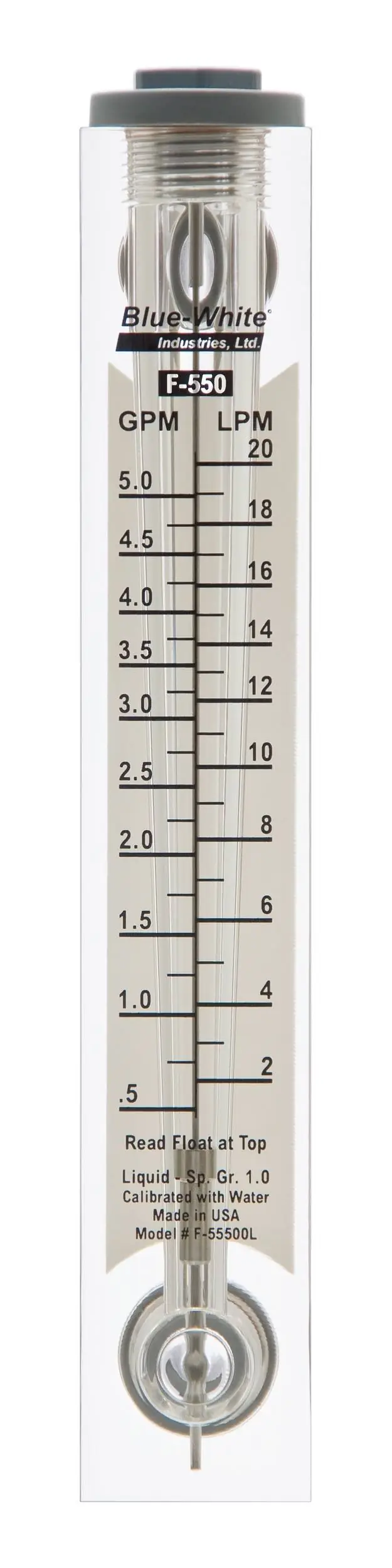

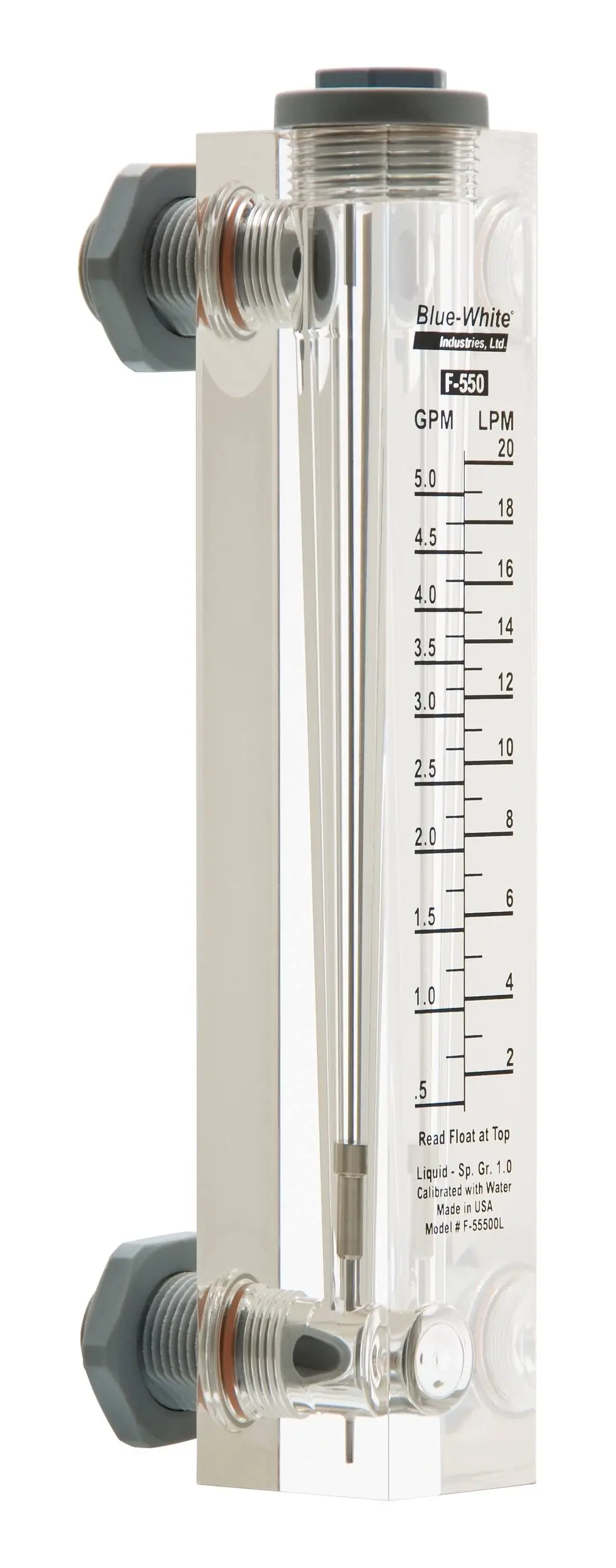

F550 Acrylic Flow Meter
- Standard 316 stainless floats and guide rods, optional Hastelloy-C for more corrosive environments.
- Acceptable for outdoor installations (direct sunlight okay)
Features & Benefits
- Durable, highly polished, one piece meter body.
- Annealed for added strength and chemical resistance.
- Acceptable for outdoor installations (acceptable in direct sunlight)
- Bulkhead nuts attach directly to inside panel.
- Optional adjustable flow control: needle-type adjustment valve.
- Direct reading permanent scale.
- White back reflector for easy reading.
- 316 stainless, PTFE or Hastelloy floats and float guides.
Additional Notes
Specifications
| Spec | Rated Value |
|---|---|
| Max. Working Pressure: | 250 psig (17.2 bar) @ 70° F (21° C) |
| Max. Fluid Temperature: | 200° F (93° C) @ 0 PSI |
| Full Scale Accuracy: | +/- 5% |
| Meter Body Material: | Machined Acrylic |
| Adapter Material: | Polypropylene |
| Guide Rod Material: | 316 SS or Hastelloy C-276 |
| O-ring Material: | FKM (Optional EP) |
| Approx. Shipping Weight: | 2 lb. (0.907 kg) |
Adapter Options:
- 1/4″, 3/8″, 3/4″, 1″ Male NPT
-
1/2″ Hose Barb
What’s Included:
- Flowmeter x1
- Instruction Manual
Dimensional drawings
Reference Dimensions
| Model # | I A | B | C | D | E | Mount Hole |
|---|---|---|---|---|---|---|
| F-55250L (1/4") | 7-1/4" | 2-1/2" | 1-1/16" | 5-5/8" | 1-1/4" | 9/16" |
| F-55375L (3/8") | 8-3/8" | 2-3/4" | 1-11/32" | 6-1/2" | 1-1/2" | 11/16" |
| F-55376L (3/8") | 8-3/8" | 2-3/4" | 1-11/32" | 6-1/2" | 1-1/2" | 11/16" |
| F-55500L (1/2") | 8-3/8" | 2-3/4" | 1-11/32" | 6-1/2" | 1-1/2" | 718" |
| F-55750L (3/4") | 9" | 3-3/4" | 1-1/2" | 6-1/2" | 1-3/4" | 1-1/16" |
| F-55005L 1" | 10-5/8" | 4" | 1-3/4" | 8" | 2" | 1-21/64" |
| F-55010L (1") | 10-5/8" | 4" | 1-3/4" | 8" | 2" | 1-21/64" |
| F-55015L (1") | 10-5/8" | 4" | 1-3/4" | 8" | 2" | 1-21/64" |
| F-55200L (1") | 10-5/8" | 4" | 1-3/4" | 8" | 2" | 1-21/64" |
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| BWI-29001001 | F-55250L | F-550 0.025-.25 GPM 1/4 M/NPT | $156.45 | |
| BWI-29002001 | F-55375L | F-550 0.1-1 GPM 0.37" M/NPT | $156.45 | |
| BWI-29003001 | F-55376L | F-550 0.2-2 GPM 0.37" M/NPT | $156.45 | |
| BWI-29003003 | F-55376L-8 | F-550 0.2-2 GPM 0.50" M/NPT | $156.45 | |
| BWI-29005001 | F-55500L | F-550 0.5-5 GPM 0.50" M/NPT | $156.45 | |
| BWI-29008001 | F-55750L | F-550 1-10 GPM 0.75" M/NPT | $187.95 | |
| BWI-29008005 | F-55750L-8 | F-550 1-10 GPM 0.50" M/NPT | $187.95 | |
| BWI-29013005 | F-55005L | F-550 1-5 GPM 1.0" M/NPT | $250.95 | |
| BWI-29014001 | F-55200L | F-550 2-20 GPM 1.0" M/NPT | $250.95 | |
| BWI-29014003 | F-55200L-12 | F-550 2-20 GPM 0.75" M/NPT | $250.95 | |
| BWI-29015001 | F-55010L | F-550 1-10 GPM 1.0" M/NPT | $250.95 | |
| BWI-29016001 | F-55015L | F-550 1-15 GPM 1.0" M/NPT | $250.95 | |
| BWI-29016003 | F-55015L-12 | F-550 1-15 GPM 0.75" M/NPT | $250.95 |
