Headline

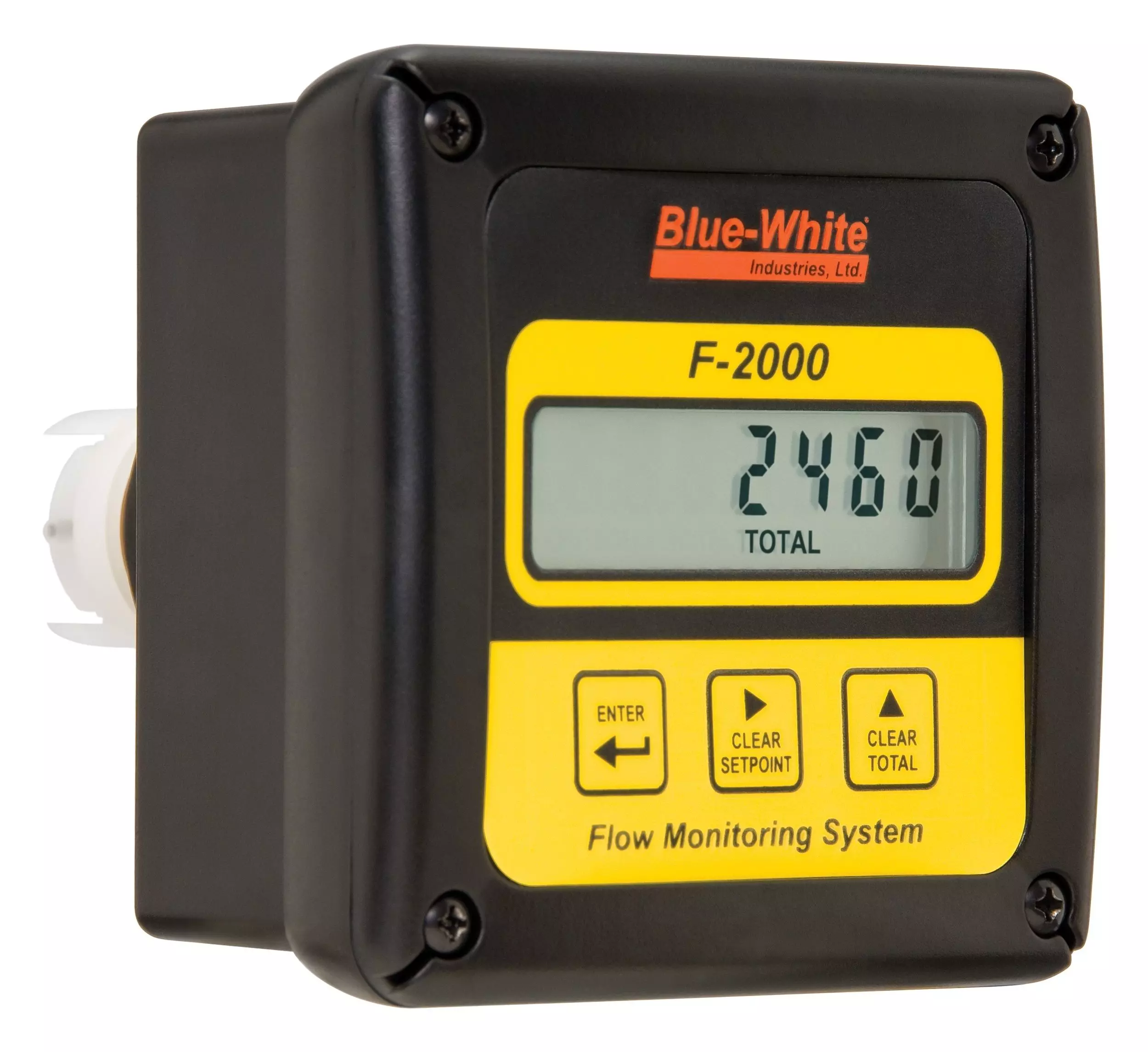

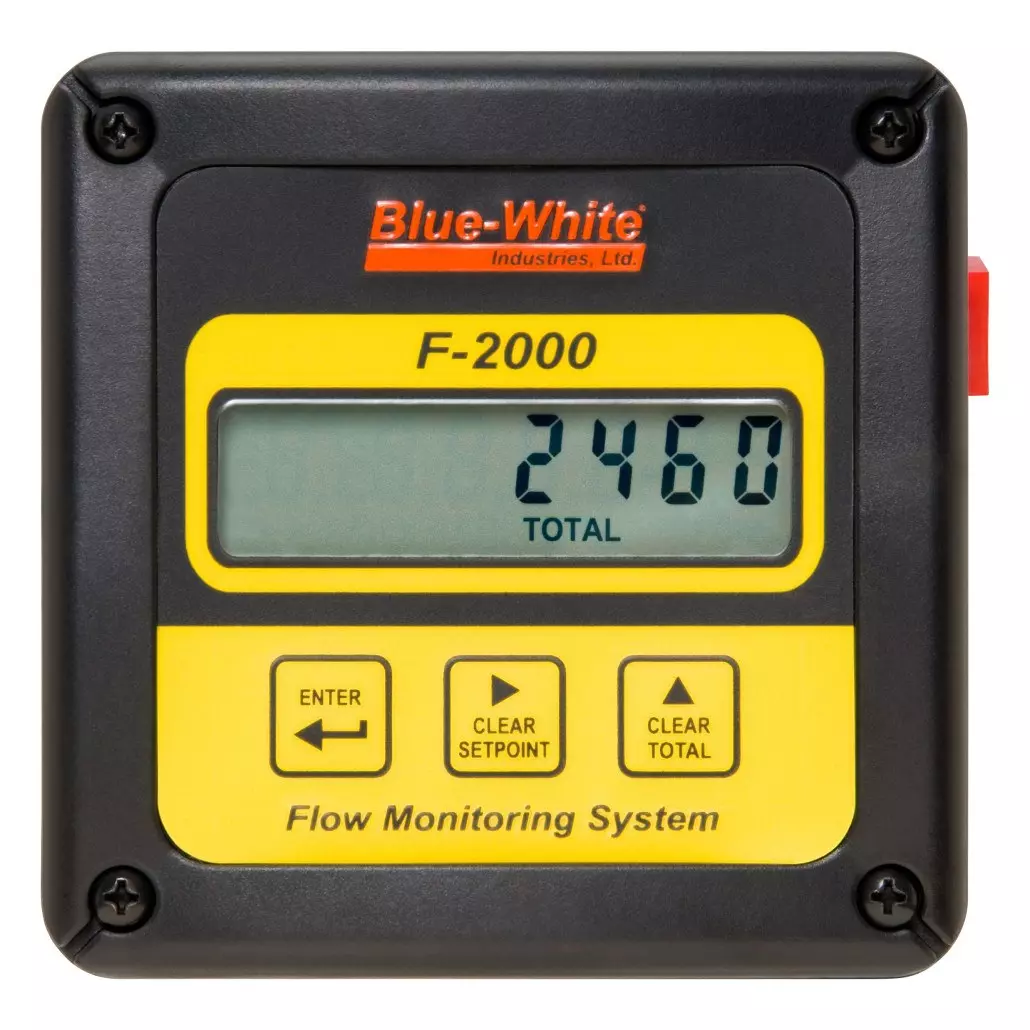

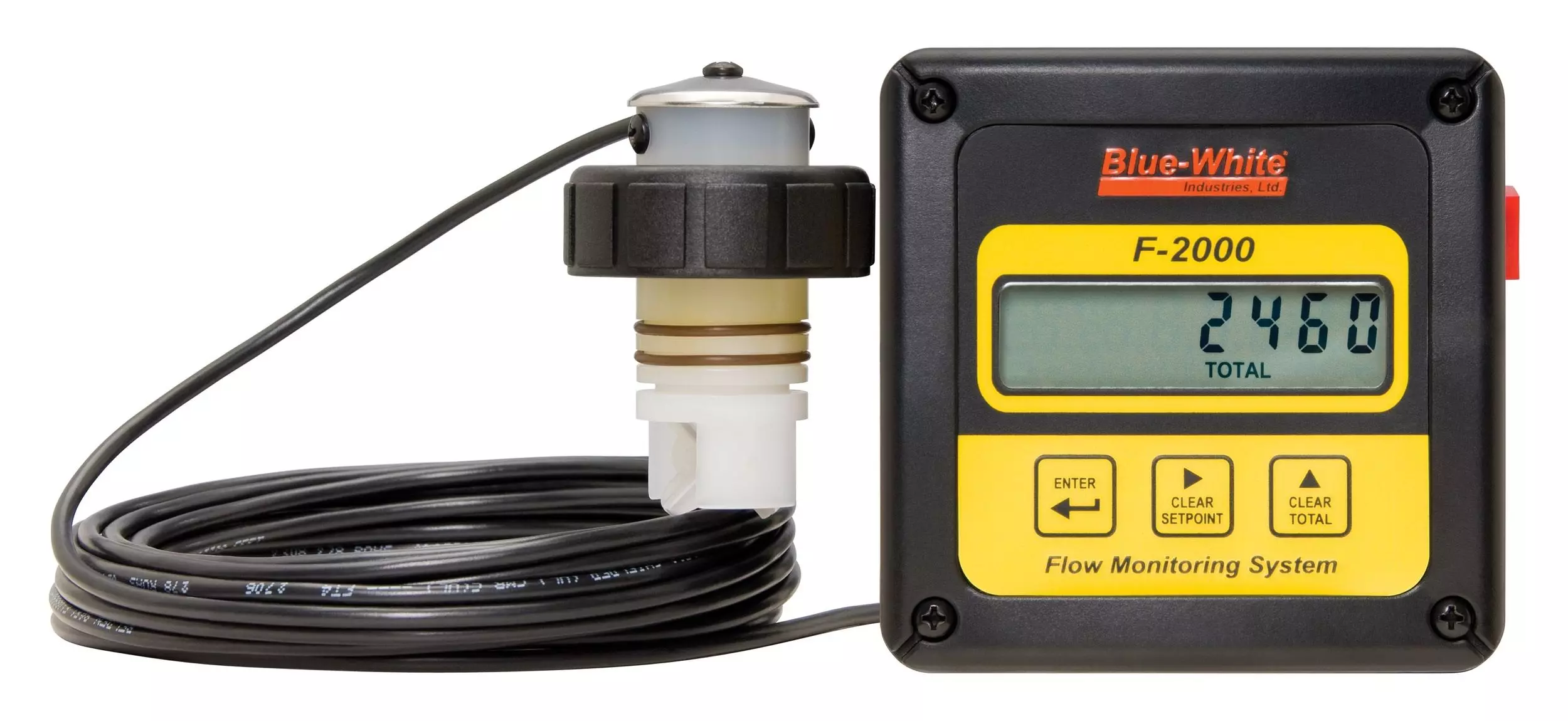

F-2000RT DIGITAL PADDLWHEEL FLOWMETER
Accurate, easy to install and operate.
RT = Rate and Totalizer Transformer or battery operated
Flow Range: 0.4 - 8000 GPM (1 - 27000 LPM) Pipe Sizes: ⅜", up to 12"
Sensor, Pipe, Panel or Wall mount options available. Up to 200ft. range.
Features & Benefits
Key Features
Display & Controls
- Easy to read 8-digit LCD display
- Up to 4 decimal positions
- Flow rate and total flow display
- Front panel security lockout
- Disable option for total reset function
Power Options
- AC/DC transformer powered
- Battery operation (RT models only)
- Uses 4 AA batteries
Construction & Installation
- Weather resistant ABS enclosure
- NEMA 4X rating
- Panel mounting option
- Includes 25ft cable
- Standard pipe fitting included
Configuration
- Factory programmed
- Includes calibration certificate
- Custom calibration units available
- Contact factory for options
Important Notes
- LCD display not recommended for direct sunlight applications
Alternate configurations
| SKU | Description | List price | - |
|---|---|---|---|
| BWI-44000006 | RTSB | F-2000 RT SENSOR/DISPLAY BATTERY POWERED | $980.05 | |
| BWI-44000007 | RTS1 | F-2000 RT SENSOR/DISPLAY 115V SENSOR MOUNT | $980.05 | |
| BWI-44000008 | RTS2 | F-2000 RT SENSOR/DISPLAY 220V SENSOR MOUNT | $980.05 | |
| BWI-44000013 | RTSX | F-2000 RT SENSOR/DISPLAY NO POWER SUPPLY | $980.05 | |
| BWI-44000014 | RTPB | F-2000 RTP SENSOR/DISPLAY BATTERY POWERED | $980.05 | |
| BWI-44000015 | RTP1 | F-2000 RT SENSOR/DISPLAY 115V PANEL MOUNT | $980.05 | |
| BWI-44000016 | RTP2 | F-2000 RT SENSOR/DISPLAY 220V PANEL MOUNT | $980.05 | |
| BWI-44100138 | RTSB10ATLM1 | F-2000 RT BATTERY 1.0" SLIP PVC TEE LPM | $1,096.94 | |
| BWI-44100199 | RTS110ATGM1 | F-2000 RT 115V 1.0" SLIP PVC TEE GPM | $1,096.94 | |
| BWI-44100280 | RTPB10MB1LM1 | F-2000 RTP BATTERY 1.0" M/BSPT LPM STD POLYPRO | $1,096.94 | |
| BWI-44100398 | RTSB10ATGM1 | F-2000 RT BATTERY 1.0" SLIP PVC TEE GPM | $1,096.94 | |
| BWI-44100600 | RTSB10M1GM1 | F-2000 RT BATTERY 1.0" M/NPT GPM STD POLYPRO | $1,096.94 | |
| BWI-44100606 | RTS110M1GM1 | F-2000 RT 115V 1.0" M/NPT GPM STD POLYPRO | $1,096.94 | |
| BWI-44100610 | RTSX10M1GM1 | F-2000 RT 1.0" M/NPT GPM STD POLYPRO NO POWER | $1,096.94 | |
| BWI-44100624 | RTPB10M1GM1 | F-2000 RTP BATTERY 1.0" M/NPT GPM STD POLYPRO | $1,096.94 |
