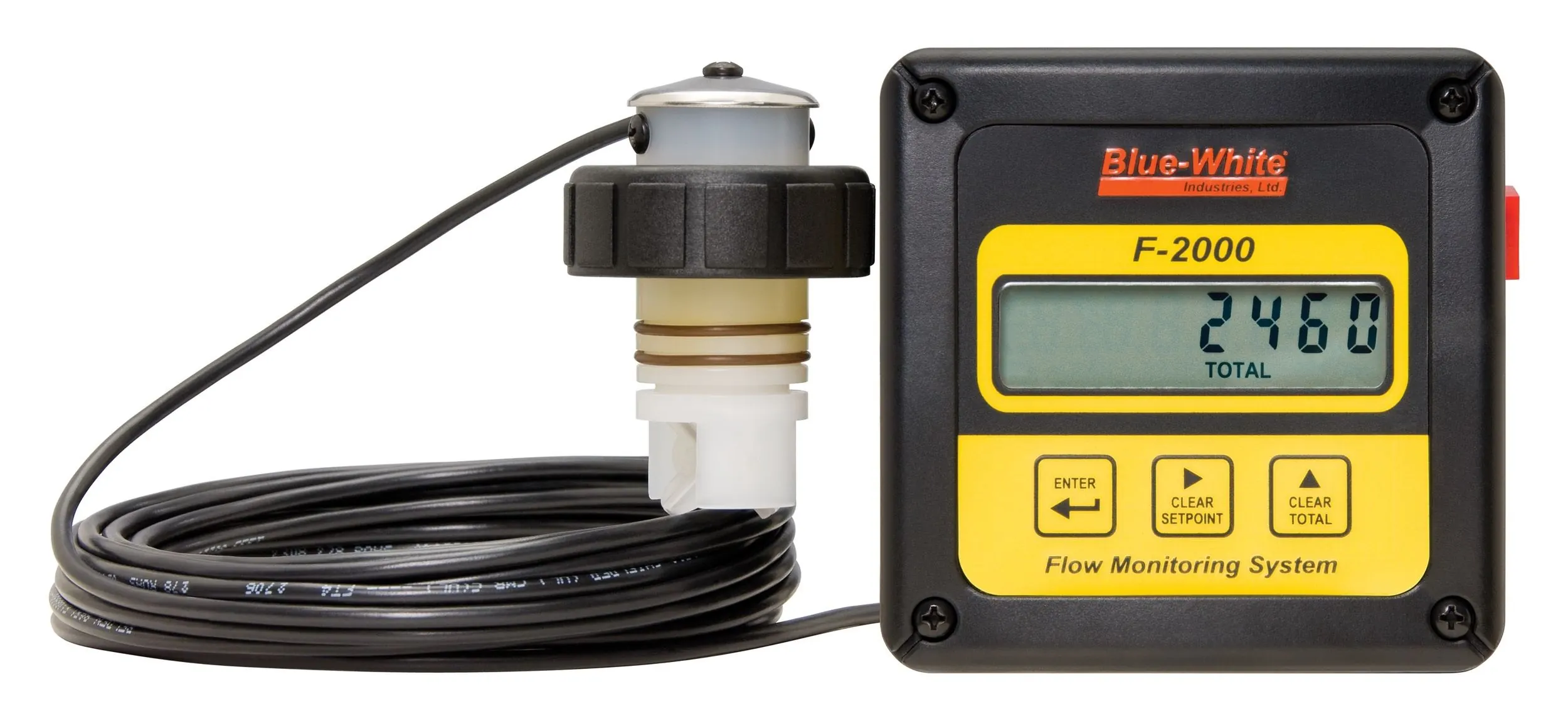

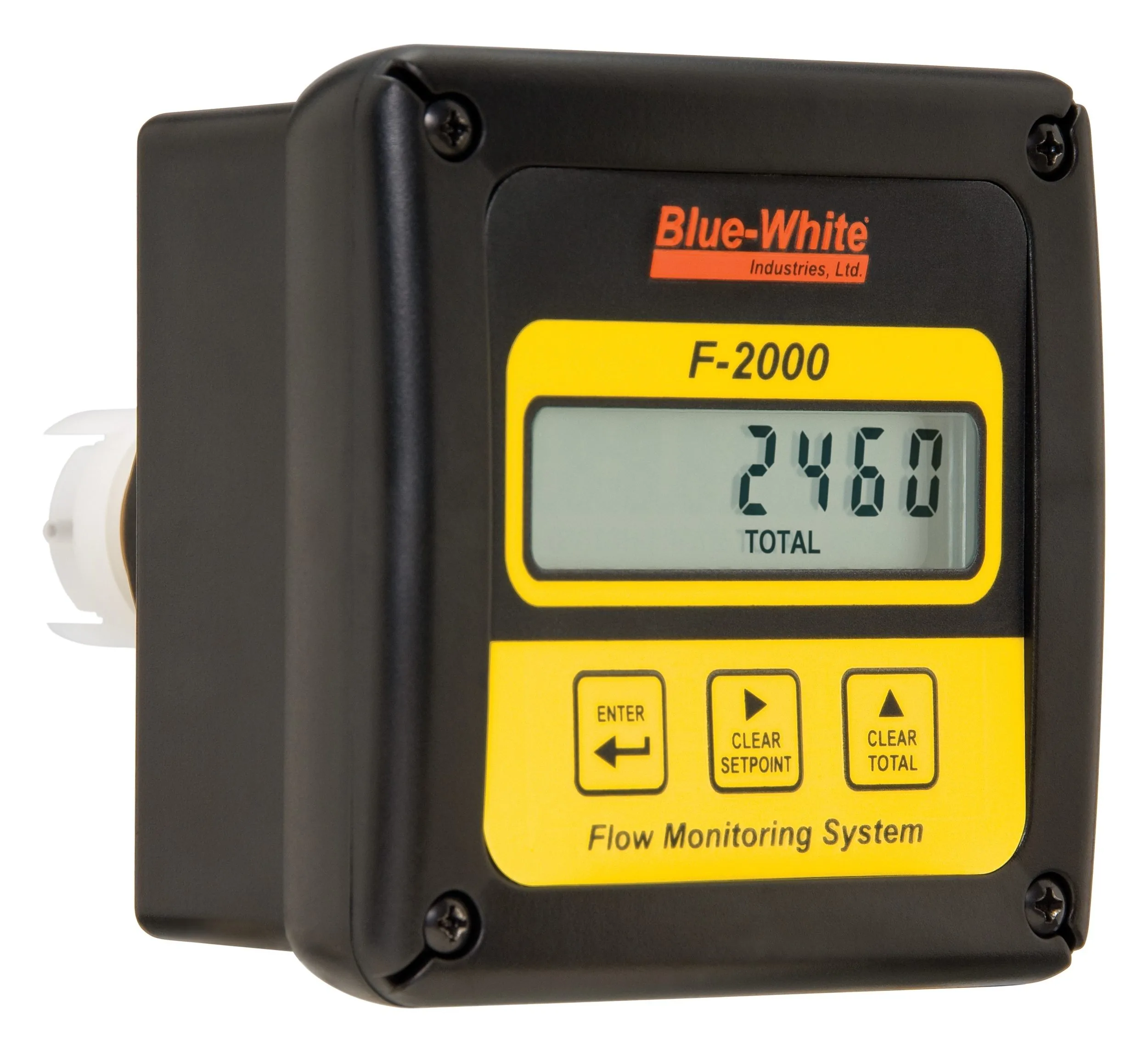

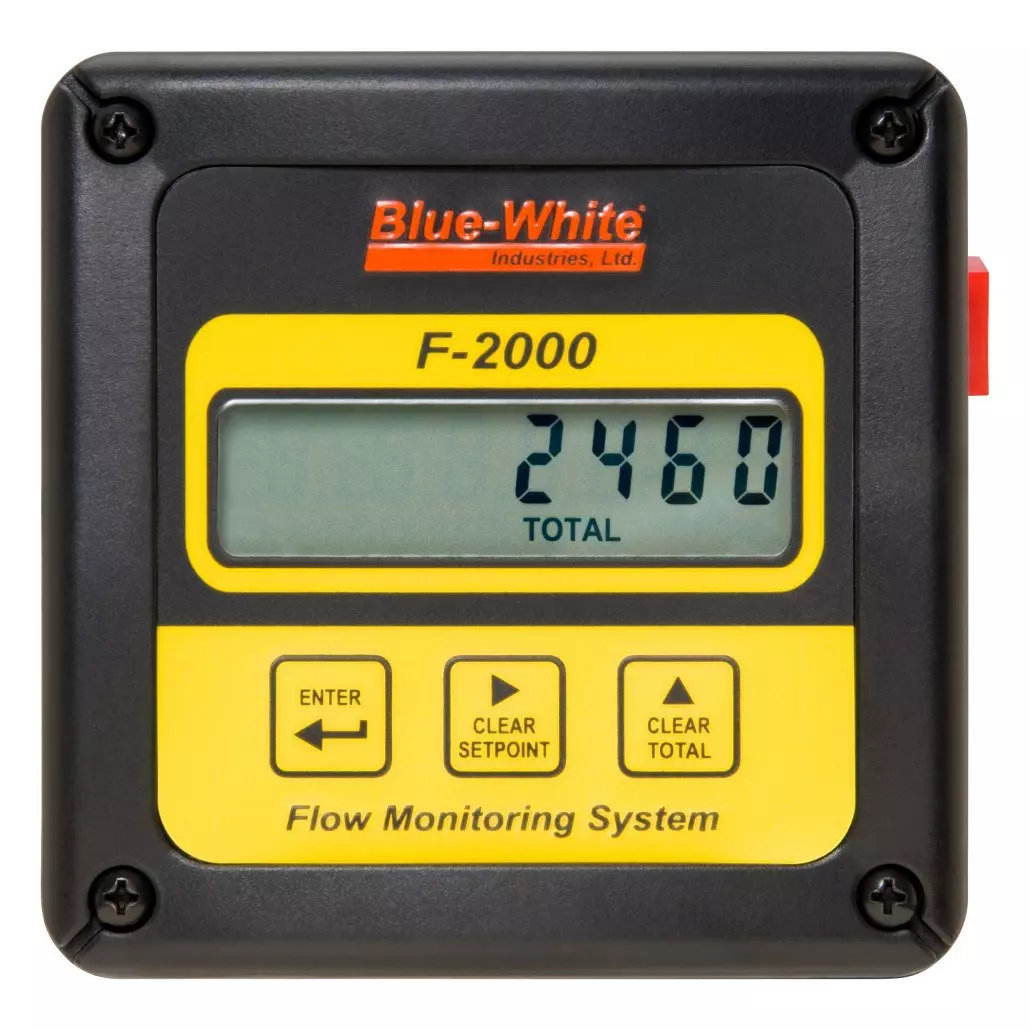

F-2000RT DIGITAL PADDLWHEEL FLOWMETER
Accurate, easy to install and operate.
RT = Rate and Totalizer Transformer or battery operated
Flow Range: 0.4 - 8000 GPM (1 - 27000 LPM) Pipe Sizes: ⅜", up to 12"
Sensor, Pipe, Panel or Wall mount options available. Up to 200ft. range.
- Easy to read 8 digit LCD, up to 4 decimal positions
- Flow rate and Total flow display
- AC/DC transformer or battery operated (RT models only). 4 AA batteries
- Factory programmed with calibration certificate
- Front panel security lockout
- Total reset function can be disabled
- Weather resistant ABS enclosure. NEMA 4X
- Panel mounting option available (ships with 25ft of cable)
- Custom calibration units available. Contact the factory.
- Standard models ship with pipe fitting
Note: LCD is not recommended for direct sunlight applications.
F-2000 Model RT
The F-2000 model RT shall be capable of displaying the rate of flow and the total accumulated flow. The flow rate and total flow display screens shall be accessed alternately by pressing the front panel tactile switches. The accumulated flow shall be reset zero by pressing the front panel tactile switch while the total flow amount is displayed. The reset function shall be enabled or disabled in the programming mode. The battery saving mode shall be enabled or disabled in the programming mode. Front panel access to the programming mode shall be disabled by adjusting a jumper switch located inside the enclosure. Metering accuracy shall be +/- 1% of the full scale flow rate range.
| SKU | Description | List price | - |
|---|---|---|---|
| BWI-44000006 | RTSB | F-2000 RT SENSOR/DISPLAY BATTERY POWERED | $871.50 | |
| BWI-44000007 | RTS1 | F-2000 RT SENSOR/DISPLAY 115V SENSOR MOUNT | $871.50 | |
| BWI-44000008 | RTS2 | F-2000 RT SENSOR/DISPLAY 220V SENSOR MOUNT | $871.50 | |
| BWI-44000013 | RTSX | F-2000 RT SENSOR/DISPLAY NO POWER SUPPLY | $871.50 | |
| BWI-44000014 | RTPB | F-2000 RTP SENSOR/DISPLAY BATTERY POWERED | $871.50 | |
| BWI-44000015 | RTP1 | F-2000 RT SENSOR/DISPLAY 115V PANEL MOUNT | $871.50 | |
| BWI-44000016 | RTP2 | F-2000 RT SENSOR/DISPLAY 220V PANEL MOUNT | $871.50 | |
| BWI-44100199 | RTS110ATGM1 | F-2000 RT 115V 1.0" SLIP PVC TEE GPM | $975.45 | |
| BWI-44100280 | RTPB10MB1LM1 | F-2000 RTP BATTERY 1.0" M/BSPT LPM STD POLYPRO | $975.45 | |
| BWI-44100398 | RTSB10ATGM1 | F-2000 RT BATTERY 1.0" SLIP PVC TEE GPM | $975.45 | |
| BWI-44100600 | RTSB10M1GM1 | F-2000 RT BATTERY 1.0" M/NPT GPM STD POLYPRO | $975.45 | |
| BWI-44100602 | RTSB10M1LM1 | F-2000 RT BATTERY 1.0" M/NPT LPM STD POLYPRO | $975.45 | |
| BWI-44100606 | RTS110M1GM1 | F-2000 RT 115V 1.0" M/NPT GPM STD POLYPRO | $975.45 | |
| BWI-44100610 | RTSX10M1GM1 | F-2000 RT 1.0" M/NPT GPM STD POLYPRO NO POWER | $975.45 | |
| BWI-44100624 | RTPB10M1GM1 | F-2000 RTP BATTERY 1.0" M/NPT GPM STD POLYPRO | $975.45 |
