Headline

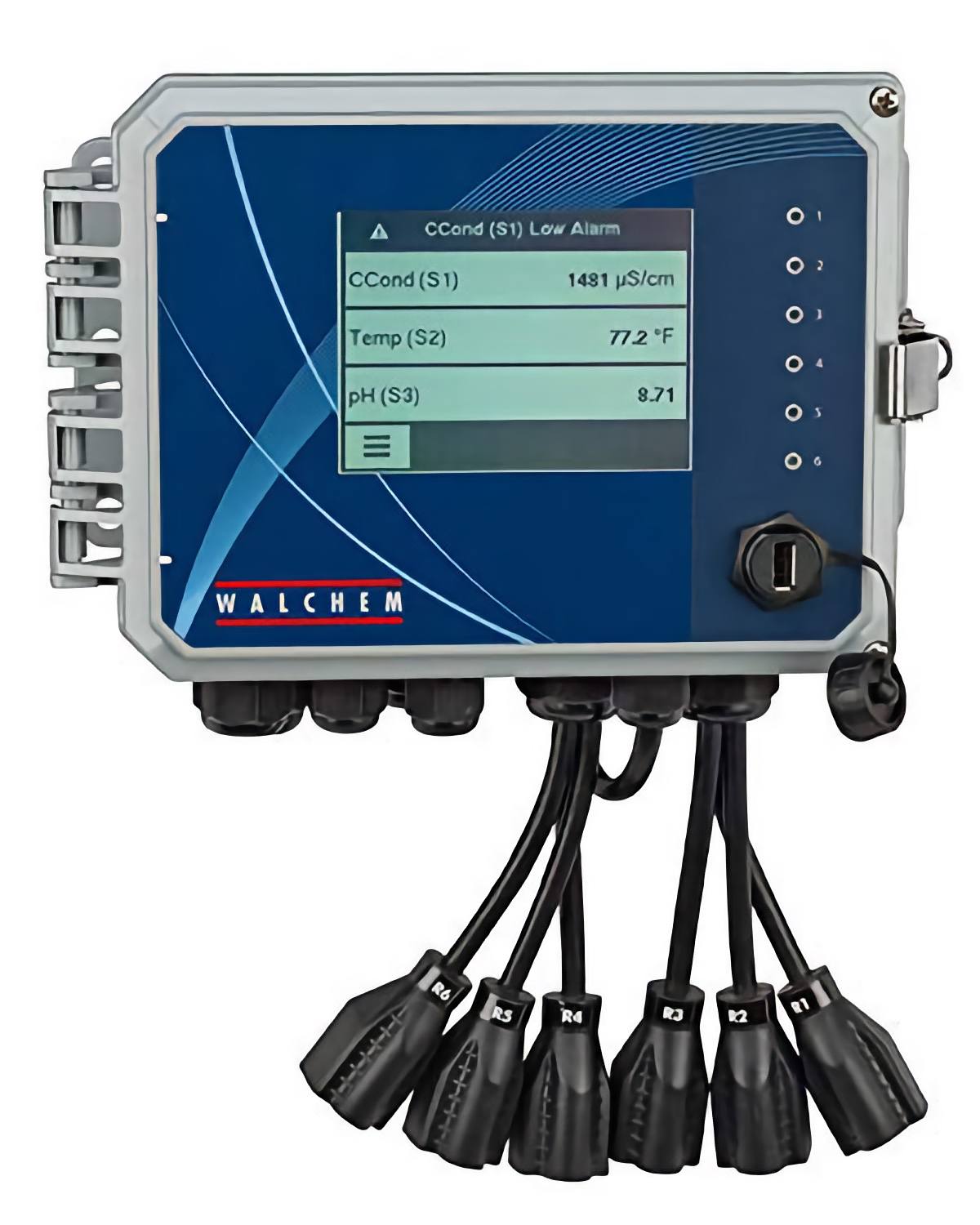

W600 Series Controllers
The W600 series provides reliable, flexible and powerful control for your electroless plating or etching process
Features & Benefits
Key Benefits
Easy Setup & Operation
- Large touchscreen display with icon-based programming
- Multiple language support for worldwide deployment
- Economical wall-mount package for easy installation
Flexible Input Options
- Two sensor input slots supporting multiple sensor types:

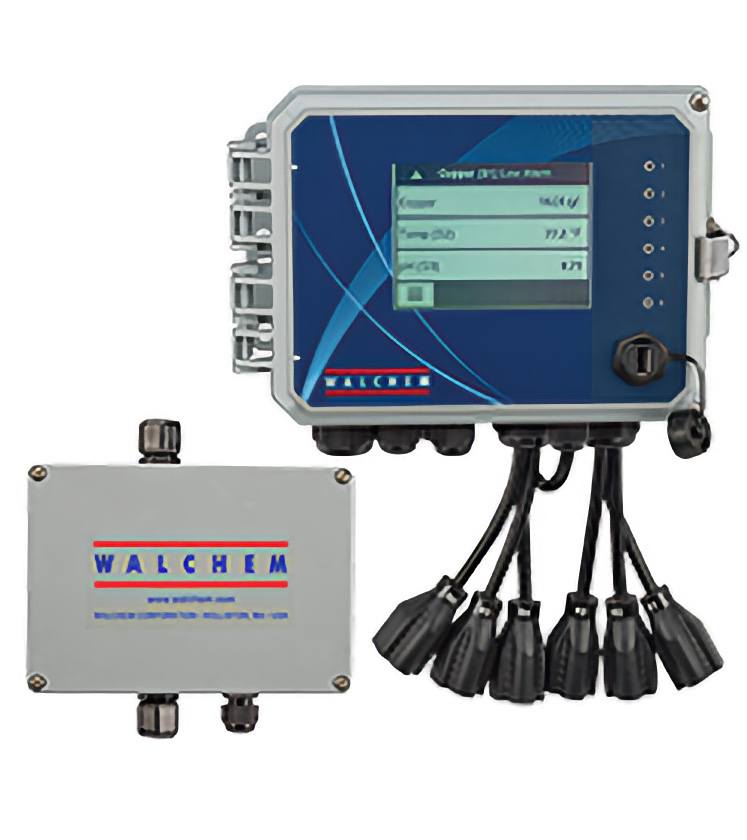

- Copper or Nickel plus pH
- Dual analog inputs (4-20 mA transmitter)
- Universal analytical sensor card (pH/ORP, conductivity, disinfection)
- Combination analog and analytical sensor input
- Two Virtual Inputs calculated from real inputs or constants
Advanced Control Capabilities
- Six control outputs for expanded applications
- Comprehensive relay function options:
- On/Off Setpoint
- Plating Control with metal turnover totalization
- Plating Follow activation
- Time Proportional Control
- Proportional Control (4-20mA/pulse solid state opto outputs)
- In-Range or Out-of-Range activation
- Probe wash

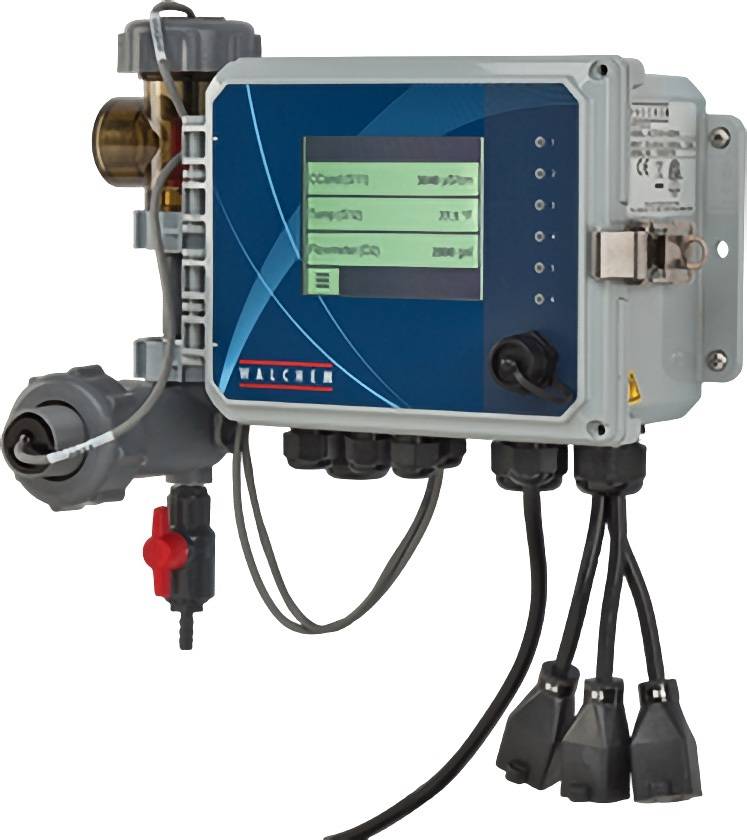

- Flow Timer
- Alarm
- Spike Set Point
- Lead/Lag control up to 6 relays
Monitoring & Communication
- On-screen and web page graphing
- Sensor values
- Control output status
- Advanced data management
- Comprehensive datalogging
- Automated email reporting:
- Alarm messages
- Datalog
- Graphs
- System Summary reports
- Network connectivity
- Ethernet remote access
- Internet/LAN compatibility
- Modbus/TCP and BACnet support
