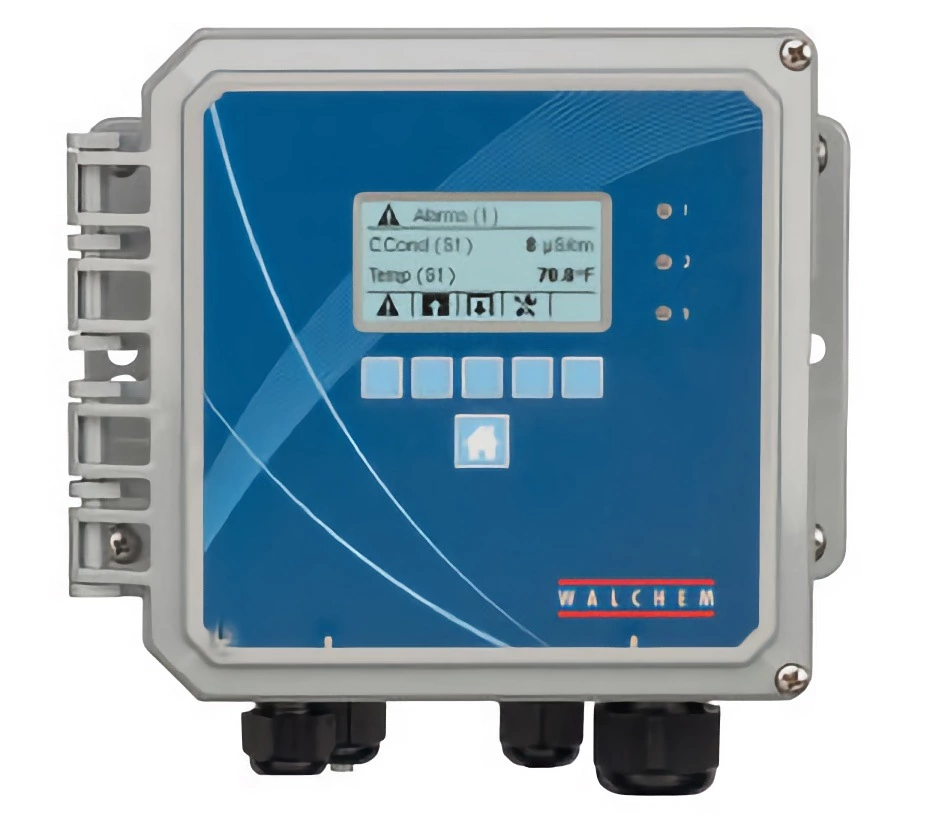

WCTW100P-A-H | W100 Cooling Tower Controller - 3 Powered - USA - 1x 4-20mA Out - Electrodeless cond on Panel

Pictures may not be actual SKU

WCTW100P-A-H | W100 Cooling Tower Controller - 3 Powered - USA - 1x 4-20mA Out - Electrodeless cond on Panel

Name: WCTW100P-A-H | W100 Cooling Tower Controller - 3 Powered - USA - 1x 4-20mA Out - Electrodeless cond on Panel
Brand: Walchem Controllers
SKU: WAL-WCTW100PAH
Price: 1705.2 USD
Availability: InStock

WAL | Walchem Controllers

W100 | W100 Series Controllers

WCTW100 | W100 - Bleed & Feed Cooling Tower Controllers

WAL-WCTW100PAH

Description

Walchem's WCTW-100P-A-H W100 Cooling Tower Controller - Feed & Bleed with 3 Powered - Prewired - USA relays/wiring, One 4-20mA Out analog output card, and Electrodeless cond on Panel sensor. Xref Model Number WCTW100PA-H

Configuration

Base Model

Model

WCTW | Bleed & Feed Cooling Tower Controllers

Power Option

Relays

100 | 3 powered relays

Wiring

P | Prewired - US 115V - NEMA 5/15 - Cord & Pigtails

Configuration

I/O

A | One isolated analog (4-20 ma) output

Sensors

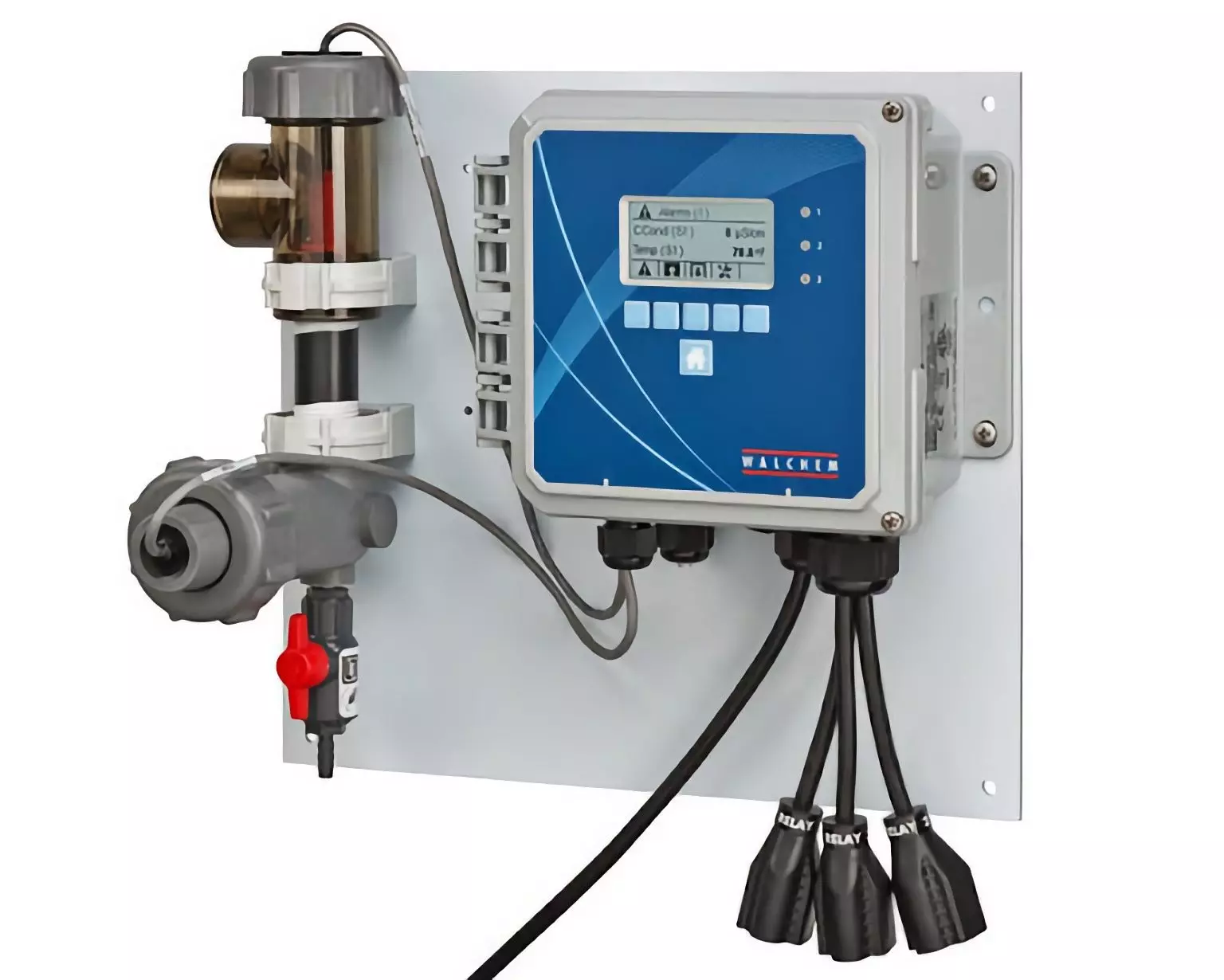

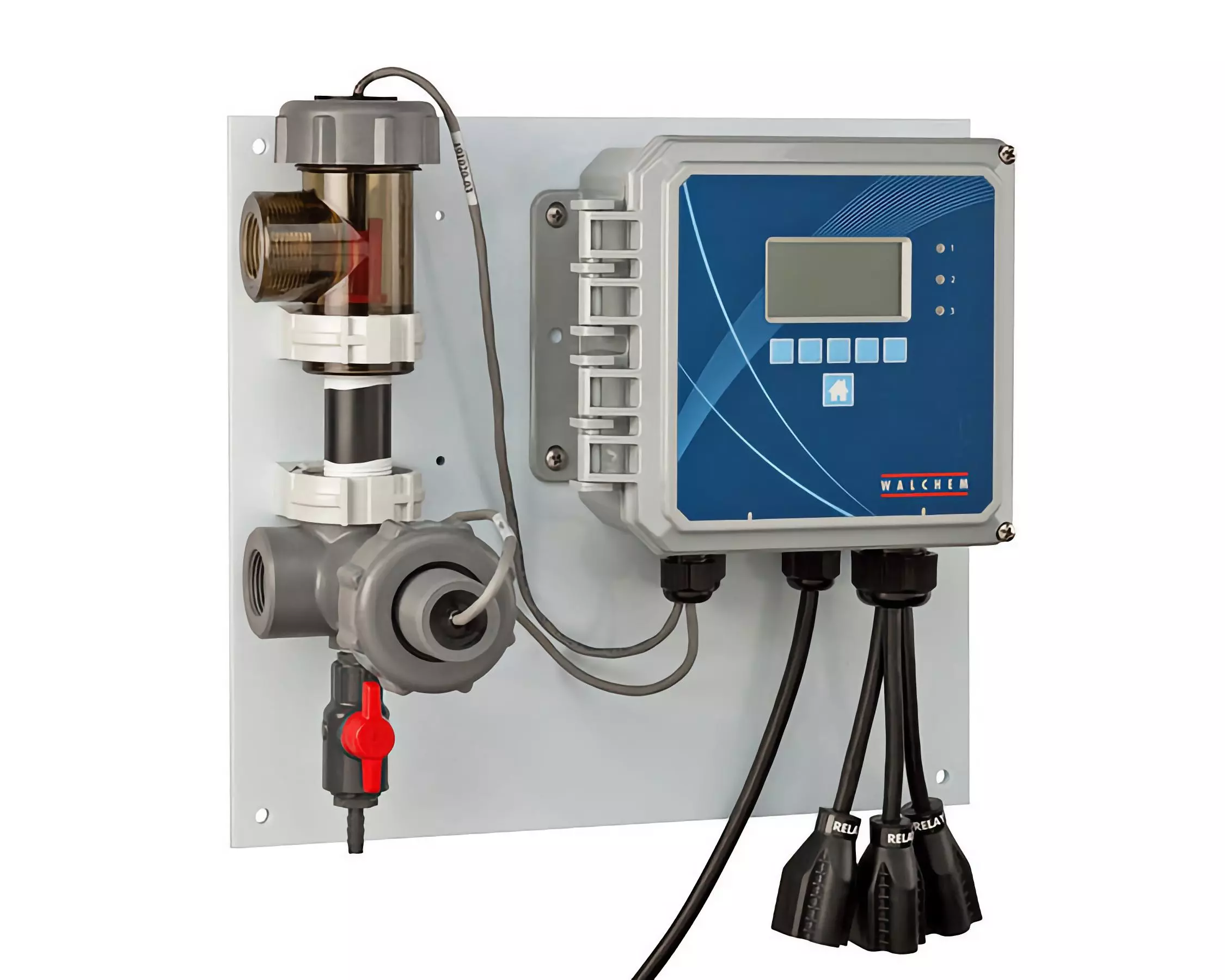

H | See Model Codes // Electrodeless conductivity + Flow Switch manifold on panel (CT)

Available to Order

Ships from PA - GA - FL - OH - TX

Typically ships within [ 10 ] days

24/7 Sales & Support 484-544-0506

$1,705.20 Configured Price

Quantity:

− +

Overview
Support Docs
Dimensions
SKU List

Headline

W100 Series Water Treatment Controllers

The W100W series provide an economical and reliable way to keep your cooling tower, boiler, or condensate water treatment program under control.

Features & Benefits

Key Benefits

Large display with icon based programming makes setup easy
Universal sensor input provides extraordinary flexibility; the same controller can be used with almost any type of sensor needed
Multiple language support allows simple setup no matter where your business takes you
The third control relay allows the controller to be used in more places than other entry level products

Relay Functions

Complete Flexibility Options

Bleed on conductivity
Bleed time proportional to makeup water volume
Boiler Blowdown on conductivity using intermittent sampling
Feed in proportion to bleed time
Feed time proportional to makeup water volume
Feed as a percentage of elapsed time
Biocide timer with pre-bleed and post-feed bleed lockout options

Integration Features

Optional analog (4-20 mA) output for:
- Recording
- Datalogging
- Connection to building energy management systems

Manual

W100 CT Manual

Model Codes

W100 CT Model Code Matrix

Datasheet

W100 CT Datasheet

Brochure

Walchem Controller Brochure

Support Videos

https://www.youtube.com

Support URL

https://www.walchem.com

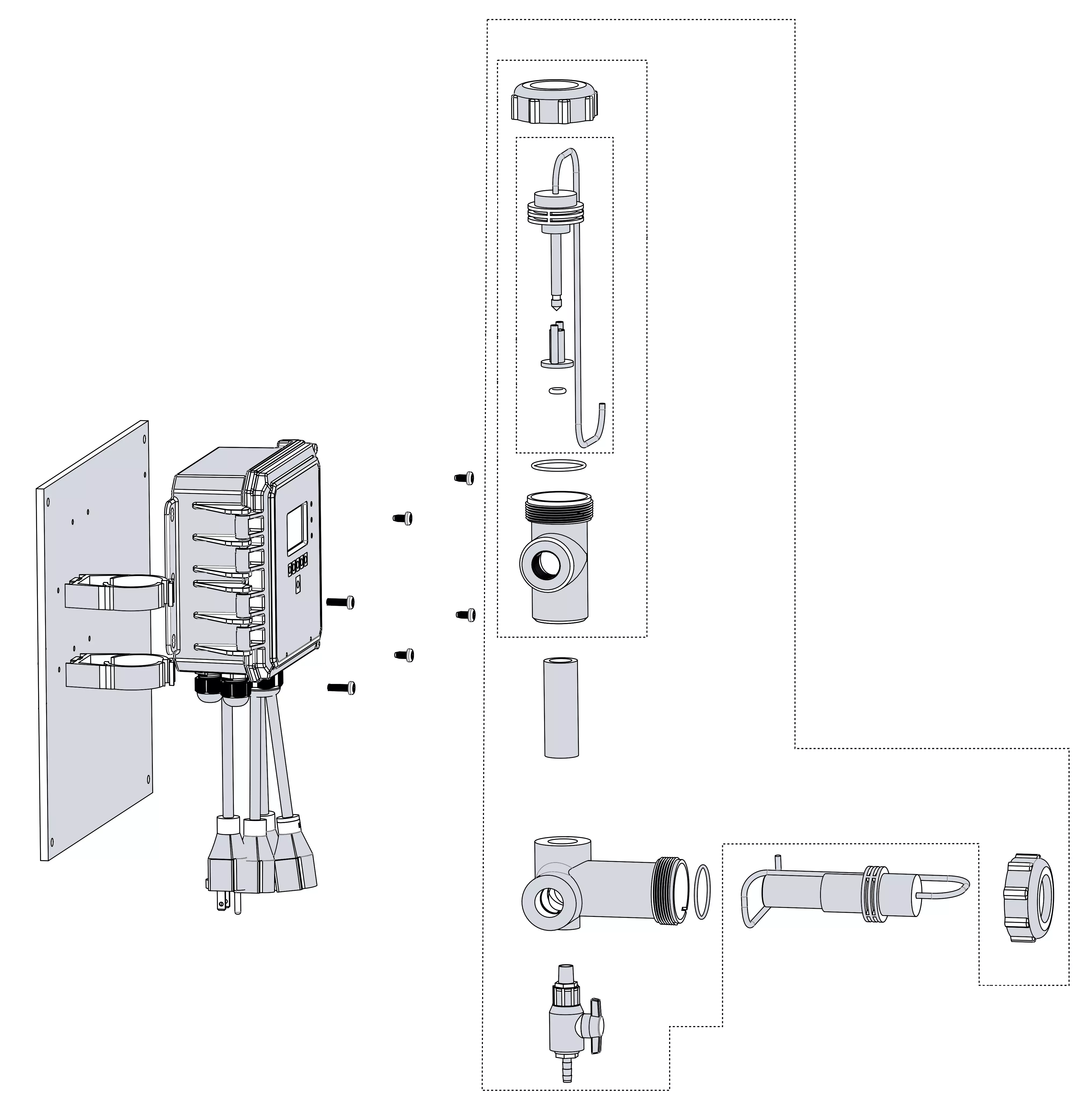

Dimensional drawings

Reference Dimensions

Key	A	B	C	D	E	F	G	H	I
WCTW	+/- 0.1", 2.5 mm	+/- 0.1", 2.5 mm	+/- 0.1", 2.5 mm	+/- 0.1", 2.5 mm	+/- 0.1", 2.5 mm	+/- 0.3", 8 mm	+/- 0.3", 8 mm	+/- 0.3", 8 mm	+/- 0.01", 0.25 mm
Sensor option H	24" - 610 mm	22.5" - 571 mm	19" - 483 mm	17.5" - 445 mm	0.75" - 19 mm	14" - 356 mm	6" - 152 mm	3" - 76 mm	0.25" - 6.35 mm
Sensor options B, F	13" - 330 mm	12" - 305 mm	11.75" - 298 mm	10.75" - 273 mm	0.5" - 12.7 mm	7" - 178 mm	2" - 51 mm	1.5" - 38 mm	0.25" - 6.35 mm
Sensor option D	22.5" - 571 mm	21.5" - 546 mm	11.75" - 298 mm	10.75" - 273 mm	0.5" - 12.7 mm	7" - 178 mm	2" - 51 mm	6" - 152 mm	0.25" - 6.35 mm

Alternate configurations

SKU	Description	List price	-
WAL-WCTW100HAA	WCTW100H-A-A \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - Conductivity w/ Tee	$993.30	WAL-WCTW100HAA Detail
WAL-WCTW100HAB	WCTW100H-A-B \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - Conductivity on Panel	$1,234.80	WAL-WCTW100HAB Detail
WAL-WCTW100HAC	WCTW100H-A-C \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - Conductivity w/ Tee - 300 psi	$1,538.25	WAL-WCTW100HAC Detail
WAL-WCTW100HAD	WCTW100H-A-D \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - Conductivity on Panel - 300 psi	$2,280.60	WAL-WCTW100HAD Detail
WAL-WCTW100HAE	WCTW100H-A-E \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - Conductivity w/ Tee - 316SS	$993.30	WAL-WCTW100HAE Detail
WAL-WCTW100HAF	WCTW100H-A-F \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - Conductivity on Panel - 316SS	$1,234.80	WAL-WCTW100HAF Detail
WAL-WCTW100HAG	WCTW100H-A-G \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - Electrodeless cond w/ Tee	$1,442.70	WAL-WCTW100HAG Detail
WAL-WCTW100HAH	WCTW100H-A-H \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - Electrodeless cond on Panel	$1,651.65	WAL-WCTW100HAH Detail
WAL-WCTW100HAN	WCTW100H-A-N \| W100 Cooling Tower Controller - 3 Powered - HW - 1x 4-20mA Out - No sensor	$823.20	WAL-WCTW100HAN Detail
WAL-WCTW100HNA	WCTW100H-N-A \| W100 Cooling Tower Controller - 3 Powered - HW - No 4-20mA Out - Conductivity w/ Tee	$833.70	WAL-WCTW100HNA Detail
WAL-WCTW100HNB	WCTW100H-N-B \| W100 Cooling Tower Controller - 3 Powered - HW - No 4-20mA Out - Conductivity on Panel	$1,075.20	WAL-WCTW100HNB Detail
WAL-WCTW100HNC	WCTW100H-N-C \| W100 Cooling Tower Controller - 3 Powered - HW - No 4-20mA Out - Conductivity w/ Tee - 300 psi	$1,379.70	WAL-WCTW100HNC Detail
WAL-WCTW100HND	WCTW100H-N-D \| W100 Cooling Tower Controller - 3 Powered - HW - No 4-20mA Out - Conductivity on Panel - 300 psi	$2,121.00	WAL-WCTW100HND Detail
WAL-WCTW100HNE	WCTW100H-N-E \| W100 Cooling Tower Controller - 3 Powered - HW - No 4-20mA Out - Conductivity w/ Tee - 316SS	$833.70	WAL-WCTW100HNE Detail
WAL-WCTW100HNF	WCTW100H-N-F \| W100 Cooling Tower Controller - 3 Powered - HW - No 4-20mA Out - Conductivity on Panel - 316SS	$1,075.20	WAL-WCTW100HNF Detail
